WIRELESS HAND-HELD REMOTE CONTROL MODELS HRC100,
HRC101, HRC200 AND HRC201 OPERATING INSTRUCTIONS
For Use With DESA Heating Products Remote Ready Log Sets
InStALLIng REmotE REcEIvER
1. Disconnect switch wires from the control valve.
Some units will have an on/off switch with
switch plate that is connected to the control
valve. other units will have a jumper wire that
will need to be removed from the control valve
(see figure 1).
2. Remove screws and switch plate as shown in
figure 1. Discard after removing.
3. Install remote receiver unit onto gas log heater
base using clips (2) and insulating washers
provided.
4. Push clips firmly into place (see Figure 2).
5. Connect wires as shown in figure 3.
Note: On yellow flame models, reuse provided
phillips head screws and reinstall heat shield over
receiving unit.
Front
Screw
ON/OFF Switch with
Switch Plate
Jumper Wire

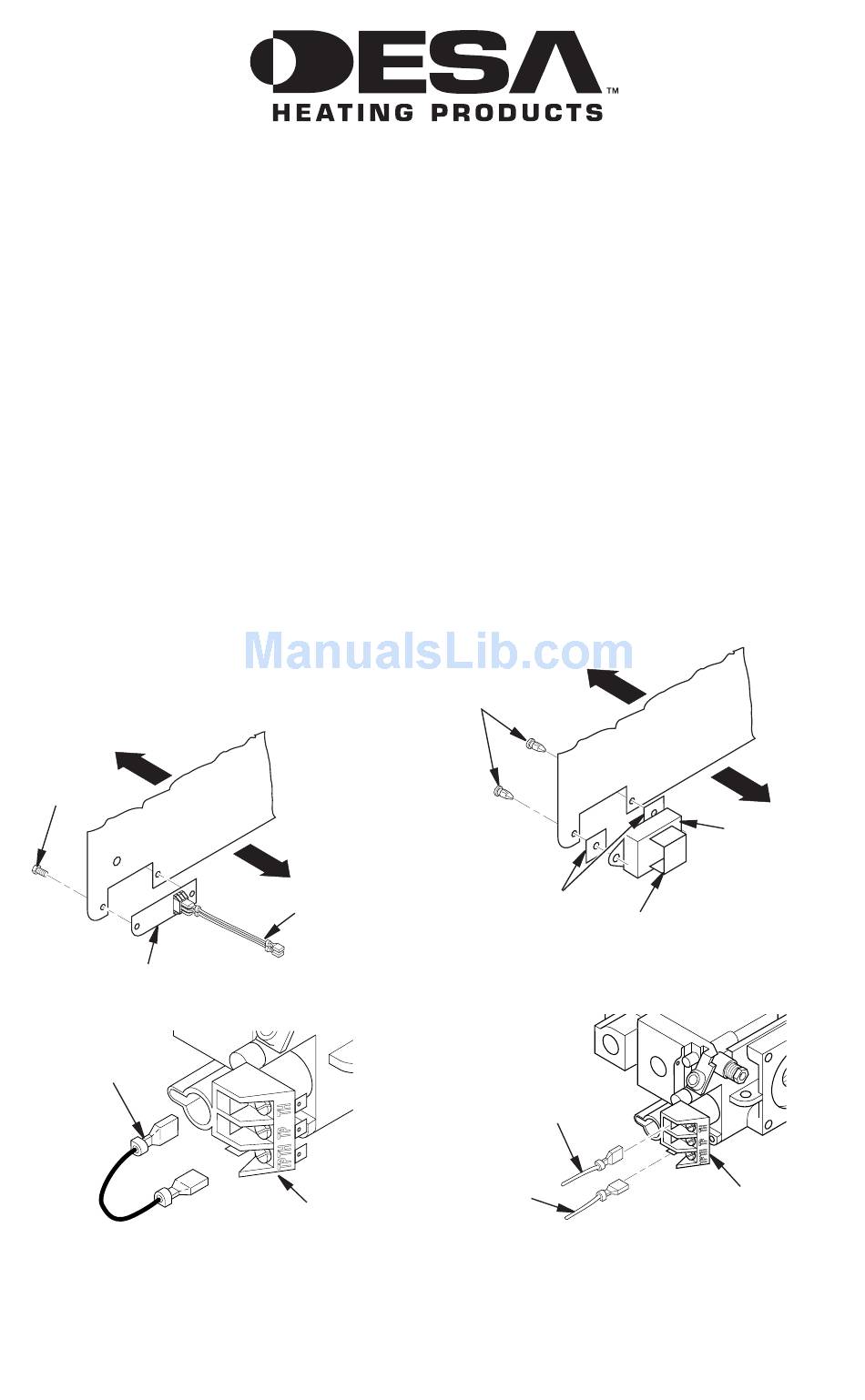

Figure 1 - Disconnecting Wires from
Control Valve
and Fireplace Systems
Back
Wires to
Control Valve
Control Valve
Save for future reference.
For more information, visit www.desatech.com
InStALLIng WIRELESS REmotE
contRoL AccESSoRY
Two 9-volt alkaline batteries (not included) are
required to operate this wireless hand held remote
control set. One battery must be installed in the
receiver and one in the hand-held remote control
unit. Note: Only use alkaline batteries.
Installing 9-volt Battery (not Included) in
Receiver
1. Locate the battery clip mounted on the back
of the receiver.
2. Slide a 9-volt battery through the clip.
3. Attach the terminal wires to the battery.
Front
Mounting
Clips
Insulating
Washers
Battery Clip
Figure 2 - Installing Remote Receiver
Red Wire
From
Receiver
White
Wire From
Receiver
Figure 3 - Connecting Wires
Back
Remote
Receiver
Valve
