Desa GHRCT Quick Start Manual

GHRC and GHRCT Wireless Hand-Held Remote Control Sets
For Use with Vanguard Remote Ready Log Heaters and Fireplace Systems
(May also be used with RADCO approved vented gas log sets (with GA9100 Remote Valve/Pilot Kit only.

INSTALLING REMOTE RECEIVER UNIT

1. Disconnect switch wires from the control valve.
2. Remove screws and nuts.
3. Remove switch plate (see Figure 1). Discard after removing.
4. Install remote receiver unit onto gas log heater base using clips
(2) and insulating washers provided.
5. Push clips firmly into place (see Figure 2).
6. Connect wires as shown in Figure 3.
Front
Screw
Nut

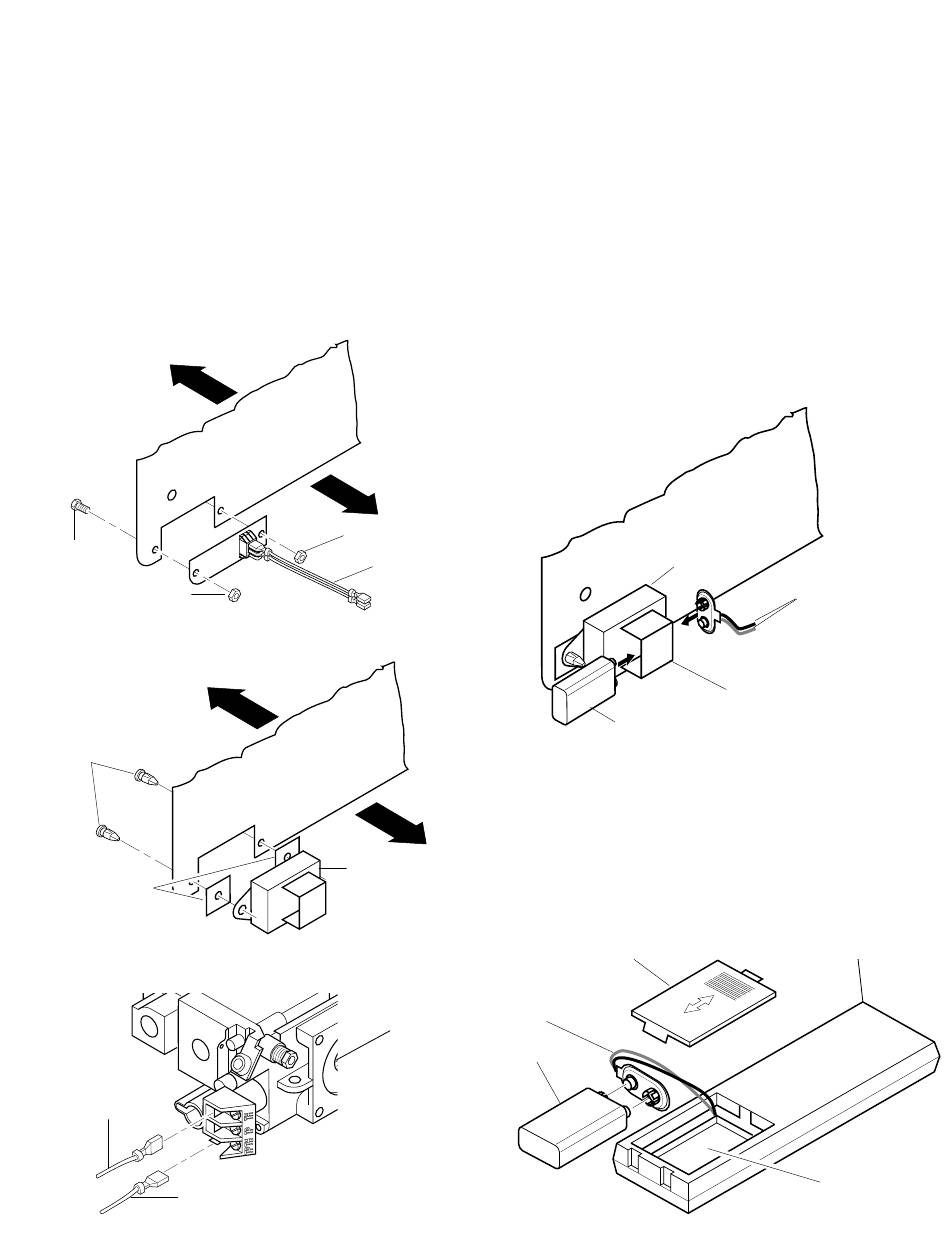

Figure 1 - Switch Plate and Wiring Harness (Switch Plate and
Orientation May Vary Depending On Model)
Front
Mounting
Clips
Insulating
Washers
Figure 2 - Installing Remote Receiver
Wire From
Receiver
Wire From
Receiver
Figure 3 - Connecting Wires
Follow installation instructions included with GA9100.)
Back
Nut
Wires
Remote
Receiver
Valve
INSTALLING WIRELESS REMOTE CONTROL
ACCESSORY
Two 9-volt alkaline batteries (not included) are required to
operate this heater with the wireless hand-held remote control
set. One battery must be installed in the receiver and one in the
hand-held remote control unit. Note: Only use alkaline batteries.
Installing 9-Volt Battery (Not Included) in
Receiver
1. Locate back of receiver under front burner of heater.
2. Locate the battery clip mounted on the back of the receiver.
3. Slide a 9-volt battery through the clip.
4. Attach the terminal wires to the battery.
Figure 4 - Installing Receiver on the Back of the Base
Installing 9-Volt Battery (Not Included) in Hand-
Held Remote Control Unit
1. Remove battery cover on back of remote control unit.
Back
2. Attach terminal wires to the battery. Place battery into the bat-
tery housing.
3. Replace battery cover onto remote control unit.
Battery Cover
Terminal
Wires
9-Volt Battery
Figure 5 - Installing Battery in Hand-Held Remote Control Unit
Receiver
Terminal Wires
Battery Clip
9-Volt Battery
Remote Control Unit
Battery Housing
