Curtis KCR2614A Operation Instructions Manual

Under counter clock radio with 7inches rotating lcd tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

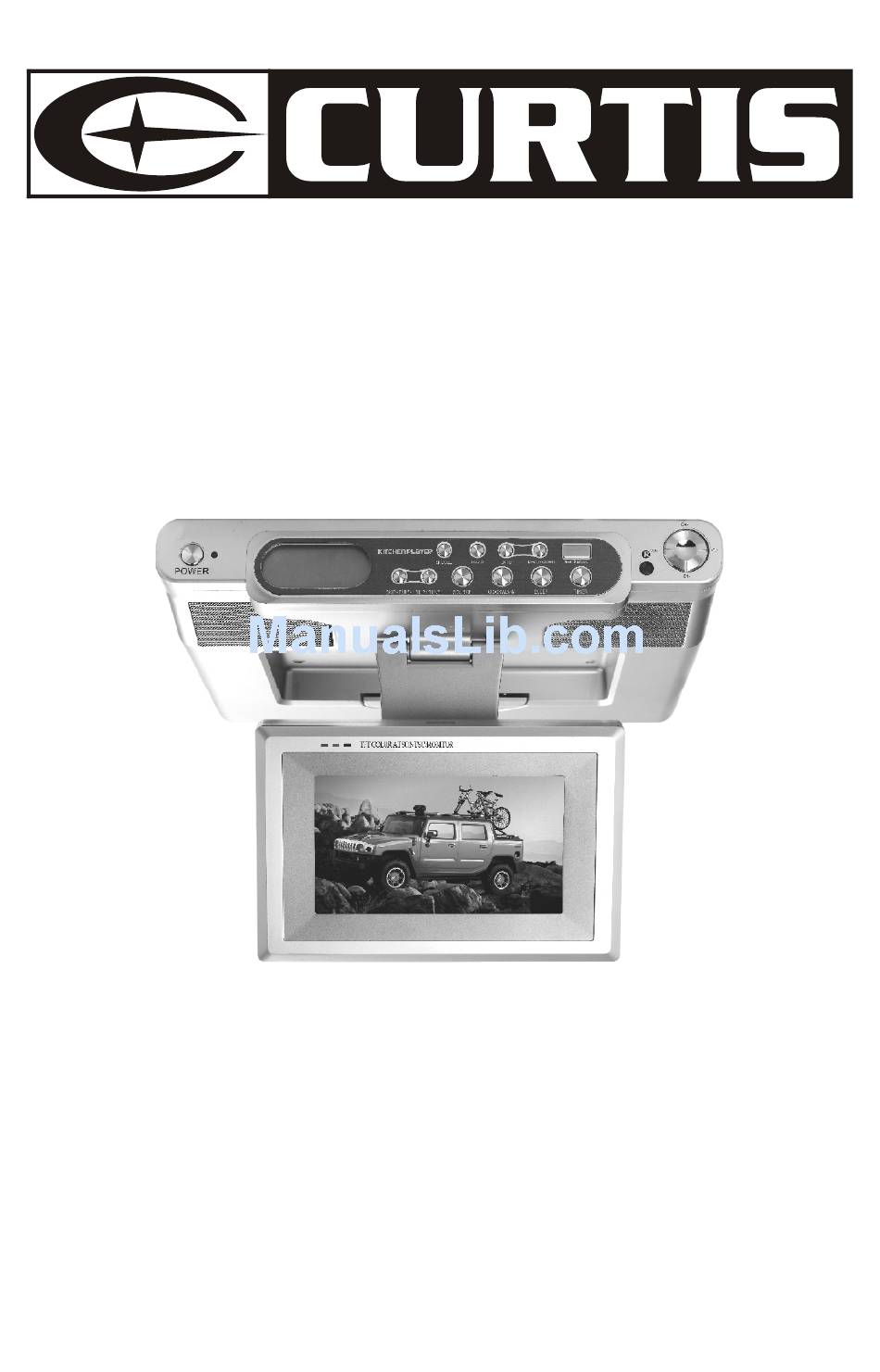

OPERATION INSTRUCTIONS
MODEL NO.: KCR2614A
UNDER COUNTER CLOCK RADIO
WITH 7INCHES ROTATING LCD TV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KCR2614A and is the answer not in the manual?

Questions and answers

Related Manuals for Curtis KCR2614A

Summary of Contents for Curtis KCR2614A

  • Page 1 OPERATION INSTRUCTIONS MODEL NO.: KCR2614A UNDER COUNTER CLOCK RADIO WITH 7INCHES ROTATING LCD TV...

  • Page 3: Table Of Contents

    Table of Contents 1.Accessories 2.Appearance 3.Remote Control Application 4.Function Operation 5.TV Menu Operation 6. Before Repair 7. Technical Parameter...

  • Page 4: Accessories

    1. Accessories Knighthead Screws Remote control Operation Instructions 2 X 1.5V AAA type batteries for Clock Back Up . 2 X 1.5V AAA type Installation manual batteries for remote control .

  • Page 5: Appearance

    2. Appearance 1.Power key: Standby/On, press to choose Standby or Turn on the machine. 2.SKIP-/TUNE- : Radio tune downward/adjust time 3.SKIP+/TUNE+ : Radio tune upward/adjust time. 4.SNOOZE: Has a rest 5.SOURCE: Function mode choose: Radio-TV. 6.TV/AUX: Shift between TV/AUX on TV mode. 7.CLOCK/ALARM: Display clock/alarm setting time 8.BAND: Shift between FM/AM/WB on radio mode.
  • Page 6 13.CH+ key: Radio memory station increases/TV channel increases, direction/choose alarm mode on the standby. CH- key: Radio memory station decreases/TV channel decreases, direction/choose alarm mode on the standby. VOL- key: Volume decreases. direction. VOL+ key: Volume increases. direction. 14.TIMER: Calculagraph time setting. 15.Loudspeaker 16.TFT LCD screen.

  • Page 7: Remote Control Application

    3. Remote Control Operation 1.POWER BUTTON Standby/off, press to switch between ON and STANDBY . 2.SOURCE BUTTON System working mode, press to switch RADIO /TV. 3.BAND BUTTON Band switch, under radio mode, press to switch FM/AM/WB. 4.TIMER BUTTON Press to enter timer setting mode, use SKIP+/- to adjust time, then press TIMER to confirm time setting.
  • Page 8 20.MEMORY/ ALERT BUTTON MEMORY/ ALERT , under FM/AM mode, press to storage favour channels; under STANDBY mode, press to turn ON/OFF WB(weather band) ALERT function. 21.SKIP+/TUNE+ BUTTON Search key for radio, under radio mode, press to up search channels, keep pressing to auto (up) search channels;...

  • Page 9: Function Operation

    4.Function Operation 4.1.Time setting (CLOCK on remote) Press and hold Hour setting (CLOCK on remote) Press one time Minute setting (CLOCK on remote) Press one time Alarm 1 hour setting (CLOCK on remote) Press one time Alarm 1 minute setting (CLOCK on remote) Press one time Alarm 2 hour setting...
  • Page 10 4.3.Snooze/Close alarm 4.3.1.While the alarm ring, press SNOOZE to pause, it will ring after 8 minutes. 4.3.2. While the alarm ring, press POWER to stop, it will ring at this time nest day. 4.4.Sleep time setting Press SLEEP key to choose sleep time to be (90, 80, ..10) minutes. 4.5.Calculagraph Press TIMER key, then press SKIP+/- to adjust time of calculargraph: Then press TIMER key to confirm.

  • Page 11: Tv Menu Operation

    5. TV Menu Operation(on the TV and AUX mode) Precautions It's unavailable if the menu is grey. 5.1. TV/AV Image Quality Adjustment Personal Picture Mode Contrast Brightness Color Sharpness Tint UP/DOWN ADJUST "MENU": EXIT Press MENU key to enter the menu list and then press left or right key to enter the above list.

  • Page 12: Sound Adjustment

    5.2. Sound Adjustment Standard Sound Mode Bass Treble Balance Audio Language English UP/DOWN ADJUST "MENU": EXIT Press MENU key to enter the menu list and then press left or right key to enter the above list. Press up and down key to choose to enter the sub-list, press left and right key to adjust the numerical value or setup the contents, then press Menu to confirm and return to previous list.
  • Page 13 Press MENU key to enter the menu list and then press left or right key to enter the above list. Press up and down key to choose to enter the sub-list, press left and right key to adjust the numerical value or setup the contents, then press Menu to confirm and return to previous list.
  • Page 14 5.4.3. Color Auto-adjustmen Press Up and Down Key to choose Color Mode. Press Left and Right Key to choose among Normal, Warm and Cool. 5.4.4. Closed Caption Settings Many TV programs contain closed caption information, and the audience can see the caption in words on the screen. Not all the channels at any time have closed caption code information.
  • Page 15 Are you sure? SELECT CONFIRM 5.5. Program Searching Press MENU Key to enter the menu list, press Left and Right Key to enter the following list, press Up and Down Key to enter the sub-list and then press Left and Right Key to setup the contents. Precautions There is no search menu under the AUX mode.
  • Page 16 5.5.1.2. In the CATV state, choose Auto scan and press OK to enter Cable system settings. Four options, AUTO, STD, IRC, HRC can be chosen. AUTO Cable System Start to Scan UP/DOWN ADJUST "MENU": EXIT 5.5.2. In the Start to scan item, press VOL+ to start searching. Auto searching will clear the primary program.
  • Page 17 5.5.4. Channel Skip Settings Choose Channel Skip and press VOL+ to enter Skip item as following: Program Name Skip FD 3803 KQED-SD "ENTER": SELECT "MENU": EXIT Press VOL+ or VOL- to close or open the current channel skip settings. 5.5.5. Change Channel Number Choose Channel No.

  • Page 18: Before Repair

    6. Before Repair The following phenomenons do not mean that the TV set has fault. Please check it according to the following methods before repair. Phenomenon Reason No image and sound The power switch is on the state of off. Whether chosen the right channel;...

  • Page 19: Technical Parameter

    7. Technical Parameter Radio technical parameters Receiving frequence rang: AM 520KHz ~ 1710KHz FM 87.5MHz ~ 108MHz 162.400MHz 162.425MHz 162.450MHz 162.475MHz 162.500MHz 162.525MHz 162.550MHz Step: AM 10KHz FM 100KHz Sensitivity: AM 65dB FM 23dB WB 2 Signal-noise ratio: AM 30dB FM 40dB WB 30dB TV technical parameters...
  • Page 20 Warning This manual is for reference only. No further notice is made if there is any change of the information. The authority of interpretation belongs to manufactory if there is any information is missing or not detailed. Warning There is no component that can be repaired in the TV set. Do not try to disassemble and improve the TV set.
