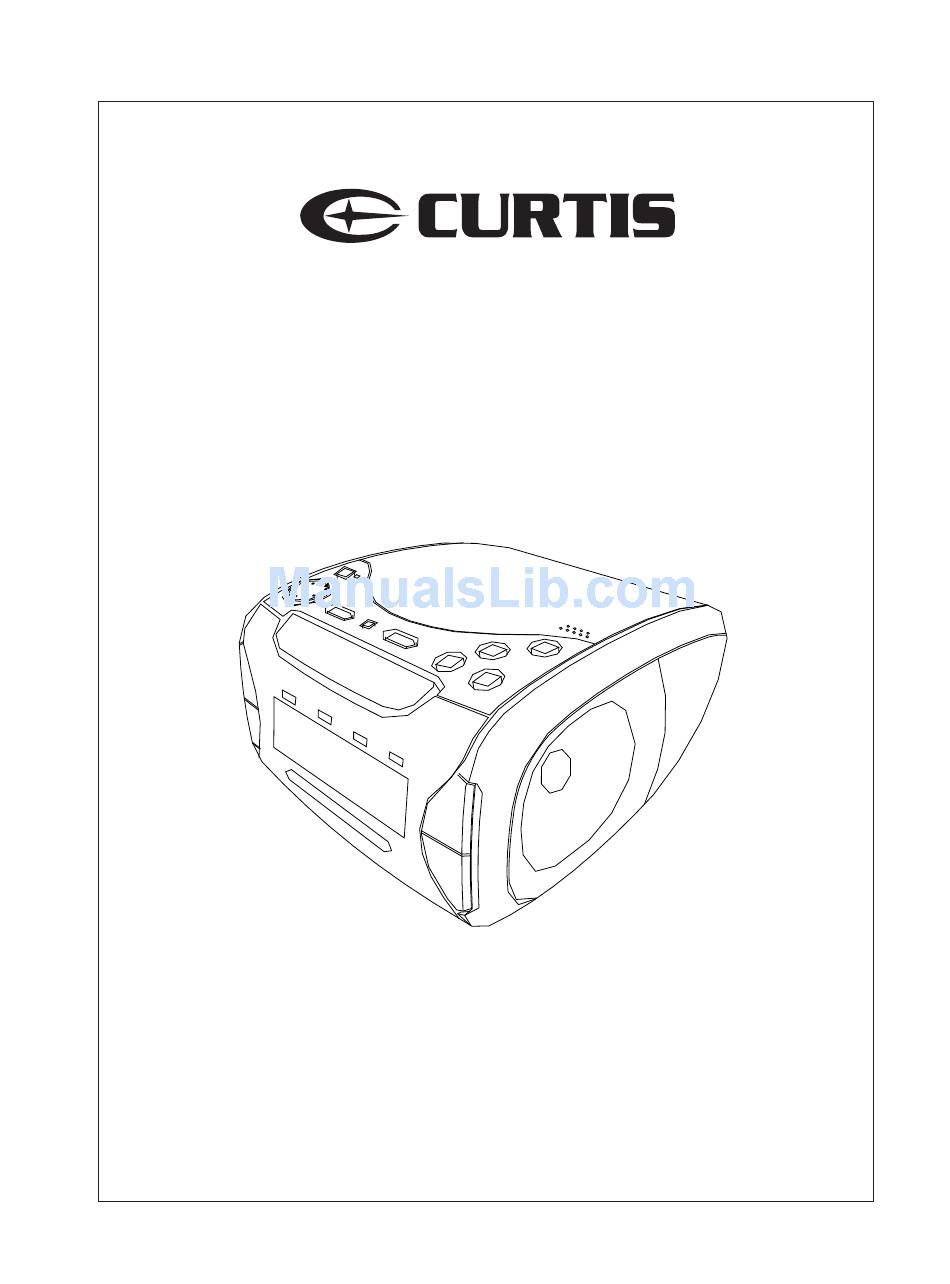

- Page 1 STEREO RADIO, CD-R/RW PLAYER WITH ALARM CLOCK OWNER'S MANUAL MODEL NO. CR4975 PLEASE READ BEFORE OPERATING THIS EQUIPEMNT...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN C A U T I O N : T O R E D U C E T H E R I S K O F E L E C T R I C SHOCK, DO NOT REMOVE COVER (OR BACK). - Page 3 SAFETY INSTRUCTIONS Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capabili- ty to be connected to an outdoor antenna. READ INSTRUCTIONS All the safety and operating instructions should be read before the product is operated.
- Page 4 SAFETY INSTRUCTIONS 15. OVERLOADING Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 16. OBJECT AND LIQUID ENTRY Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock.
-
Page 5: Installation
Unravel the AC cord and connect it to a conveniently located AC outlet having 120V and 60Hz only. The Clock Display will illuminate and "12:00" will appear in the window. NOTE: If the AC plug does not fit into a nonpolarized outlet, do not file or cut the wide blade. -
Page 6: Location Of Controls
LOCATION OF CONTROLS FRONT/TOP 12 13 SIDE SKIP Up VOLUME Button SLEEP Button HOUR Button Clock Set Button AC Cord (rear of unit) MIN Button CD Compartment ALM button RAND Button REP Button DIMMER Button CD OPEN/CLOSE Area FM Antenna Wire (rear of unit) SKIP Down PM Indicator... -
Page 7: Radio Operation
RADIO OPERATION TO PLAY THE RADIO Slide the AUTO/OFF/ON switch to the ON position to turn the unit on; the POWER indicator will light. Tune a station by turning the TUNING control. tune broadcasting in stereo, the FM STEREO indication will light. Antennas FM: Extend the FM antenna wire for better FM reception. - Page 8 TO PLAY A CD Slide the AUTO/OFF/ON switch to the ON position to turn the unit on; the POWER indicator will light. Open the CD compartment door by pressing the OPEN/CLOSE area. Insert a disc, label side up, onto the spindle and close the CD compartment door.
-
Page 9: Random Playback
CD OPERATION (CONTINUED) TO SKIP/SEARCH Turn on the unit, insert a CD and press the PLAY/PAUSE ( / )button to begin playback. NOTES: • If a disc is inserted incorrectly, dirty or damaged, it will not play. • To prevent damage to the disc, never open the CD door while the disc is rotating. - Page 10 CLOCK/ALARM SETTING TO SET OR RESET THE ACTUAL TIME Press and hold the CLOCK SET button. TO SET OR RESET THE ALARM TIME Press and hold the ALARM SET button. Press and hold the HR (Hour) 1 button to set the hour and the MIN (Minute) button 2 to set the minutes.
- Page 11 CLOCK/ALARM SETTING (CONTINUED) TO SET THE ALARM TO WAKE TO RADIO Set the alarm time as previously instructed. Slide the FUNCTION switch 1 to the AM or FM ST. position, select a radio station and make sure the VOLUME control 2 is set as desired. TO SET THE ALARM TO WAKE TO CD Set the alarm time as previously instructed.
- Page 12 CLOCK/ALARM SETTING (CONTINUED) TO SET THE ALARM TO WAKE TO BUZZER Set the alarm time as previously instructed. Slide the BUZZER/MUSIC switch to the BUZZER position. TO SHUT ALARM OFF To shut the alarm off, slide the AUTO/OFF/ON switch to the OFF position.
-
Page 13: To Activate The Sleep Function
CLOCK/ALARM SETTING (CONTINUED) TO ACTIVATE THE SLEEP FUNCTION Slide the AUTO/OFF/ON switch to the AUTO position. Hold the SLEEP button 1, then press and hold the HR (Hour) button 2 to set the hour and/or the MIN (Minute) button 3 to set the minutes. Maximum sleep time is 1:59. -
Page 14: Care And Maintenance
CARE AND MAINTENANCE Caring for Compact Discs • Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the disc. • Do not attach adhesive tape, stickers, etc. to the disc label. -
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE If you experience a problem with this unit, check the chart below before calling for service. SYMPTOM CAUSE Unit will not turn on. AC cord not connected. Disc will not play. CD compartment door not closed. Disc inserted incorrectly. Dirty or defective CD. -
Page 16: Specifications
SPECIFICATIONS General: Power Source 120VAC, 60Hz Battery 9V DC (for back up of the clock) Audio Power Output 1 Watt/Ch. Radio Section: Frequency Range (FM) 88 - 108 MHz Frequency Range (AM) 530 - 1710 KHz CD Section: Disc Diameter 4.72"...
