Summary of Contents for Hunter 90405

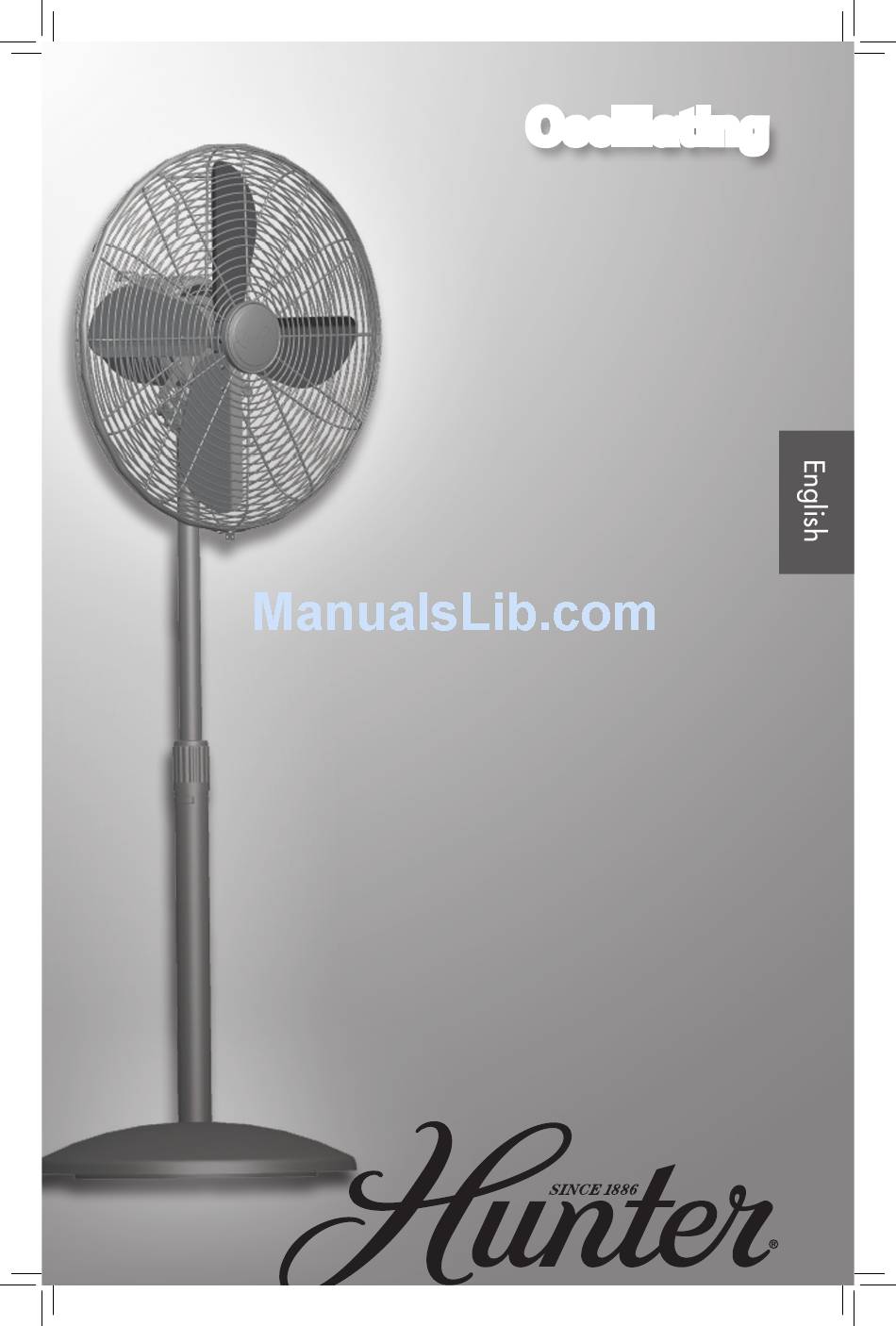

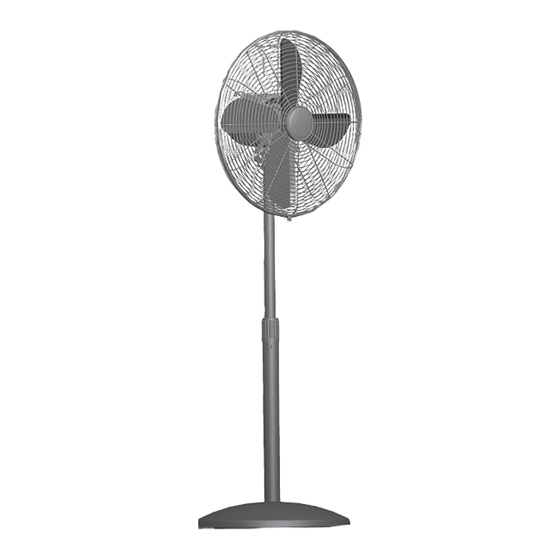

- Page 1 Oscillating Oscillating Oscillating Stand Fan Owner’s Manual Model 90405 Form# 44827-01 20100127 ©2010 Hunter Fan Co.
-
Page 2: Table Of Contents
Unpacking ............... 6 Base Assembly ............6 Motor Assembly ............7 Grill Assembly ............8 Operation.............. 10 Off / Speed Selection Oscillation Adjustment Maintenance ............11 Technical Support ........... 12 Warranty ............... 12 Products ..............14 ©2010 Hunter Fan Co. 44827-01 20100127... -
Page 3: Introduction
InTroduCTIon Thank you for choosing the Hunter Oscillating Stand Fan. This manual gives you complete instructions for assembling and using your fan. Here are some the features you will enjoy with your fan: An attractive design that enhances any decor... - Page 4 DO NOT attempt to defeat the purpose of this safely feature. 18. The rubber ring on this product may interact with wood and cause damage to furniture. Do not place on fine wood furniture. ©2010 Hunter Fan Co. 44827-01 20100127...
-
Page 5: Grounding
6. DO NOT operate appliance if the line cord shows any dam- age, if the appliance works intermittently or stops working entirely. ©2010 Hunter Fan Co. 44827-01 20100127... -
Page 6: Unpacking
3. Turn the Base on it’s side and turn the handle of the Screw(4) on the bottom of the Weight until secure. (2) Base Cover Figure 3. figure 4. 4. Tip the Base back upright. Figure 5. (4) Screw figure 5. figure 6. ©2010 Hunter Fan Co. 44827-01 20100127... -
Page 7: Motor Assembly
After securing the motor(5), Screw in the Tilt Adjustment figure 8. Knob(8) securely. Figure 10. This Knob allows you to adjust the fans angle. (7) Motor Knob (6) Motor Bolt figure 9. (8) Tilt Adjustment Knob figure 10. ©2010 Hunter Fan Co. 44827-01 20100127... -
Page 8: Grill Assembly
Caution: Ensure when tightening the screw on the back of the fan blade, you tighten it on the flat part of the post. figure 12. 13a. (10) Fan Blade (5) Motor figure 13. figure 14. ©2010 Hunter Fan Co. 44827-01 20100127... - Page 9 2. Place the Front Grill(11) against the Back Grill(9) so the Hunter logo faces right side up and push together until the tabs on the grills hold them together. Figure 3. Slide the Grill Ring over both Front(11) and Back(9)
-
Page 10: Operation
Figure 21. figure 20. When adjusting the height of the fan, always grip the pole above the adjustment knob firmly to prevent the telescoping pole from collapsing. figure 21. ©2010 Hunter Fan Co. 44827-01 20100127... -
Page 11: Maintenance
DO NOT allow water or any other liquid to get into the motor housing or base. Reassemble the fan after blades and grills have dried completely. DO NOT plug the fan into an electrical outlet until it has been fully reassembled. ©2010 Hunter Fan Co. 44827-01 20100127... -
Page 12: Technical Support
Hunter Portable fan: If your Hunter Portable Fan motor fails at any time within five years after the date of sale to you due to a defect in material or workmanship, labor to repair the defect will be provided free of charge at our nearest service center or our Service Department in Memphis, Tennessee. - Page 13 OR OTHER FAN PART, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH MOTORS AND OTHER PARTS. This warranty is voided if your Hunter Fan is not purchased and used in the USA. This warranty excludes and does not cover defects,...
-
Page 14: Products
Proof of purchase is required when requesting warranty service. The purchaser must present sales receipt or other document that establishes proof of purchase. IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE CONSEQUENTIAL INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON...
