Summary of Contents for Hunter 90434

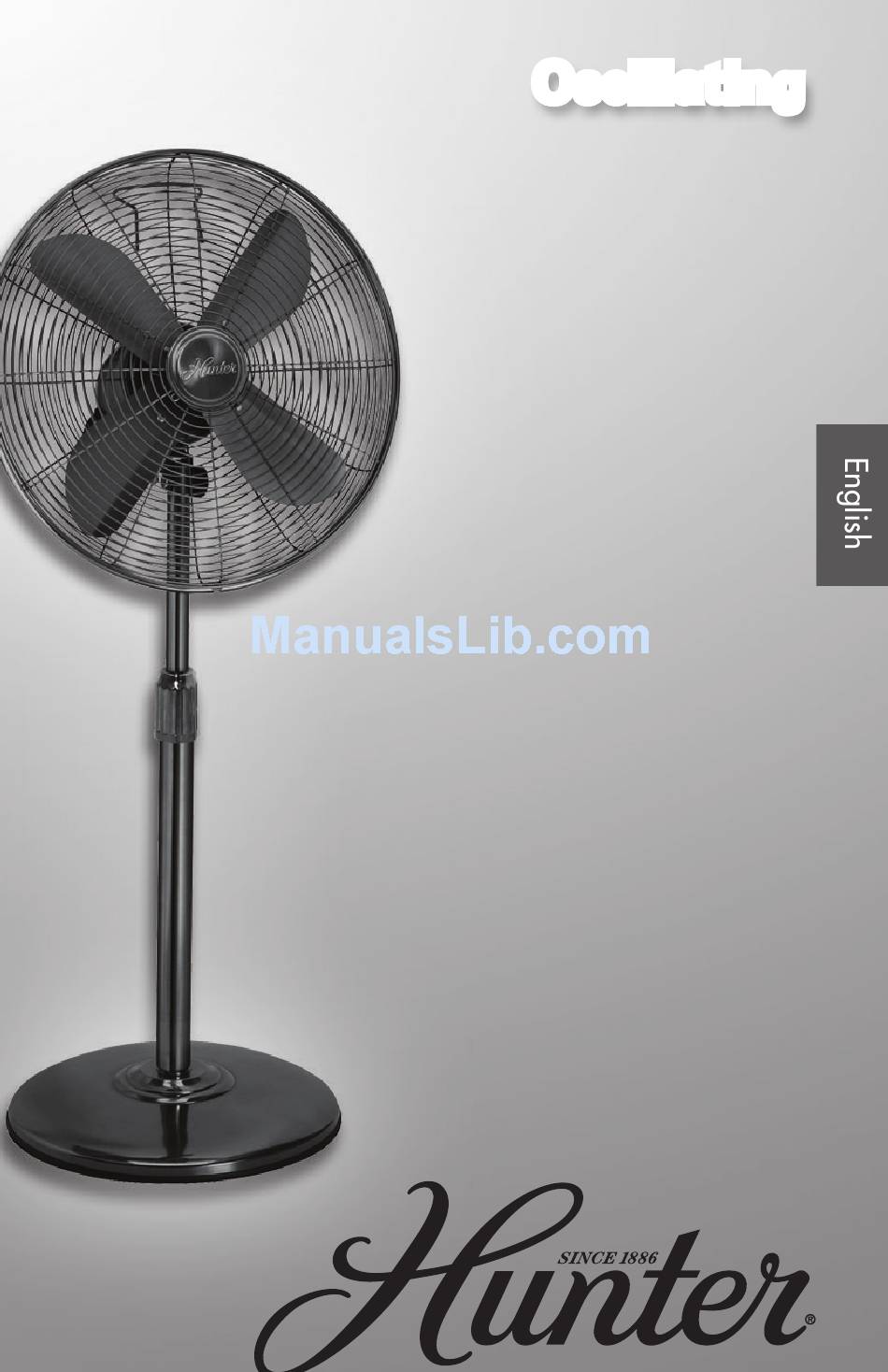

- Page 1 Oscillating Oscillating Oscillating Stand Fan Owner’s Manual Model 90405 90434 90435 44827-01 20111013 ©2011 Hunter Fan Co.
-
Page 2: Table Of Contents
Base Assembly ............6 Attaching Motor Housing to Pole ......7 Grill Assembly ............8 Operation.............. 10 Off / Speed Selection Oscillation Adjustment Maintenance ............11 Technical Support ........... 12 Warranty ............... 12 Products ..............14 ©2011 Hunter Fan Co. 44827-01 20111013... -
Page 3: Introduction
INTRODUCTION Thank you for choosing the Hunter Oscillating Stand Fan. This manual gives you complete instructions for assembling and using your fan. Here are some the features you will enjoy with your fan: An attractive design that enhances any decor... - Page 4 DO NOT attempt to defeat the purpose of this safely feature. 18. The rubber ring on this product may interact with wood and cause damage to furniture. Do not place on fine wood furniture. ©2011 Hunter Fan Co. 44827-01 20111013...
-
Page 5: Grounding
6. DO NOT operate appliance if the line cord shows any damage, if the appliance works intermittently or stops working entirely. ©2011 Hunter Fan Co. 44827-01 20111013... -
Page 6: Unpacking
Screw adjustment knob counter clockwise to loosen. Figure 6. 6. Raise the inner pole and tighten the adjustment knob by twisting clockwise until secure. Figure 6. Figure 5 Inner Pole Adjustment Knob Figure 6 ©2011 Hunter Fan Co. 44827-01 20111013... -
Page 7: Attaching Motor Housing To Pole
Motor Housing housing pole and the telescoping pole. Insert and Screw tighten the motor housing screw. Figure 8. Figure 7 Motor Housing Motor Housing Screw Telescoping Pole Figure 8 ©2011 Hunter Fan Co. 44827-01 20111013... -
Page 8: Grill Assembly
Caution: Ensure when tightening the screw on the Motor Housing back of the fan blade, you tighten it on the flat part Figure 10 of the post. Plastic Hub Cap Figure 11 Post Screw Fan Blade Figure 12 ©2011 Hunter Fan Co. 44827-01 20111013... - Page 9 7. Place the front grill against the back grill so that the Hunter logo faces right side up and push together until the tabs on the grills hold them together. Figure 13. 8. Slide the grill ring over both front and back grills...
-
Page 10: Operation
. When adjusting the height of the fan, always grip the pole above the adjustment knob firmly to prevent the telescoping pole from collapsing. Figure 19 ©2011 Hunter Fan Co. 44827-01 20111013... -
Page 11: Maintenance
DO NOT allow water or any other liquid to get into the motor housing or base. Reassemble the fan after blades and grills have dried completely. DO NOT plug the fan into an electrical outlet until it has been fully reassembled. ©2011 Hunter Fan Co. 44827-01 20111013... -
Page 12: Technical Support
These electronic control items are included in the one year limited warranty below. If any part of your Hunter Portable Fan other than the motor fails at any time with five year after the date of ©2011 Hunter Fan Co. - Page 13 OR OTHER FAN PART, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH MOTORS AND OTHER PARTS. This warranty is voided if your Hunter Fan is not purchased and used in the USA. This warranty excludes and does not cover defects,...
-
Page 14: Products
The purchaser must present sales receipt or other document that establishes proof of purchase. IN NO EVENT SHALL HUNTER FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR...
