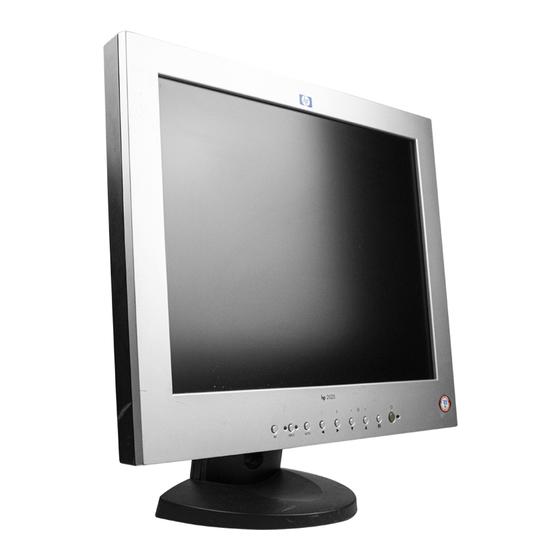

Compaq 2025 User Manual

Flat panel monitor.
Hide thumbs
User's Guide
2025 Flat Panel Monitor
Document Part Number: 305494-001
August 2002

   Related Manuals for Compaq 2025

   Summary of Contents for Compaq 2025

  • Page 1

    User’s Guide 2025 Flat Panel Monitor Document Part Number: 305494-001 August 2002...

  • Page 2

    The warranties for Compaq products are set forth in the express limited warranty statements accompanying such products.

  • Page 3: Table Of Contents

    Contents 2025 Flat Panel Display Product Features....... . 1–1 Information Files ......1–2 Setting Up the Monitor.

  • Page 4: Table Of Contents

    Declaration of Conformity for Products Marked with FCC Logo, United States Only......A–24 Canadian Notice ......A–25 Avis Canadien .

  • Page 5: Product Features

    2025 Flat Panel Display Product Features The 2025 Flat Panel Display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include: Large 20.1-inch (51 cm) viewable area display. 1600 × 1200 resolution, plus full-screen support for lower resolutions.

  • Page 6: Information Files

    2025 Flat Panel Display Software and Reference Library CD includes an information file (INF), Image Color Matching file (ICM), and product documentation. Energy Saver feature for Energy Star compliance. AssetControl Compliant with the following regulated specifications: EPA ENERGY STAR European Union CE Directives Swedish MPR II 1990 Swedish TCO '99 Information Files...

  • Page 7: Setting Up The Monitor

    2025 Flat Panel Display Setting Up the Monitor To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow these steps: 1. Place the monitor in a convenient, well-ventilated location near your computer.

  • Page 8

    2025 Flat Panel Display 6. Adjust the monitor as needed for your comfort using the monitor’s tilt, swivel, and height adjustment capabilities. User’s Guide...

  • Page 9

    2025 Flat Panel Display User’s Guide...

  • Page 10: Selecting The Signal Connectors And Cables

    2025 Flat Panel Display Å WARNING: To reduce the risk of electric shock or damage to your equipment: Do not disable the power cord grounding plug. The grounding plug is an important safety feature. Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

  • Page 11: Removing The Monitor Base

    2025 Flat Panel Display Removing the Monitor Base Before you can mount the monitor onto a swing arm or other mounting fixture, you must remove the monitor from the base. Ä CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and the power and signal cables are both disconnected.

  • Page 12

    2025 Flat Panel Display 2. Remove the four screws as shown in the following illustration. Ä CAUTION: Ensure that the bottom of the monitor base is positioned over a table or desktop before removing the base from the monitor. 3. Remove the monitor base from the monitor. User’s Guide...

  • Page 13: Mounting The Monitor

    2025 Flat Panel Display Mounting the Monitor 1. Remove the monitor base. Refer to “Removing the Monitor Base” steps in the previous section. When the base is removed, four threaded mounting holes are exposed on the monitor panel to be used for mounting purposes.

  • Page 14: Operating The Monitor

    2025 Flat Panel Display Operating the Monitor Front Panel Controls Icon Function Control Pip button Activates Picture in Picture (Pip) window Signal Input LEDs PC LED activates when VGA or DVI-I is displayed; video LED activates when super video or composite video is displayed INPUT Signal Input...

  • Page 15: Front Panel Controls

    2025 Flat Panel Display Front Panel Controls Icon Function Control OSD Adjusts Selects VGA (Input 1) or DVI-I (Input 2) when OSD is Off Selects and adjusts the OSD Menu settings Brightness icon Indicates brightness controls, which are used to adjusts the screen brightness.

  • Page 16: On-screen Display Settings

    2025 Flat Panel Display On-Screen Display Settings The adjustments for screen settings are located in the on-screen display (OSD). Press the OK button on the monitor's front panel to view the OSD menu in one of six available languages. The following table shows the menus and their functions at each level: OSD Menu Levels Menu Level...

  • Page 17

    2025 Flat Panel Display OSD Menu Levels Menu Level Menu Level Menu Level Menu Level OSD Setting Horizontal Vertical Product Serial No. Information Resolution Video Input Input Selection Analog (D-Sub) Analog (DVI) Digital (DVI) CVBS S-Video Picture in Picture Size On/Off Small Medium...

  • Page 18: Adjusting Monitor Settings, Identifying Special Osd Messages

    2025 Flat Panel Display The Video Noise OSD selection is not available when the monitor is operating in the DVI-D (digital ) mode. Adjusting Monitor Settings On the front controls of your monitor, once you press the OK button, the On Screen Display (OSD) Main Controls window will pop up and you can now start making adjustments to your monitor’s various features.

  • Page 19: Adjusting Screen Quality, Optimizing Digital Conversion

    2025 Flat Panel Display Entering sleep mode—Indicates the screen display is entering a sleep mode. No video input—Indicates the video cable may not be plugged into the computer or the computer may not be turned on. Adjusting Screen Quality Allow the monitor to warm up for 20 minutes before performing the following procedures.

  • Page 20: Recognizing Preset Display Resolutions

    2025 Flat Panel Display The Clock must first be set correctly since the Clock Phase settings are dependent on the main Clock setting. When using the controls, you will obtain the best results by using the adjustment pattern provided on the CD-ROM. When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue adjusting the values until the distortion disappears.

  • Page 21: Entering User Modes, Energy Saver Feature

    The video controller signal may occasionally call for a mode that is not preset if: You are not using a Compaq standard graphics adapter. You are not using a preset mode. If this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display.

  • Page 22: Care And Maintenance, Protecting The Monitor

    2025 Flat Panel Display Upon detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and the Power light is turned amber. When the monitor is in the reduced power state, the monitor will utilize less than 5 watts of power. There is a brief warm up period before the monitor will return to its normal operating mode.

  • Page 23: Cleaning The Monitor

    2025 Flat Panel Display Do not overload an electrical outlet, power strip, or convenience receptacle. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip input rating.

  • Page 24: Shipping The Monitor

    2025 Flat Panel Display 2. Dust the monitor by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean cloth dampened with isopropyl alcohol. Ä CAUTION: Do not use benzene, thinner, ammonia, or any volatile substance to clean the monitor screen or cabinet.

  • Page 25: Specifications

    2025 Flat Panel Display Specifications 2025 Flat Panel Monitor Display Type 20.1 inches TFT LCD 51 cm Viewable Image Size 20.1-inch diagonal 51 cm Tilt -5 to +35 Swivel -35 to +35 Face Treatment Anti-glare polarizer with hard coating Maximum Weight 26.1 lbs.

  • Page 26: Color Display Values

    2025 Flat Panel Monitor Environmental Requirements Temperature 41 to 95 5 to 35 Operating Temperature -4 to +140 -20 to +60 Non-operating Temperature Relative Humidity 20 to 80% Power Source 100 - 240 VAC, 50/60 Power Consumption 52 watts typical Input Terminals 15-pin D-type connector with cable included.

  • Page 27: Federal Communications Commission Notice

    Agency Regulatory Notices Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 28: Modifications, Cables, Logo, United States Only

    Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Compaq Computer Corporation may void the user's authority to operate the equipment. Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

  • Page 29: Canadian Notice, Avis Canadien, European Notice

    Agency Regulatory Notices Canadian Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. European Notice Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive...

  • Page 30: Japanese Notice, Epa Energy Star Compliance, Congratulations!

    Monitors that are marked with the Energy Star Logo meet the requirements of the EPA Energy Star program. As an Energy Star Partner, Compaq Computer Corporation has determined that this product meets the Energy Star guidelines for energy efficiency. Specific details on using the Energy Saving features can be found in the energy saver or power management section of the computer manual.

  • Page 31: What Does Labelling Involve?

    Agency Regulatory Notices Why do we have environmentally labelled computers? In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.

  • Page 32

    Agency Regulatory Notices The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

  • Page 33: Environmental Requirements

    Agency Regulatory Notices Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances.

  • Page 34

    Agency Regulatory Notices Mercury** Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

  • Page 35: Power Cord Set Requirements

    18AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact your Compaq authorized service provider. A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it.
