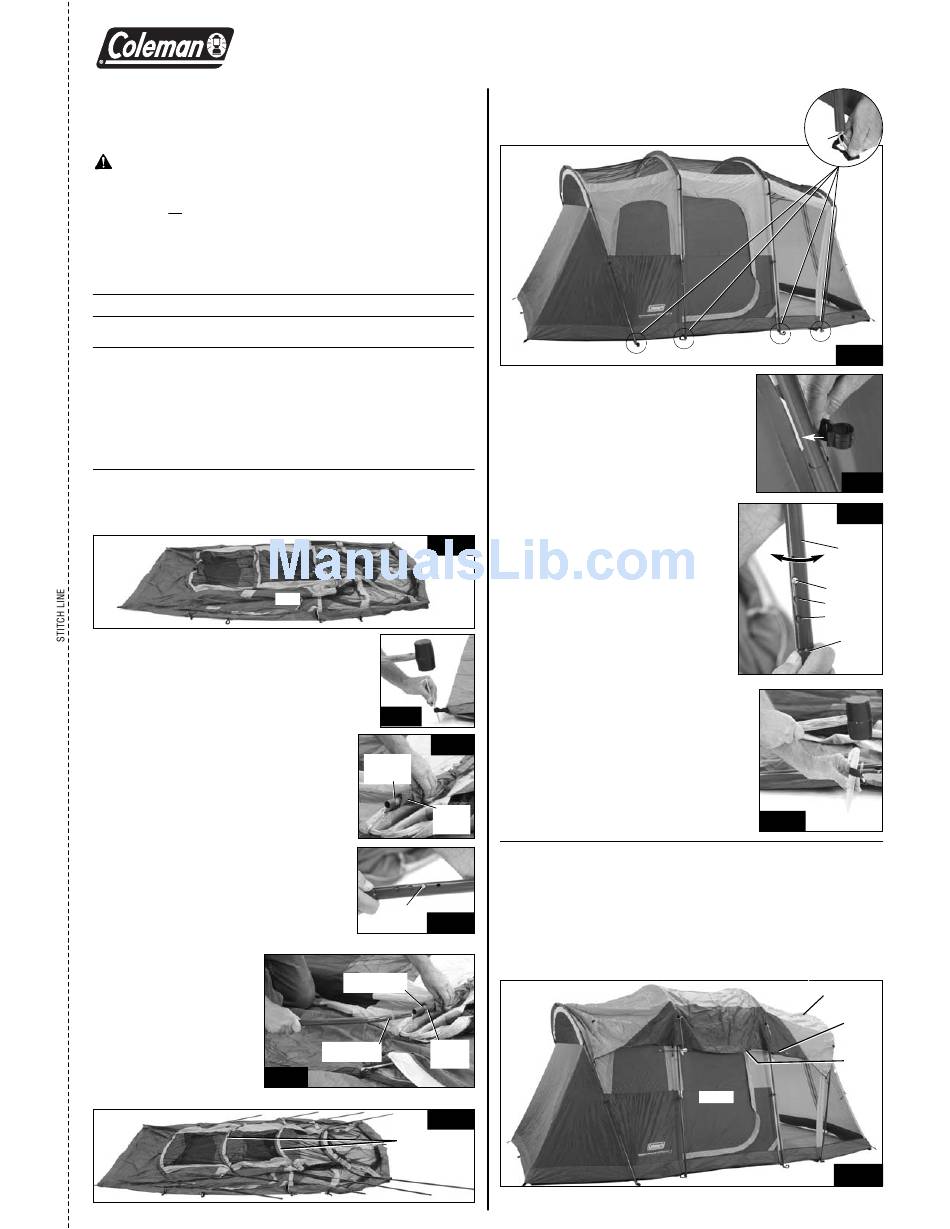

Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp
objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes
or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property
damage or personal injury.
• For best results in windy conditions, position narrow end of tent into
the wind.
• Enlist the help of at least one other person to assist you when it is time
to assemble the tent.
Pole Descriptions
Pole
Description Qty. Dia.
Long Leg Pole, steel
(w/ red marking) 4 19mm
Short Leg Pole, steel 4 19mm
Curved Ridge Pole, steel
(w/ red marking) 2 19mm
Curved Ridge Pole, steel 2 19mm
Awning Pole,
black, fiberglass 1 6.3mm 5010000543
To Set Up Tent
1. Unfold tent and spread out on a clean, level surface with the
door facing the desired direction. Unzip doors. (Fig. 1)
2. Pull four corners of tent taut, then secure
by driving stakes through web loops at an
angle for better anchoring. (Fig. 2)
3. Assemble four, steel, shock-corded,
curved Ridge Poles. Insert Ridge Poles
(with red marking) into center sleeves
on top of tent with the red trim (Fig. 3).
Insert the remaining curved Ridge Poles
into the other two sleeves on top of tent.
4. Assemble eight, steel, shock-corded,
Leg Poles. Push down on steel button
on tapered end and insert into end with
four holes.
NOTE: Make sure steel button locks into
third hole on pole as shown. (Fig.4)
5. Insert curved end of
long Leg Poles (with red
marking) into the ends
of the Ridge Poles (with
red marking). Insert
curved end of remaining
short Leg Poles into the
Fig. 5
ends of the remaining
Ridge Poles. (Fig. 5 & 6)
Pole Pole
Repair Kit Replacement Kit
N/A 5010000621
N/A 5010000618
N/A 5010000620
N/A 5010000619
5010000545
Fig. 1
Door
Fig. 2
Fig. 3
Ridge Poles
with Red
Marking
Sleeves
with Red
Trim
Button in
third hole
Fig. 4
Ridge Poles with
Red Marking
Sleeves
Curved End of
with Red
Long Leg Pole
Trim
Fig. 6
Ridge Poles with
Red Marking in
center 2 sleeves
4 SCREENED TENT
®
6. Rotate all eight Leg Poles upright and insert
pin on each web loop at the side locations
as shown. (Fig. 7 & 7A)
7. Locate the plastic hooks at sides and
corners of tent, then snap onto Leg
Poles to attach. (Fig. 8)
8. To stretch tent to finished size:
• Push in button on Leg Pole while
twisting lower Leg Pole section
counterclockwise (Fig.9);
• Pull up on top Leg Pole section
until tent is taut;
• Twist the lower Leg Pole clock-
wise until the button locks into
the center or lowest hole;
• Repeat on remaining Leg Poles.
9. Insert plastic stakes through web
straps located on both sides of tent,
then drive in to secure. (Fig. 10)
NOTE: It may be necessary to remove
metal stakes through web straps at
side of tent and screen room, pull tent
taut, and drive in stakes to secure.
To Attach Rainfly
1. Drape Rainfly over tent. Make sure seams on Rainfly are
facing down and centered over poles of the tent. (Fig. 11)
NOTE: Hook and loop fasteners, located on seams of under -
side of Rainfly, should be centered over Ridge Poles.
2. Assemble thin, black, shock-corded Awning Pole; then insert
through sleeve in Rainfly above door. (Fig. 11)
(continued on other side)
MODEL 2000001595
7A
Pin
Fig. 7
Fig. 8
Fig. 9
Upper
Leg Pole
Section
Button
Center Hole
Lower Hole
Lower
Leg Pole
Section
Fig. 10
Rainfly
Awning
Pole
Sleeve
Door
Fig. 11
