Hanna Instruments HI 96770 Instruction Manual

INSTRUCTION MANUAL
HI 96770 HI 96770 HI 96770 HI 96770 HI 96770
Silica High Range ISM
This instrument is in
compliance with the
w w w . h a n n a i n s t . c o m
Directives
Dear Customer,
Thank you for choosing a Hanna product. This manual will provide you
with the necessary information for the correct use of the instrument. Please
read it carefully before using the meter. If you need additional technical
information, do not hesitate to e-mail us at tech@hannainst.com.
This instrument is in compliance with directives.
Preliminary examination:
Please examine this product carefully. Make sure that the instrument is not
damaged. If any damage occurred during shipment, please notify your
Dealer.
Each HI 96770 Ion Selective Meter is supplied complete with:
• Two Sample Cuvets and Caps
• 9V Battery
• Instruction Manual
Note: save all packing material until you are sure that the instrument
works correctly. Any defective item must be returned in its original
packing.
For more details about spare parts and
accessories see "Accessories"
Technical specifications:
Range 0 to 200 mg/L (as SiO )
2
Resolution 1 mg/L for measurement
Precision ±5 mg/L @ 100 mg/L
Typical EMC Dev. ±1 mg/L
Light Source Light Emitting Diode
Light Detector Silicon Photocell with narrow band
interference filter @ 466 nm
Method Adaptation of the USEPA METHOD 370.1
for drinking, surface and saline waters,
domestic and industrial wastes and Standard
Method 4500-SiO C.
2
Environment 0 to 50°C (32 to 122°F);
max 95% RH non-condensing
Battery Type 1 x 9 volt
Auto-Shut off After 10' of non-use in measurement mode;
after 1 hour of non-use in calibration mode;
with last reading reminder.
Dimensions 192 x 102 x 67 mm (7.6 x 4 x 2.6")
Weight 290 g (10 oz.).

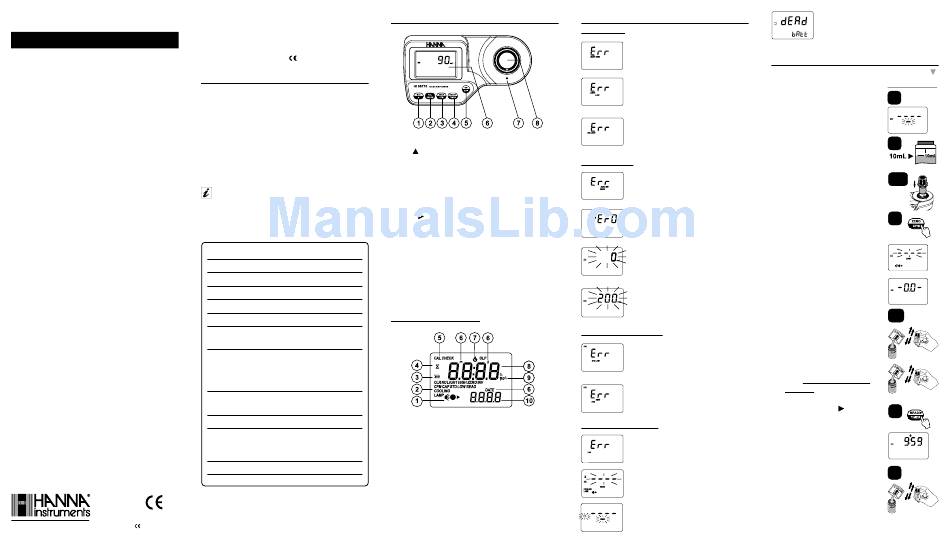

Functional description:
1. GLP/ key: press to enter GLP mode. In calibration mode press to edit
the date and time.
2. CAL CHECK key: press to perform the validation of the meter, or press
and hold for three seconds to enter calibration mode.
3. ZERO/CFM key: press to zero the meter prior to measurement, to
confirm edited values or to confirm factory calibration restore.
4. READ /TIMER key: In measurement mode, press to make a
measurement, or press and hold for three seconds to start a pre-
programmed countdown. In GLP mode press to view the next screen.
5. ON/OFF key: to turn the meter on and off.
6. Liquid Cristal Display (LCD)
7. Cuvet alignment indicator
8. Cuvet holder
DISPLAY ELEMENTS DESCRIPTION:
1) Instrument status indicator appears during different phases of zero
or reading measurement
2) Icons displayed in this area are warning or action icons, signaling
next operation
3) The battery icon shows the charging level of the battery
4) The hourglass appears when the instrument is performing an internal
check up
5) CAL: appears when the instrument operates in the calibration mode
6) The month, day and date icons appear when a date is displayed
7) The chronometer appears when the reaction timer is running
8) Four digit main display
9) Measuring units
10) Four digit secondary display
Errors and warnings:
ON ZERO READING:
Light High: There is too much light to perform a
measurement. Please check the preparation of the
zero cuvet.
Light Low: There is not enough light to perform a
measurement. Please check the preparation of the
zero cuvet.
No Light:The instrument cannot adjust the light
level. Please check that the samples does not contain
any debris.
ON SAMPLE READING:
Inverted cuvets: The sample and the zero cuvet
are inverted.
Zero: A zero reading was not taken. Follow the
instructions of the measurement procedure for zero-
ing the meter.
Under range: A blinking "0" indicates that the
silica content in the sample is less than 0 mg/L.
Over Range: A flashing value of the maximum
concentration indicates an over range condition. The
concentration of the sample is beyond the
programmed range: dilute the sample and re-run
the test.
DURING CALIBRATION PROCEDURE:
Standard Low: The standard reading is out of
range.
Standard High: The standard reading is out of
range.
OTHER ERRORS AND WARNINGS:
Cap error: Appears when external light enters in
the analysis cell. Assure that the cuvet cap is present.
Cooling lamp: The instrument waits for the lamp
to cool down.
Battery low: The battery voltage is getting low
and the battery needs to be replaced.
Dead battery: This indicates that the battery is
dead and must be replaced. Once this indication
is displayed, the meter will lock up. Change the
battery and restart the meter.
Measurement procedure:
Measurement
1• Turn the meter on by pressing
2
ON/OFF.
2• When the beeper sounds and the LCD
displays dashes, the meter is ready.
The blinking "ZERO" indicates that
the instrument needs to be zeroed first.
3
3• Fill the cuvet with 10 mL of unreacted
sample, up to the mark, and replace the
cap.
4, 12
4• Place the cuvet into the cuvet holder
and ensure that the notch on the cap
is positioned securely into the groove.
5-6
5• Press ZERO/CFM and the instrument
status indicator will appear on the
display, depending on the measurement
phase.
6• After a few seconds the display will
show "-0.0-". The meter is now
zeroed and ready for measurement.
7• Remove the cuvet.
8, 9
8• Add the content of one packet of
HI 96770A-0 Silica HR reagent A
and shake until complete dissolution.
9• Remove the cap and add the content
of one packet of HI 96770B-0 Silica
HR reagent B. Replace the cap and
shake vigorously until complete vigorously until complete vigorously until complete vigorously until complete vigorously until complete
dissolution dissolution
dissolution dissolution dissolution.
10• Press and hold READ READ READ READ /TIMER /TIMER /TIMER for
READ /TIMER /TIMER
10
three seconds. The display will show
the countdown. The beeper indicates
the end of countdown period.
Alternatively, wait for 10 minutes.
Remove the cap.
11• Add the content of one packet of
11
HI 96770C-0 Silica HR reagent C
and shake vigorously until complete
dissolution.
12• Replace the cuvet into the cuvet holder
and ensure that the notch on the cap
is positioned securely into the groove.
