Hanna Instruments HI 93714 Instruction Manual

Instruction Manual
HI 93714
Cyanide ISM
This Instrument is in
Compliance with the CE Directives
www.hannainst.com
Warranty
HI 93714 is warranted for two years against defects in
workmanship and materials when used for its intended purpose and
maintained according to instructions.
This warranty is limited to repair or replacement free of charge.
Damages due to accident, misuse, tampering or lack of prescribed
maintenance are not covered.
If service is required, contact the dealer from whom you purchased
the instrument. If under warranty, report the model number, date of
purchase, serial number and the nature of the failure. If the repair
is not covered by the warranty, you will be notified of the charges
incurred. If the instrument is to be returned to Hanna Instruments,
first obtain a Returned Goods Authorization Number from the
Customer Service department and then send it with shipment costs
prepaid. When shipping any instrument, make sure it is properly
packaged for complete protection.
To validate your warranty, fill out and return the enclosed warranty
card within 14 days from the date of purchase.
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner, Hanna Instruments
Inc., Woonsocket, Rhode Island, 02895 , USA.
Hanna Instruments reserves the right to modify the design, construction
and appearance of its products without advance notice.
Dear Customer,
Thank you for choosing a Hanna product. This manual will
provide you with the necessary information for the correct
operation of the meter. Please read it carefully before using
the meter. If you need additional technical information, do
not hesitate to e-mail us at tech@hannainst.com.
This instrument is in compliance with directives.

Preliminary Examination

Remove the instrument from the packing material and
examine it carefully to make sure that no damage has
occurred during shipment. If there is any damage, notify
your Dealer.
Each Ion Specific Meter is supplied complete with
• 9V Battery
• Two Sample Cuvets and Caps
• One Transport Cap
Note: Conserve all packing material until the instrument
has been observed to function correctly. Any defective
item must be returned in its original packing.

General Description

The HI 93714 meter measures the cyanide (CN ) content in
–
water, wastewater and seawater in the 0.000 to 0.200
mg/L (ppm) range.
The meter uses an exclusive positive-locking system to ensure
that the cuvet is in the same place every time it is placed
into the measurement cell.
The reagents are in powder form and are supplied in bottles
with spoon (Reagent A) and in packets (Reagents B and C).
Display codes aid the user in routine operations.
The meters have an auto-shut off feature that will turn the
instrument off after 10 minutes of non-use.

Specifications

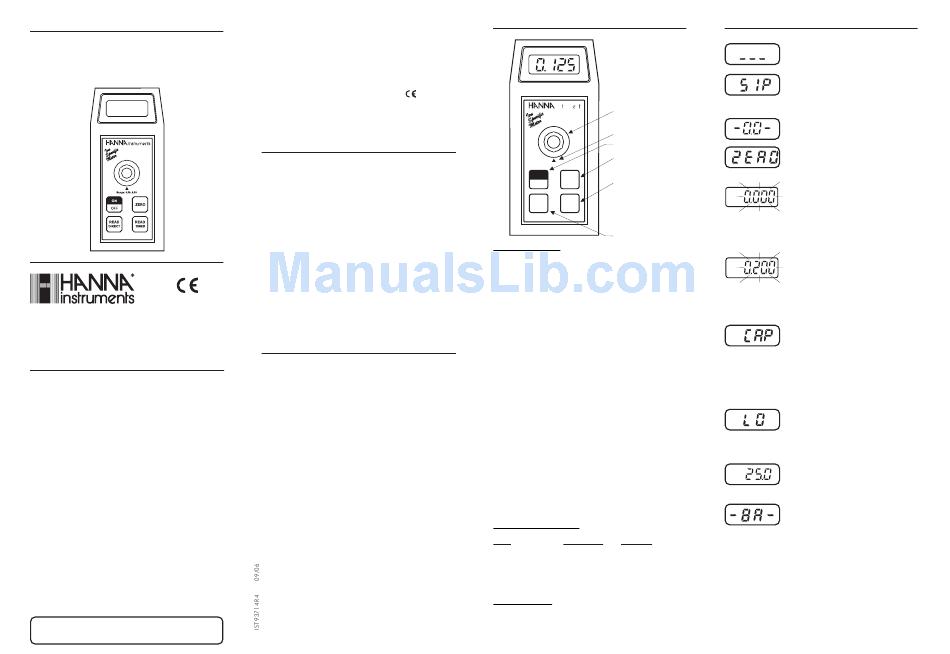

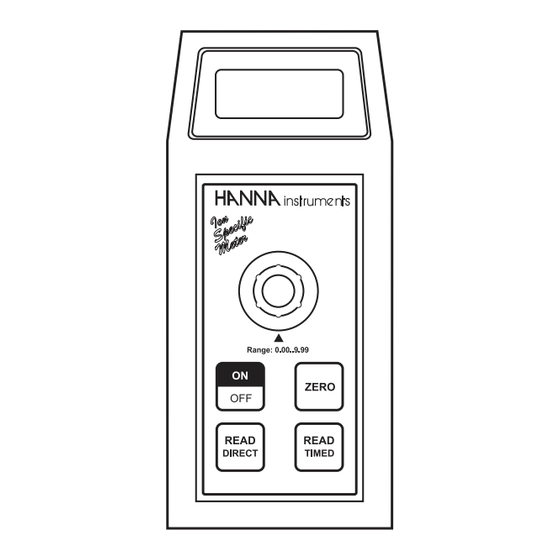

CUVET HOLDER
ins rum n s
CYANIDE
CUVET
ALIGNMENT INDICATOR
ON/OFF
ZERO
Range: 0.000..0.200 ppm
ON
ZERO
READ TIMED
OFF
READ READ
DIRECT TIMED
HI 93714
READ DIRECT
SPECIFICATIONS
Range 0.000 to 0.200 mg/L
Resolution 0.001 mg/L
Accuracy ±0.005 mg/L ±3% of reading
Typical EMC ±0.001 mg/L
Deviation
Light Source Light Emitting Diode @ 585 nm
Method Adaptation of the Standard Methods
for the Examination of Water and
Wastewater, 18 edition, Pyridine-
th
Pyrazalone method. The reaction
between cyanide and reagents causes a
blue tint in the sample.
Light Detector Silicon Photocell
Environment 0 to 50°C (32 to 122°F);
max 95% RH non-condensing
Battery Type/Life 1 x 9 volt/40 hours
Auto-Shut off After 10' of non-use
180 x 83 x 46 mm (7.1 x 3.3 x
Dimensions
1.8")
Weight 290 g (10 oz.).
REQUIRED REAGENTS
Code Description Quantity
HI 93714A-0 Reagent A 1 spoon
HI 93714B-0 Reagent B 1 packet
HI 93714C-0 Reagent C 1 packet
REAGENT SETS
HI 93714-01 Reagents for 100 tests
HI 93714-03 Reagents for 300 tests
Display Code Guide
This indicates that the meter is in a ready
state and zeroing can be performed.
Sampling in Progress. This prompt appears
each time the meter is performing a
measurement.
This indicates that the meter is in a zeroed
state and measurement can be performed.
A zero reading was not taken. Insert a
sample before adding reagent and press
ZERO.
Under range. A blinking "0.000" indicates
that the sample absorbs less light than the
zero reference. Check the procedure and
make sure you use the same cuvet for
reference (zero) and measurement.
Over range. A flashing value higher than
the maximum concentration readable (see
specifications) indicates that the sample
absorbs too much light, meaning that the
concentration is too high. Dilute the sample.
Light over range. The cuvet is not inserted
correctly and an excess ambient light is
reaching the detector. If the cover is
properly installed, then contact your dealer
or the nearest Hanna Customer Service
Center.
Light under range. The zero sample is too
dark for proper zeroing. If this is not the
case, contact your dealer or the nearest
Hanna Customer Service Center.
The "V" indicates that the battery voltage
V
is getting low and the battery needs to be
replaced.
This indicates that the battery is dead and
must be replaced.
Note: once this indication is displayed,
the meter will lockup. Change the battery
to restart.
