Halcro MC50 Schematic Diagram

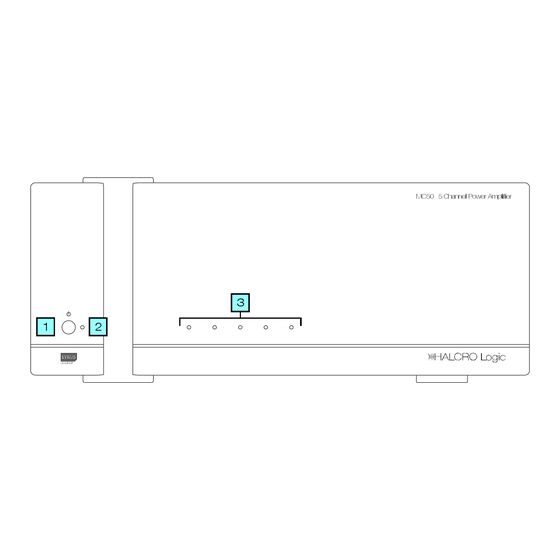

MC50 Front Panel
1 Standby/On button
2 Channel/Module LEDs
3 Amplifier Status Indicators
L-R, modules 1,2,3,4,5)
MC50 Rear Panel
Manufactured
in Australia
4 Communications Card
5 RS232 Serial Connection
6 Remote Trigger Input
7 Ethernet Connection
8 Balanced Voltage Input
9 Selector Switch
MC50 front & rear panels
5 4
Left Front Left Rear
3 2
Center Right Rear Right Front
10 Unbalanced Voltage Input
11 Loudspeaker Connections
12 Master On/Off Switch
13 Fus e (F10AL 250V)
14 Mains Inlet Socket
15 Lyrus Amplification Modules (1-5)
RISK OF ELECTRIC
SHOCK
DO NOT OP EN
CAUTION
1
