Halcro MC30 Schematic Diagram
3 channel power amplifier, front & rear panels
Hide thumbs
Also See for MC30:
- Owner's manual (55 pages) ,
- Owner's manual (55 pages) ,
- Owner's manual (48 pages)
Advertisement
Quick Links
Download this manual
See also:
Owner's Manual

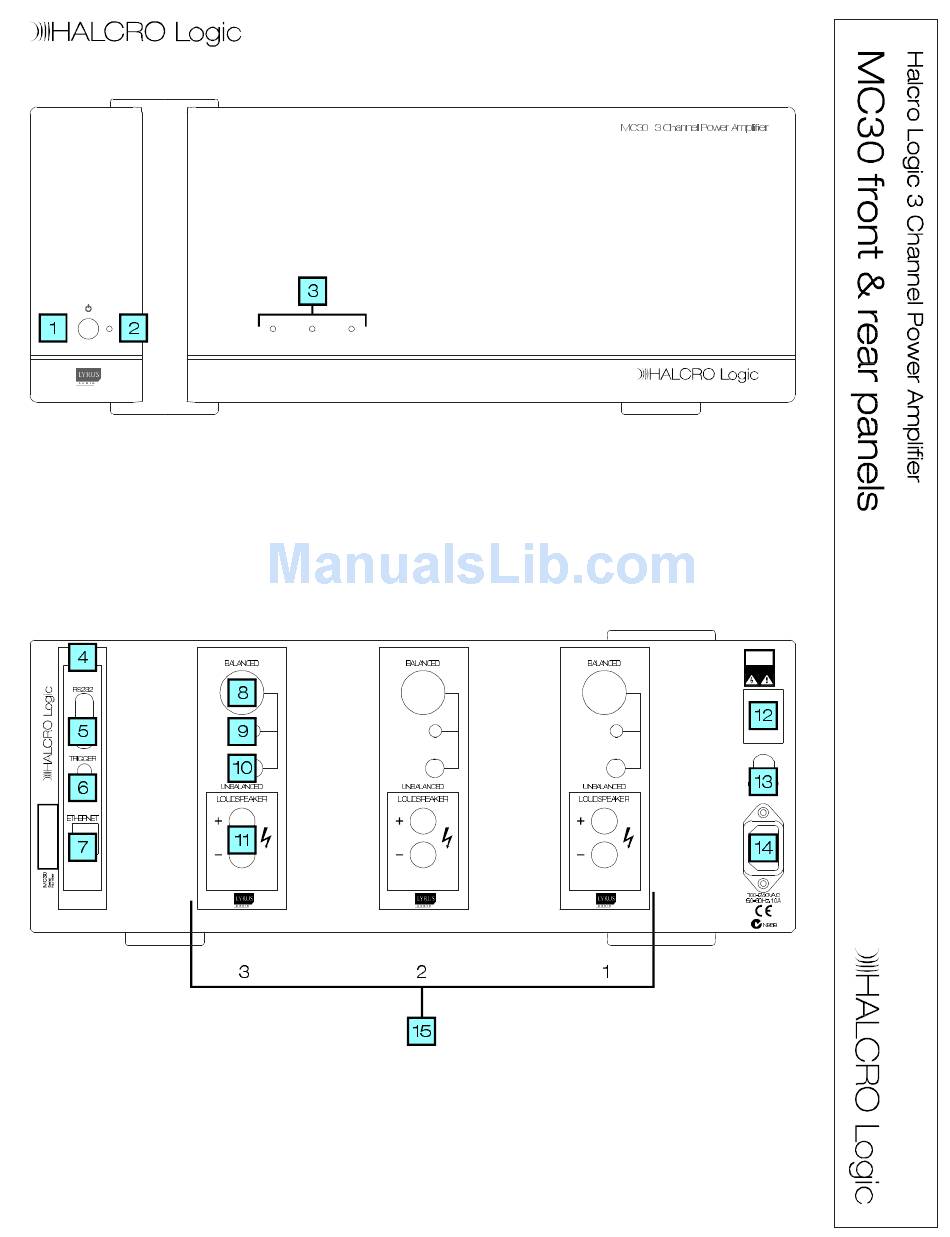

MC30 Front Panel
1
Standby/On button
2
Channel/Module LEDs
3
Amplifier Status Indicators
(L-R, modules 1,2,3)
MC30 Rear Panel
Manufactured
in Australia
4
Communications Card
5
RS232 Serial Connection
6
Remote Trigger Input
7
Ethernet Connection
8
Balanced Voltage Input
9
Selector Switch
MC30 front & rear panels
3
Left Front
2
Center
Right Front
10 Unbalanced Voltage Input
11
Loudspeaker Connections
12 Master On/Off Switch
13 Fus
e (F10AL 250V)
14 Mains Inlet Socket
15 Lyrus Amplification Modules (1-3)
RISK OF ELECTRIC
SHOCK
DO NOT OP EN
CAUTION
