Elkay Hi-Arc LKE413945RS Specifications

SPECIFICATIONS

GENERAL

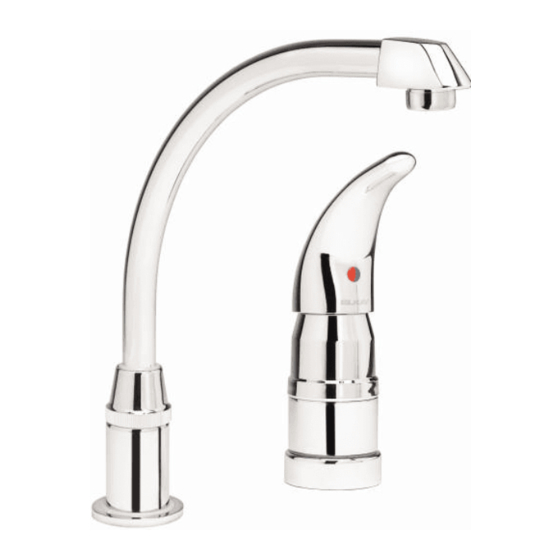

LKE413945RS Single-lever kitchen faucet with circular brass
base finished in a polished heavy chrome plate. Tubular brass
hi-arc contemporary style, 6-1/2" 45° restricted swing spout
with restricted flow aerator. Removable cartridge. Temperature
and flow controlled by one movement of the single-lever
handle. All operating parts are replaceable from above deck.
3/8" O.D. copper tube connections. Requires two faucet holes.
Ship. Wt. 3-3/4 lbs.
This faucet is ADA compliant.
This faucet is certified to ANSI/NSF61.

MAXIMUM FLOW RATE

2.5 GPM/9.5 L/min AT 80 P.S.I.G.
2.2 GPM/8.3 L/min AT 60 P.S.I.G.
6-1/2" (165mm)
4"
(102mm)
ELKAY LIMITED LIFETIME FAUCET WARRANTY ON RESIDENTIAL FAUCETS
Limited Lifetime Functional and Finish Warranty
Elkay warrants to the original consumer purchaser that the Elkay faucet pur-
chased will be free from defects in material and workmanship for as long as the
original consumer purchaser owns the faucet. Elkay will, at its option, supply
replacement parts (or if no longer available a comparable product) if the faucet
fails due to a defect in material or workmanship. This warranty does not apply
in the event of product surface damage caused by abuse, misuse or improper
care and maintenance. This warranty excludes damage caused by harsh or
abrasive cleaners and/or materials. This warranty excludes all industrial, com-
mercial and business use, whose purchasers are hereby extended a limited
lifetime on mechanical parts and 5 years on finish. Product replacement does
not include transportation cost or labor installation cost. Elkay reserves the
right to examine product in question and its installation prior to replacement.
OTHER WARRANTY CONDITIONS ON FAUCETS
Our warranty does not cover product failure or damage caused by abusive
treatment, misuse, environmental factors, improper care and cleaning, or
damage due to handling or faulty installations. This warranty is extended only
to the original consumer purchaser of the product. This warranty does not
cover shipping costs, labor costs, or any other charges for such items as in-
stallation or replacement of the sink, diagnosis or replacement of any faucet or
component part, or any other expense or loss.
Elkay
www.elkayusa.com
®
LONG
10"
(254mm)
10" (254mm)
LONG TUBES
3/8" DIA.
2222 Camden Court
Oak Brook, IL 60523
Hi-Arc ® Single-Lever Kitchen Faucet
Model LKE413945RS

CARTRIDGE

Maintenance-free, drip-free washerless
cartridge that is completely self-contained
and easily removable.
A simple cam-activated movement of the
diaphragm controls the flow of water with a
feather-lite touch. Full off to full on with a
150° turn.
No springs. No wearing action and no
moving parts exposed to water.
All incidental or consequential damages are specifically excluded. No
additional warranties, express or implied are given. Any implied warranty,
including one of merchantability or fitness for a particular purpose, is
limited to the duration of this written warranty.
Some states do not allow the exclusion or limitation of incidental or con-
sequential damages or limitations on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay
Attention: Consumer Services
2222 Camden Court
Oak Brook, IL 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b. Description of nature of defect
c. Model number or description of model and/or component part if
possible.
Model LKE413945RS
Printed in U.S.A.
©2004 Elkay
5-72A
(Rev. 3/04)
