Elkay LKD2490 Specifications

SPECIFICATIONS

GENERAL

LKDA2480 Dual Clear Crystalac handles. Deck-mounted
stainless steel escutcheon with 5-1/2" tubular swing spout
threaded for hose attachment, finished in gleaming chrome
plate. Removable cartridges. All operating parts are replace-
able from above deck. Requires 2 faucet holes on 4" centers.
Ship. Wt. 2 lbs.
LKD2490 Same as LKDA2480 except with
handles. Ship. Wt. 2 lbs.
LKD2490BH Same as LKDA2480 except with 4"
Ship. Wt. 2-3/4 lbs.
Maximum Countertop Thickness: 1" (25mm).
COMPLIES WITH:
ASME A112.18.1M
CSA B125-01
NSF/ANSI 61
ADA (LKD2490BH Only)
U P
C
C ®
MAXIMUM FLOW RATE
2.5 GPM/9.5 L/min AT 80 P.S.I.G.
2.2 GPM/8.3 L/min AT 60 P.S.I.G.
5-1/2"
(139.7mm)
4"
(101.6mm)
LKDA2480 Illustrated
ELKAY LIMITED LIFETIME FAUCET WARRANTY ON RESIDENTIAL FAUCETS
Limited Lifetime Functional and Finish
Elkay warrants to the original consumer
chased will be free from defects in material and workmanship for as long as the
original consumer purchaser owns the faucet. Elkay will, at its option, supply
replacement parts (or if no longer available a comparable product) if the faucet
fails due to a defect in material or workmanship. This warranty does not apply
in the event of product surface damage caused by abuse, misuse or improper
care and maintenance. This warranty excludes damage caused by harsh or
abrasive cleaners and/or materials. This warranty excludes all industrial, com-
mercial and business use, whose purchasers are hereby extended a limited
lifetime on mechanical parts and 5 years on finish. Product replacement does
not include transportation cost or labor installation cost. Elkay reserves the
right to examine product in question and its installation prior to replacement.
OTHER WARRANTY CONDITIONS ON FAUCETS
Our warranty does not cover product failure or damage caused by abusive
treatment, misuse, environmental factors, improper care and cleaning, or
damage due to handling or faulty installations. This warranty is extended only
to the original consumer purchaser of the product. This warranty does not
cover shipping costs, labor costs, or any other charges for such items as in-
stallation or replacement of the sink, diagnosis or replacement of any faucet or
component part, or any other expense or loss.
Elkay
www.elkayusa.com
®
chrome plated lever
blade handles.
4-1/4"
(107.9mm)
1-7/8"
(47.6mm)
(101.6mm)
1" PIPE THD.
LKD2490 Illustrated
Warranty
purchaser that the Elkay faucet pur-
Models LKDA2480, LKD2490 and LKD2490BH
5-1/2"
(139.7mm)
4"
(101.6mm)
1-7/8"
(47.6mm)
4"
1/2"
PIPE
THD.
All incidental or consequential damages
additional warranties, express or implied are given. Any implied warranty,
including one of merchantability or fitness for a particular purpose, is
limited to the duration of this written warranty.
Some states do not allow the exclusion or limitation of incidental or con-
sequential damages or limitations on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay
Attention: Consumer Services
2222 Camden Court
Oak Brook, IL 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b. Description of nature of defect
c. Model number or description of model and/or component part if
possible.
2222 Camden Court
Oak Brook, IL 60523

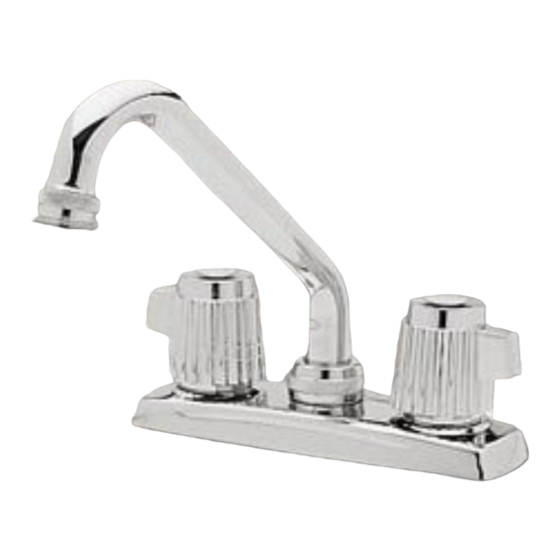

Dual Handle Laundry Faucet
Model LKDA2480
5-1/2"
(139.7mm)
(101.6mm)
(47.6mm)
4"
1/2"
(101.6mm)
PIPE
THD.
LKD2490BH Illustrated
are specifically excluded. No
Printed in U.S.A.
©2005 Elkay
(10/05)
4"
1-7/8"
5-139
