Elkay LKA2479 Specifications

Dual Handle
Bar Faucet
Model LKA2479

SPECIFICATIONS

GENERAL

LKA2479 Dual handle, top mount mixing faucet with stainless
steel escutcheon. Clear Crystalac handles. Tubular swing
spout with aerator. Overall height 7-9/16". Removable Diacore
cartridges. A 150° turn of the handle controls water from drip-
free off to full on. All operating parts are replaceable from
above deck. Requires 2 faucet holes on 4" centers. Ship. Wt.
2-1/2 lbs.

MAXIMUM FLOW RATE

2.5 GPM/9.5 L/min AT 80 P.S.I.G.
2.2 GPM/8.3 L/min AT 60 P.S.I.G.
U L This faucet is classified by Underwriters Laboratories
Inc. to ANSI/NSF61.
®
4"
(102mm)

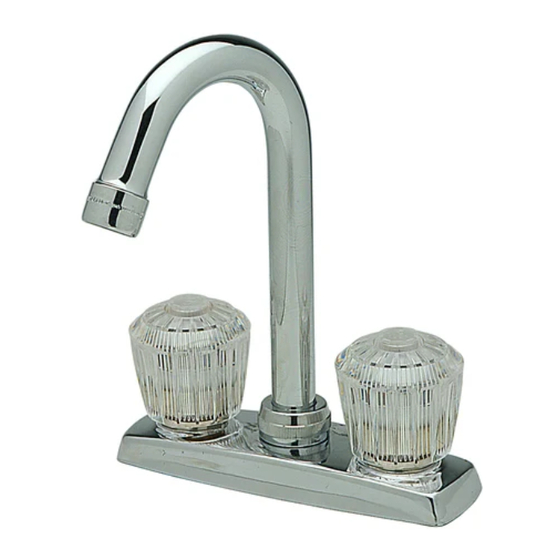

LKA2479 Illustrated
Elkay warrants its faucet and water dispensers to be free of defects in work-
manship and material for a period of one year from the date of purchase.
Replacement parts are available from Elkay for a nominal charge. Upon return
of a defective part to Elkay during the warranty period with written notice of
the claimed defect, Elkay will refund the replacement charge.
WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER
WARRANTY CONDITIONS:
Our warranty does not cover product failure caused by abusive treatment,
misuse, or damage due to handling or faulty installations. This warranty is
extended only to the original consumer purchaser of the product. This war-
ranty does not cover shipping costs, labor costs, or any other charges for
such items as installation or replacement of the sink, diagnosis or replacement
of any faucet or component part, or any other expense or loss.
ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY
EXCLUDED. NO ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE
GIVEN. ANY IMPLIED WARRANTY, INCLUDING ONE OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY.
Elkay Manufacturing Company
www.elkay.com
3-1/2" 7-9/16"
(88mm) (193mm)
4-3/4"
(121mm)
1-7/8"
(48mm)
ELKAY FAUCET/WATER DISPENSERS LIMITED WARRANTY
Model LKA2479

CARTRIDGE

Maintenance-free, drip-free washerless
cartridge that is completely self-contained
and easily removable.
A simple cam-activated movement of the
diaphragm controls the flow of water with a
feather-lite touch. Full off to full on with a
150° turn.
No springs. No wearing action and no
moving parts exposed to water.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts,
so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay Manufacturing Company
Attention: Consumer Service
2222 Camden Court
Oak Brook, Illinois 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b. Description of nature of defect
c. Model number or description of model and/or component part if
possible.
2222 Camden Court
Oak Brook, IL 60523
®
Printed in U.S.A.
©2001 Elkay Mfg. Co.
5-73
(8/01)
