Carrier KAAWS0101AAA Installation Instructions

KAAWS0101AAA
NOTE: Read the entire instruction manual before starting the installation.

SAFETY CONSIDERATIONS

Installing and servicing air conditioning equipment can be
hazardous due to system pressures and electrical components. Only
trained personnel should install or service air conditioning
equipment.
Untrained personnel can perform basic maintenance functions such
as cleaning coils, or cleaning and replacing filters. All other
operations should be performed by trained service personnel.
When working on air conditioning equipment, observe precautions
in the literature, on tags, and on labels attached to the unit.
Recognize safety information. This is the safety- -alert symbol
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury.
Understand these signal words; DANGER, WARNING, and
CAUTION. These words are used with the safety- -alert symbol.
DANGER identifies the most serious hazards which will result in
severe personal injury or death.
which could result in personal injury or death. CAUTION is used
to identify unsafe practices which may result in minor personal
injury or product and property damage. NOTE is used to highlight
suggestions which will result in enhanced installation, reliability, or
operation.
Follow all safety codes. Wear safety glasses and work gloves.
WARNING
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or
death.
Before beginning any installation or modification, be sure the
main electrical disconnect switch is in the OFF position. TAG
THE DISCONNECT SWITCH WITH
WARNING LABEL.
This kit is for 24 VAC applications ONLY. Do Not use or
connect to any high voltage wiring.
CAUTION
!
CUT HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care and
wear appropriate protective clothing and gloves when
handling parts.

Installation Instruction

! !
.
WARNING signifies hazards
A SUITABLE

Winter Start Control

INTRODUCTION

This instruction covers the installation of winter start control Part
No. KAAWS0101AAA on split- -system air conditioners. The
device is designed to alleviate nuisance opening of the
low- -pressure switch by bypassing it for the first 3 minutes of
operation.

DESCRIPTION AND USAGE

Winter start control must be used where low evaporator
temperatures, or nuisance tripping of low- -pressure switch may be
encountered.

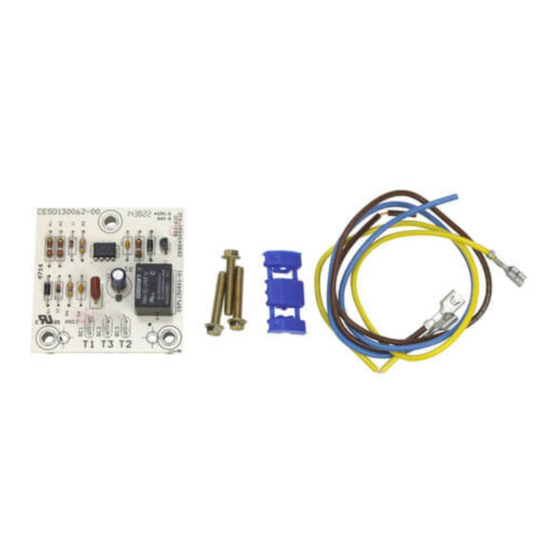

The kit contains the following items:
(1) Time- -Delay Relay (TDR) CESO130062- -00
(1) Installation Instructions
(1) 13" (330 mm) Blue (tap) Wire
(1) 13" (330 mm)Yellow Wire
(1) 13" (330 mm) Brown Wire
(1) Insulated Tap Connector (HY89TC014)
(3) Screws
Use only the kit components described in this installation
procedure.
