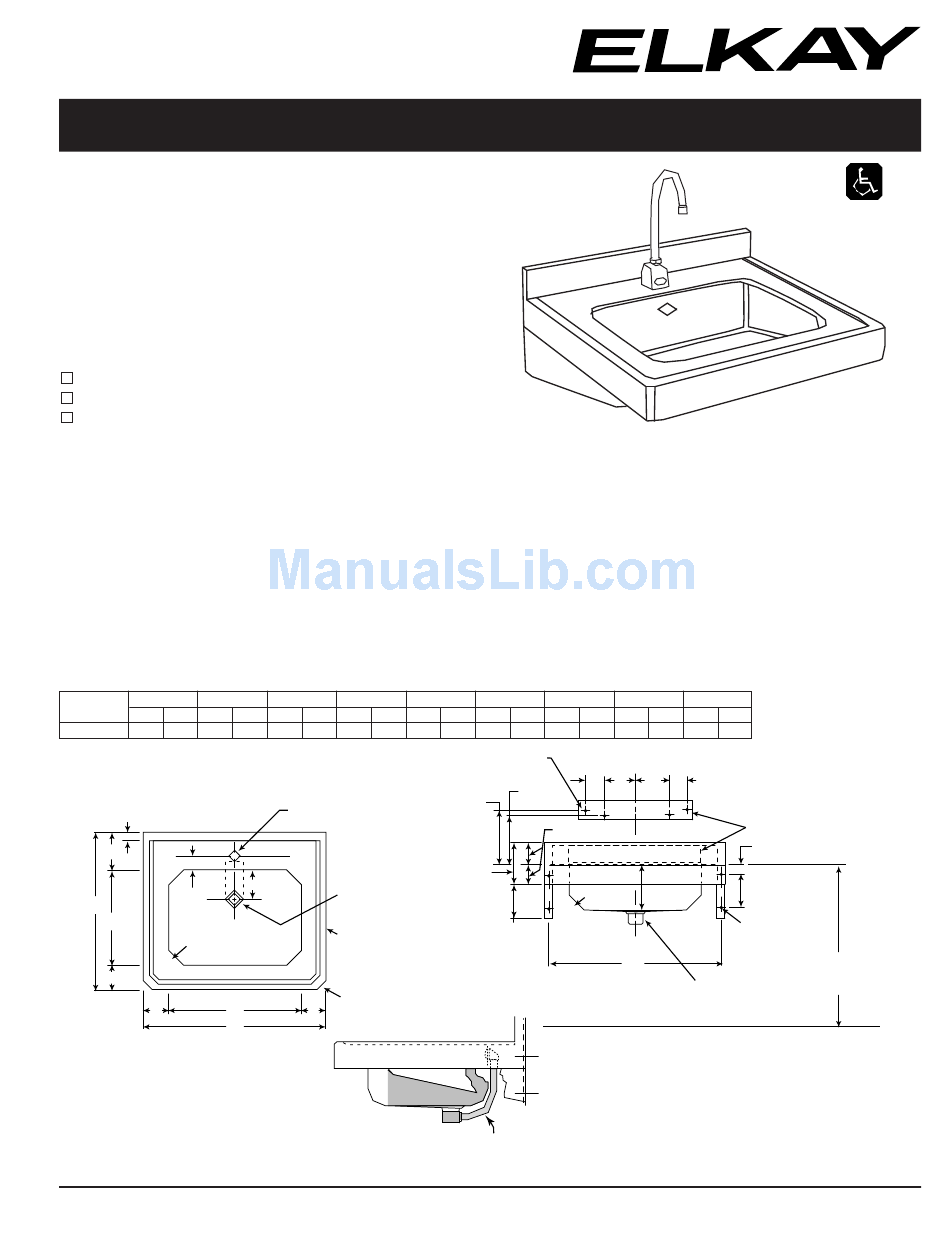

Elkay ELVWO2219SBC Specifications

Lavatory Sink With Overflow
Wall Mounted With Sensor Faucet
Battery Powered, Models ELVWO2219SBC,
ELVWO2219SBMC and ELVWO2219SBTMC
SPECIFICATIONS
GENERAL

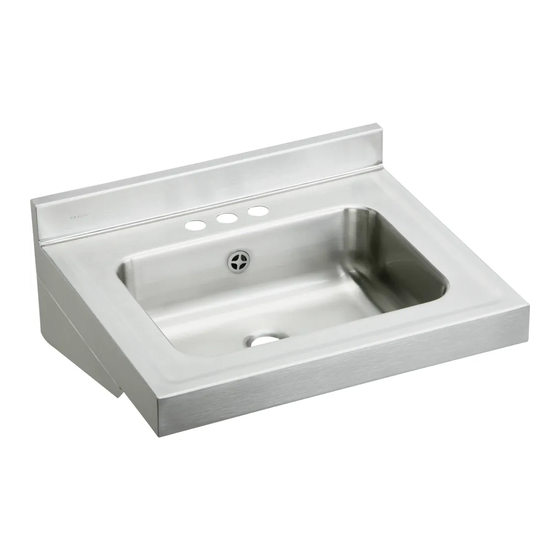

ELVWO2219 #18 gauge, type 304 (18-8) stainless steel lavatory
with 5/32" (4mm) raised rim and 2-1/2" (64mm) high back-
splash. Compartment has 1-3/4" (44mm) radius vertical and
horizontal coved corners. 2-1/2" (64mm) apron at front and
both sides. Exposed surfaces are hand blended to a uniform
satin luster finish. Rear centered outlet. Drain opening 1-5/8"
(41mm). Underside is sound deadened. Furnished with integral
stainless steel support brackets and separate wall hanger. With
connected overflow. Meets ADA requirements.
(CHECK MODEL SPECIFIED)
MODEL
ELVWO2219SBC
ELVWO2219SBMC
ELVWO2219SBTMC
LK721B Sensor-operated, non-mixing (tempered water), deck-
mounted gooseneck faucet with adjustable sensor eyes. A
continuous beam is emitted from sensor. The sensor faucet is
activated by user placing hands under the spout. Tempered
water will flow as long as hands remain within sensor range.
When hands are removed, the water stops automatically based
on shut off delay settings. The sensor then resets and is ready
for the next user. Battery powered and has a battery holder with
(4) AA batteries. Chrome plated - solid brass body construction
and 12-1/2" (318mm) high from deck to top of spout, 8-1/4"
(210mm) from deck to spout outlet, 5-3/8" (137mm) reach C.P.
spout with 2.0 gpm laminar flow control on spout end. Includes
vandal-resistant, water-resistant sensor control module with
armored vandal-resistant control and power cables, slow-
closing piston operated solenoid valve, in-line filter with clean
DIMENSIONS
A B
Model
Number in. mm in.
ELVWO2219 22 559 19
1"
(25mm)
F
1-3/4"
B
(44mm)
D
1-3/4"
(44mm)
E
E C
A
Elkay Manufacturing Company
www.elkay.com
MIXING
FAUCET VALVE
LK721B NONE
LK721B LK724
LK721B LK723
C D
mm in. mm in. mm in.
483 16 406 11 1 / 292 3
2
1/4" (6mm) x 1" (25mm)
1-1/4" (32mm) DIA.–
1 HOLE
G
1-5/8" (41mm)
DIA. HOLE
RAISED RIM
FRONT & ENDS
1" RADIUS
E (25mm)
out trap, and 3/8" (10mm) stainless steel braided 12" (305mm)
supply line. Control circuit is solid state, has adjustable sensor
range (6" [152mm] preset to 30" [762mm]), shut off delay pre-
set at 1 second and field adjustable to 2, 4, or 8 seconds, and
automatic time-out feature (to prevent sink overflow) is preset
at 0 seconds and is field adjustable to 15, 30, or 60 seconds.
LK723 Anti-scald thermostatic mixing valve with nickel-plated
brass body 1/2" (13mm) SWT inlets and outlet connections,
check valves on inlets and a mixed temperature range of 80°-
120°F. Certified under ASSE1016.
LK724 Mechanical mixing valve with C.P. brass body, 3/8"
(10mm) compression inlets and outlet connections, and check
valves on inlets.
E F G
mm in. mm in. mm
76 4 1 / 114 3 1 / 89
2 2
4 SLOTS
H I
5/8"
15/16" (16mm)
(24mm)
2-1/2"
(64mm)
5"
(127mm)
1-3/4" R
(44mm)
4"
(102mm)
(533mm)
OVERFLOW
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
2222 Camden Court
Oak Brook, IL 60523
Model ELVWO2219SBC
H I
in. mm in. mm
2 5 / 67 4 15 / 125
8 16
I H
WALL HANGER
1/4"
(6mm)
TOP OF RIM
5"
5-1/2"
(127mm)
(140mm)
3/8" (10mm) DIA.
2 HOLES EACH
BRACKET
21"
31-1/2" (800mm)
RECOMMENDED
STAINLESS STEEL HOUSING
WITH RUBBER WASHER
FURNISHED LOOSE
Printed in U.S.A.
©2001 Elkay Mfg. Co.
(3/01)
®
ADA
Compliant
TO FLOOR
3-36
