Installing the main unit
Installing the main unit

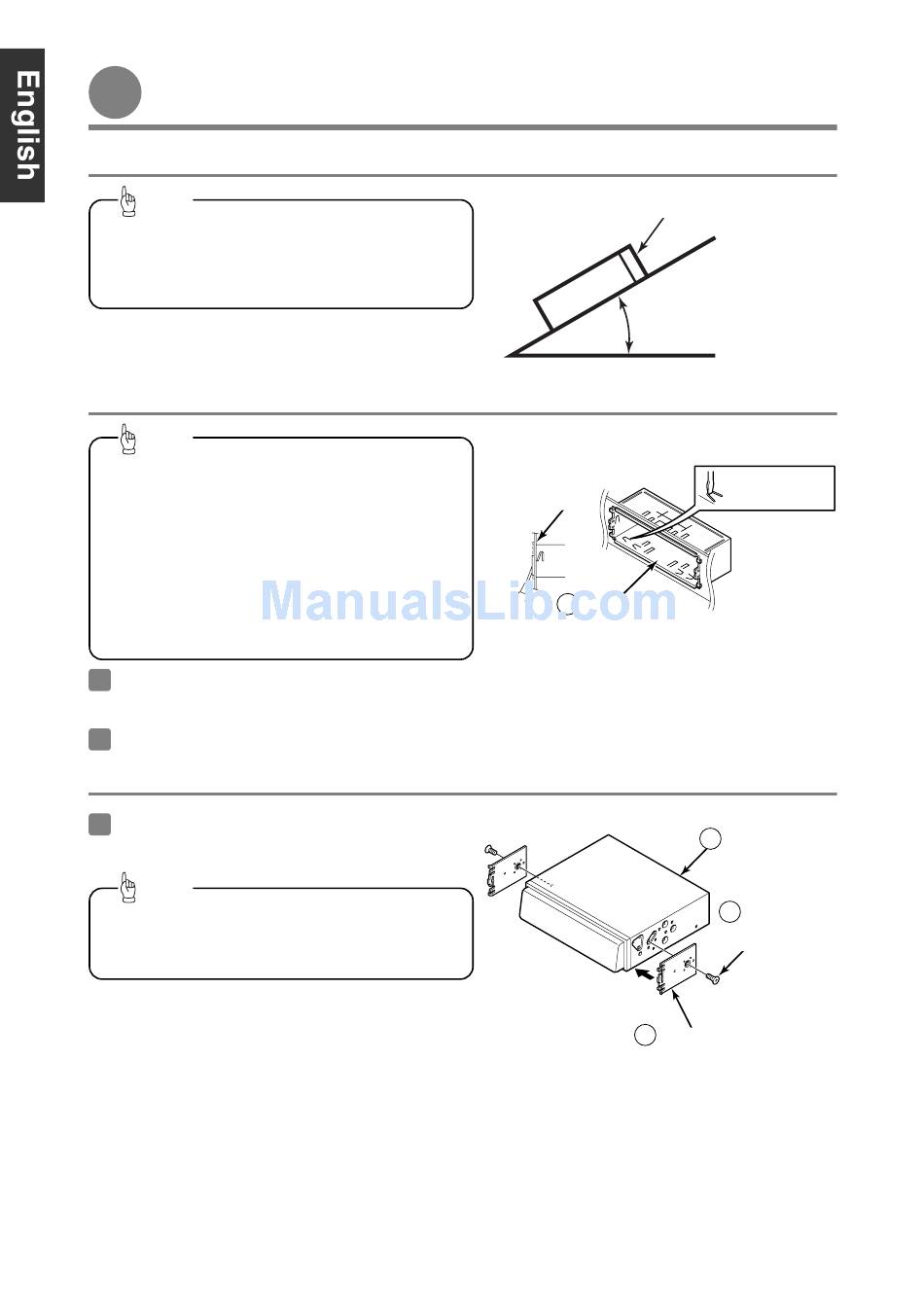

- Installation angle -

Tip
To maintain proper function, the main unit must
be mounted less than 30 degrees. If the angle is
in excess of 30 degrees, CD skipping or ejection
may occur.
- Mounting the main unit (If installing the main unit using the mounting sleeve) -
Tip
• • Carefully bind any excess length of wire that
is connected to the main unit and secure it
to an area of empty space in the vehicle so
that it does not not dislodge or interfere with
the main unit or vehicle-side equipment. If
t h e w i r e s a r e n o t h a n d l e d c o r r e c t l y ,
o p e r a t i n g p r o b l e m s o r s h o r t - c i r c u i t s m a y
occur, and this may result in the danger of
fire or other accidents.
• • Connect all wires before installing the main
unit.
1
Insert the mounting sleeve into the opening in the
vehicle dashboard or console box.
2 Use a screwdriver or a similar tool to bend the
tabs in the mounting sleeve to secure the

mounting sleeve.

3 Attach the side brackets to the main unit using
the supplied flathead screws.
Tip
Be sure to use the supplied accessory mounting
screws (Red:M5 x 8) as the mounting screws. If
any other screws are used, they may damage the
inside of the main unit.
Dashboard or
console box
3 Mounting sleeve
- 10 -
Front
30˚ or less
Level (reference)
Bend the mounting
tabs.
Main unit
1
Flat head screws
7
(Red:M5 x 8)
x 2
Side brackets
4
