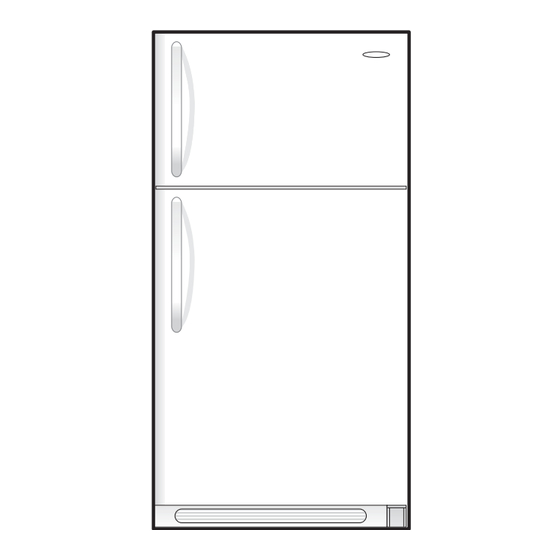

Frigidaire FRT21LR8D Factory Parts Catalog
Top-mount refrigerator with ice-maker
Hide thumbs
Also See for FRT21LR8D:
- Factory parts catalog (13 pages) ,
- Factory parts catalog (13 pages) ,
- Factory parts catalog (13 pages)
Advertisement
Quick Links
N05L00011.eps N05DFDBBA5.eps N05BAAABC5.eps N05SACAFX12.eps
N05CAAAAC5.eps 115-1.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FRT21LR8DKN FRT21LR8DSP
Series
R134a
Color
stain/blk (LH)
Volts
115
Wiring Diagram
240398801
Owner's Guide
240400112
Market
North America
Energy Guide
241538745
Service Data Sheet
240379014
Installation Instructions 240568300
240398801.eps 240398601.eps
Publication No.
5995451852
05/10/19
(EN/SERVICE/KHB)
390
R134a
stain/blk (RH)
115
240398801
240400112
North America
241538745
240379014
240568300
TOP-MOUNT
REFRIGERATOR WITH
ICE-MAKER
Model No.
FRT21LR8D
©
Copyright
All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FRT21LR8D
Summary of Contents for Frigidaire FRT21LR8D
- Page 1 Product No. FRT21LR8DKN FRT21LR8DSP Series R134a R134a Color stain/blk (LH) stain/blk (RH) Volts Wiring Diagram 240398801 240398801 Owner's Guide 240400112 240400112 Market North America North America Energy Guide 241538745 241538745 Service Data Sheet 240379014 240379014 Installation Instructions 240568300 240568300 TOP-MOUNT N05L00011.eps N05DFDBBA5.eps N05BAAABC5.eps N05SACAFX12.eps REFRIGERATOR WITH N05CAAAAC5.eps 115-1.eps...
- Page 2 Publication No: 5995451852 FRT21LR8D DOOR N05DFDBBA5 10/05...
- Page 3 FRT21LR8D Publication No: 5995451852 DOOR Model Index: A FRT21LR8D (FRT21LR8DKN) B FRT21LR8D (FRT21LR8DSP) POS. NO PART NO. DESCRIPTION 240514611 Gasket, seal, black, frzr door, magnetic 240514612 Gasket, seal, black, refr door, magnetic 240338303 Door, dairy, clear 240450363 Door, frzr, stainless steel, LH 240450364 Door, frzr, stainless steel, RH 240572601...
- Page 4 Publication No: 5995451852 FRT21LR8D CABINET N05BAAABC5 10/05...
- Page 5 FRT21LR8D Publication No: 5995451852 CABINET Model Index: A FRT21LR8D (FRT21LR8DKN) B FRT21LR8D (FRT21LR8DSP) POS. NO PART NO. DESCRIPTION 240355402 Cover-fan 240367001 Knob-damper control 5303212803 241523701 Damper-fan cover 5308000010 Fan Blade, red, evaporator fan 5300157666 Bushing-motor mtg, (2) 5303292396 Bracket-motor mtg, front 240313609 Cover-evap coil, w/light 240568606...
- Page 6 Publication No: 5995451852 FRT21LR8D SHELVES N05SACAFX12 10/05...
- Page 7 FRT21LR8D Publication No: 5995451852 SHELVES Model Index: A FRT21LR8D (FRT21LR8DKN) B FRT21LR8D (FRT21LR8DSP) POS. NO PART NO. DESCRIPTION 240358006 Shelf, freezer, full-width, wire 240545901 Diffuser-air, top 240362601 Diffuser, air, bottom 14 # 241554901 Switch-light/lamp 241555401 Light Bulb 240364201 Socket-light/lamp, dual 240368101 Control Box 17*#...
- Page 8 Publication No: 5995451852 FRT21LR8D SYSTEM N05CAAAAC5 10/05...
- Page 9 FRT21LR8D Publication No: 5995451852 SYSTEM Model Index: A FRT21LR8D (FRT21LR8DKN) B FRT21LR8D (FRT21LR8DSP) POS. NO PART NO. DESCRIPTION 240444401 Condenser, dynamic 218944001 Drier-filter, R134a System 241607001 Harness-wiring, machine compt 6* # 240388701 Wiring Harness, control box 6* # 241537701 Wiring Harness, freezer section, with light 14 # 240356217 Heater-defrost...
-
Page 10: Ice Maker
Publication No: 5995451852 FRT21LR8D ICE MAKER 10/05... - Page 11 FRT21LR8D Publication No: 5995451852 ICE MAKER Model Index: A FRT21LR8D (FRT21LR8DKN) B FRT21LR8D (FRT21LR8DSP) POS. NO PART NO. DESCRIPTION 218976901 Tube-water inlet, inlet valve, to ice maker 240561701 Seal-water inlet, inlet valve, to ice maker 5304420650 Spring, shut-off arm 3206299 Label, ID plate 3206301 Gear...
-
Page 12: Wiring Schematic
Publication No: 5995451852 FRT21LR8D WIRING SCHEMATIC 10/05... -
Page 13: Wiring Diagram
FRT21LR8D Publication No: 5995451852 WIRING DIAGRAM 10/05 # Functional Parts * Non-Illustrated Parts...
