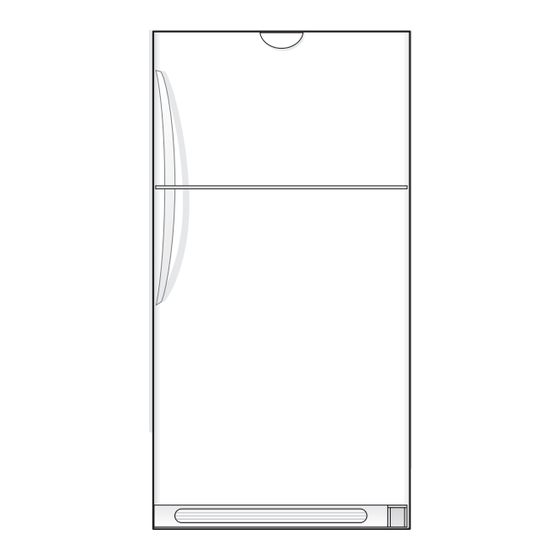

Frigidaire FRT21LR7A Factory Parts Catalog
Top mount refrigerator
Hide thumbs
Also See for FRT21LR7A:
- Factory parts catalog (15 pages) ,
- Factory parts catalog (13 pages) ,
- Factory parts catalog (13 pages)
Advertisement
Quick Links
Download this manual
See also:
Factory Parts Catalog
PRODUCT NO.
BASE MODEL NO.
FRT21LR7AB7
FRT21LR7A
FRT21LR7AQ7
FRT21LR7A
FRT21LR7AW7
FRT21LR7A
MARKET
North America
WIRING DIAGRAM - 240379010
OWNER'S GUIDE - 240400109
SERVICE DATA SHEET - 240379010
ELECTROLUX HOME PRODUCTS,INC.
P.O. Box 212378, Augusta, GA 30917
SERIES
COLOR
R134a
black
R134a
bisque
R134a
white
Publication No.
5995389086
030415
-EN/SERVICE /ECL
357
FACTORY
PARTS CATALO
VOLTS
115
115
115
TOP MOUNT
REFRIGERATOR
Model No.
FRT21LR7A
©2003 Electrolux Home Products, Inc.
All rights reserved
G
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FRT21LR7A
Summary of Contents for Frigidaire FRT21LR7A
- Page 1 FACTORY PARTS CATALO PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRT21LR7AB7 FRT21LR7A R134a black FRT21LR7AQ7 FRT21LR7A R134a bisque FRT21LR7AW7 FRT21LR7A R134a white MARKET North America WIRING DIAGRAM - 240379010 OWNER’S GUIDE - 240400109 TOP MOUNT SERVICE DATA SHEET - 240379010 REFRIGERATOR Model No.
- Page 2 Publication No. FRT21LR7A 5995389086 DOOR 04/03...
- Page 3 FRT21LR7A Publication No. 5995389086 DOOR A = FRT21LR7A (FRT21LR7AB7) B = FRT21LR7A (FRT21LR7AQ7) C = FRT21LR7A (FRT21LR7AW7) POS. NO PART NO DESCRIPTION 240514611 A - - Gasket,seal ,black ,frzr door ,magnetic 240514607 - B C Gasket,seal ,white ,frzr door ,magnetic 240514612 A - - Gasket,seal ,black ,refr door ,magnetic...
- Page 4 Publication No. FRT21LR7A 5995389086 CABINET 04/03...
- Page 5 FRT21LR7A Publication No. 5995389086 CABINET A = FRT21LR7A (FRT21LR7AB7) B = FRT21LR7A (FRT21LR7AQ7) C = FRT21LR7A (FRT21LR7AW7) POS. NO PART NO DESCRIPTION 240355402 A B C Cover-fan 240367001 A B C Knob-damper control 5303001028 A B C Nut,push-on 240367401 A B C Damper-fan cover 5308000010 A B C...
- Page 6 Publication No. FRT21LR7A 5995389086 SHELVES 04/03...
- Page 7 FRT21LR7A Publication No. 5995389086 SHELVES A = FRT21LR7A (FRT21LR7AB7) B = FRT21LR7A (FRT21LR7AQ7) C = FRT21LR7A (FRT21LR7AW7) POS. NO PART NO DESCRIPTION 240358003 A B C Shelf,freezer ,full-width ,wire 5303299664 A B C Spacer,shelf 240545901 A B C Diffuser-air,top 240362601 A B C Diffuser,air ,bottom 240505801...
- Page 8 Publication No. FRT21LR7A 5995389086 SYSTEM 04/03...
- Page 9 FRT21LR7A Publication No. 5995389086 SYSTEM A = FRT21LR7A (FRT21LR7AB7) B = FRT21LR7A (FRT21LR7AQ7) C = FRT21LR7A (FRT21LR7AW7) POS. NO PART NO DESCRIPTION 240444401 A B C Condenser,dynamic 218944001 A B C Drier-filter,R134a System 240496101 A B C Wiring Harness,machine compt ,w/electric cord 6* # 240388701 A B C...
-
Page 10: Ice Maker
Publication No. FRT21LR7A 5995389086 ICE MAKER 04/03... - Page 11 FRT21LR7A Publication No. 5995389086 ICE MAKER A = FRT21LR7A (FRT21LR7AB7) B = FRT21LR7A (FRT21LR7AQ7) C = FRT21LR7A (FRT21LR7AW7) POS. NO PART NO DESCRIPTION 218976901 A B C Tube-water inlet,inlet valve ,to ice maker 5304420650 A B C Spring,shut-off arm 3206299 A B C Label,ID plate 3206301...
-
Page 12: Wiring Schematic
Publication No. FRT21LR7A 5995389086 WIRING SCHEMATIC 04/03... -
Page 13: Wiring Diagram
FRT21LR7A Publication No. 5995389086 WIRING DIAGRAM # = Fast-moving Parts 04/03 * = Non-Illustrated Parts...
