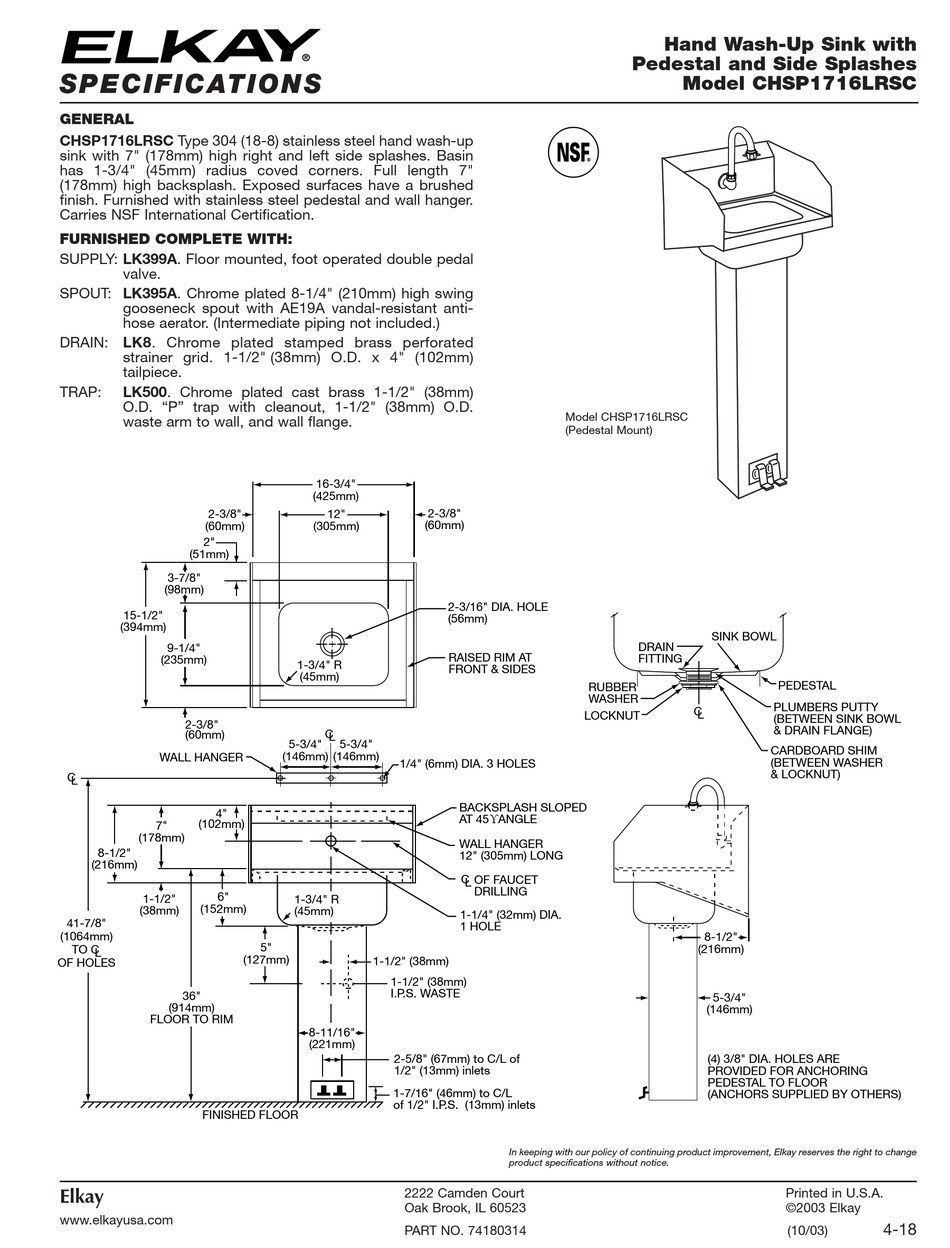

Elkay CHSP1716LRSC Specifications

SPECIFICATIONS

GENERAL
CHSP1716LRSC Type 304 (18-8) stainless steel hand wash-up
sink with 7" (178mm) high right and left side splashes. Basin
has 1-3/4" (45mm) radius coved corners. Full length 7"
(178mm) high backsplash. Exposed surfaces have a brushed
finish. Furnished with stainless steel pedestal and wall hanger.
Carries NSF International Certification.
FURNISHED COMPLETE WITH:
SUPPLY: LK399A. Floor mounted, foot operated double pedal
valve.
SPOUT: LK395A. Chrome plated 8-1/4" (210mm) high swing
gooseneck spout with AE19A vandal-resistant anti-
hose aerator. (Intermediate piping not included.)
DRAIN: LK8. Chrome plated stamped brass perforated
strainer grid. 1-1/2" (38mm) O.D. x 4" (102mm)
tailpiece.
TRAP: LK500. Chrome plated cast brass 1-1/2" (38mm)
O.D. "P" trap with cleanout, 1-1/2" (38mm) O.D.
waste arm to wall, and wall flange.
2-3/8"
(60mm)
2"
(51mm)
3-7/8"
(98mm)
15-1/2"
(394mm)
9-1/4"
(235mm)
2-3/8"
(60mm)
WALL HANGER
C L
4"
(102mm)
7"
(178mm)
8-1/2"
(216mm)
6"
1-1/2"
(152mm)
(38mm)
41-7/8"
(1064mm)
TO C L
OF HOLES
36"
(914mm)
FLOOR TO RIM
FINISHED FLOOR
Elkay
www.elkayusa.com
®
16-3/4"
(425mm)
12"
(305mm)
1-3/4" R
(45mm)
C L
5-3/4" 5-3/4"
(146mm) (146mm)
1/4" (6mm) DIA. 3 HOLES
1-3/4" R
(45mm)
5"
(127mm)
1-1/2" (38mm)
1-1/2" (38mm)
I.P.S. WASTE
8-11/16"
(221mm)
2-5/8" (67mm) to C/L of
1/2" (13mm) inlets
1-7/16" (46mm) to C/L
of 1/2" I.P.S. (13mm) inlets
2222 Camden Court
Oak Brook, IL 60523
PART NO. 74180314
Model CHSP1716LRSC
(Pedestal Mount)
2-3/8"
(60mm)
2-3/16" DIA. HOLE
(56mm)
RAISED RIM AT
FRONT & SIDES
RUBBER
WASHER
LOCKNUT
BACKSPLASH SLOPED
AT 45° ANGLE
WALL HANGER
12" (305mm) LONG
C L OF FAUCET
DRILLING
1-1/4" (32mm) DIA.
1 HOLE
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Hand Wash-Up Sink with
Pedestal and Side Splashes
Model CHSP1716LRSC
SINK BOWL
DRAIN
FITTING
PEDESTAL
PLUMBERS PUTTY
C L
(BETWEEN SINK BOWL
& DRAIN FLANGE)
CARDBOARD SHIM
(BETWEEN WASHER
& LOCKNUT)
8-1/2"
(216mm)
5-3/4"
(146mm)
(4) 3/8" DIA. HOLES ARE
PROVIDED FOR ANCHORING
PEDESTAL TO FLOOR
(ANCHORS SUPPLIED BY OTHERS)
Printed in U.S.A.
©2003 Elkay
(10/03)
