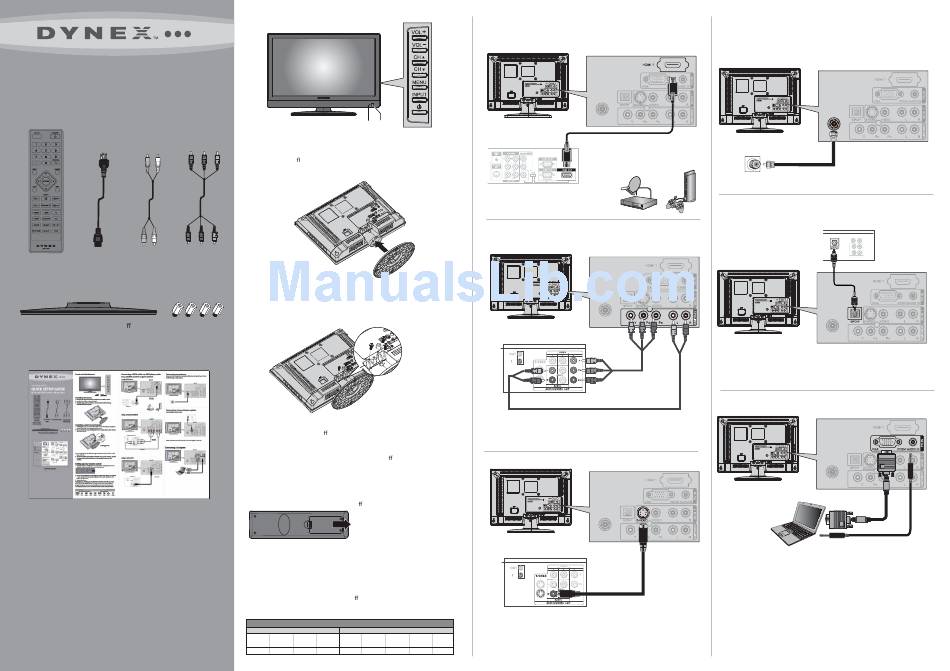

Dynex DX-15L150A11 Quick Setup Manual

15"/19"/22" LCD TV
QUICK SETUP GUIDE
DX-15L150A11/DX-19L150A11 /DX-22L150A11
AC power
L/R Audio cable Component
Remote
cord
video cable
control and 2
AAA batteries
TV stand and 4 stando screws
Quick Setup Guide
Front and side features
Power
Remote
indicator
control sensor
Installing the stand
1 Remove the stand from the box and place it on a table or bench.
2 Lay the TV on a at, cushioned surface.
3 Carefully align and insert the base into the stand until the locking
mechanism clicks into place.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the three screws holding the TV to its stand column, then remove
the stand column.
Locating grooves
3 Insert and lock the stando screws (provided) into into the 4 holes on the
back of the TV..
4 Secure the wall-mount bracket to the back of your TV by screwing four M4
screws provided with the bracket into the stando screws you just
installed.
Setting up your remote control
1 While pressing the release button on the battery compartment cover on
the back of the remote, lift the cover o the remote.
2 Insert two AAA batteries into the battery compartment. Make sure that the
+ and – symbols on the batteries align with the + and – symbols in the
battery compartment.
3 Replace the cover.
To program your existing universal remote control to work with your new
Dynex TV, see the table below for common codes. If you have problems
programming your remote or need a di erent remote control code, visit
www.dynexproducts.com for the latest remote control code information.
Universal remote control TV codes
(for all Dynex TVs manufactured after Jan. 1, 2007)
Universal remote control makers and models Set-top box makers and models
Philips
RCA One for All Sony Comcast Dish Network Motorola TIVO
PHDVD5, PH5DSS,
RCU807 URC-6690 RM-VL600 M1057 VIP508, VIP622 DRC800 Series 3, HD
PMDVR8, PDVR8
115 135 0464 8043 0463 720 0463 0091
Connecting a DVD or Blu-ray DVD player, cable
box, satellite receiver or game station
Using HDMI (best)
ANT/CABLE IN
ANT/CABLE IN
HDMI device
Using component (better)
ANT/CABLE IN
ANT/CABLE IN
Component video device
Audio Cable
Using S-video (fair)
ANT/CABLE IN
ANT/CABLE IN
Video device
DirectTV
RC23
10463
Connecting an antenna
Connect a 75 ohm cable (not included) to RF jack on the back of your TV and
the RF OUT jack on the antenna.
Back of TV
ANT/CABLE IN
HDMI cable
(not included)
Connecting a home theater system
Using digital audio cable:
Back of TV
ANT/CABLE IN
Component
Note: The DIGITAL OUTPUT jack only works with digital TV channels.
video cable
Connecting a Computer
ANT/CABLE IN
Back of TV
S-video cable
Back of TV
ANT/CABLE IN
AUDIO IN
Back of TV
ANT/CABLE IN
Back of TV
ANT/CABLE IN
