Summary of Contents for Elektra Beckum TopLine DH 315

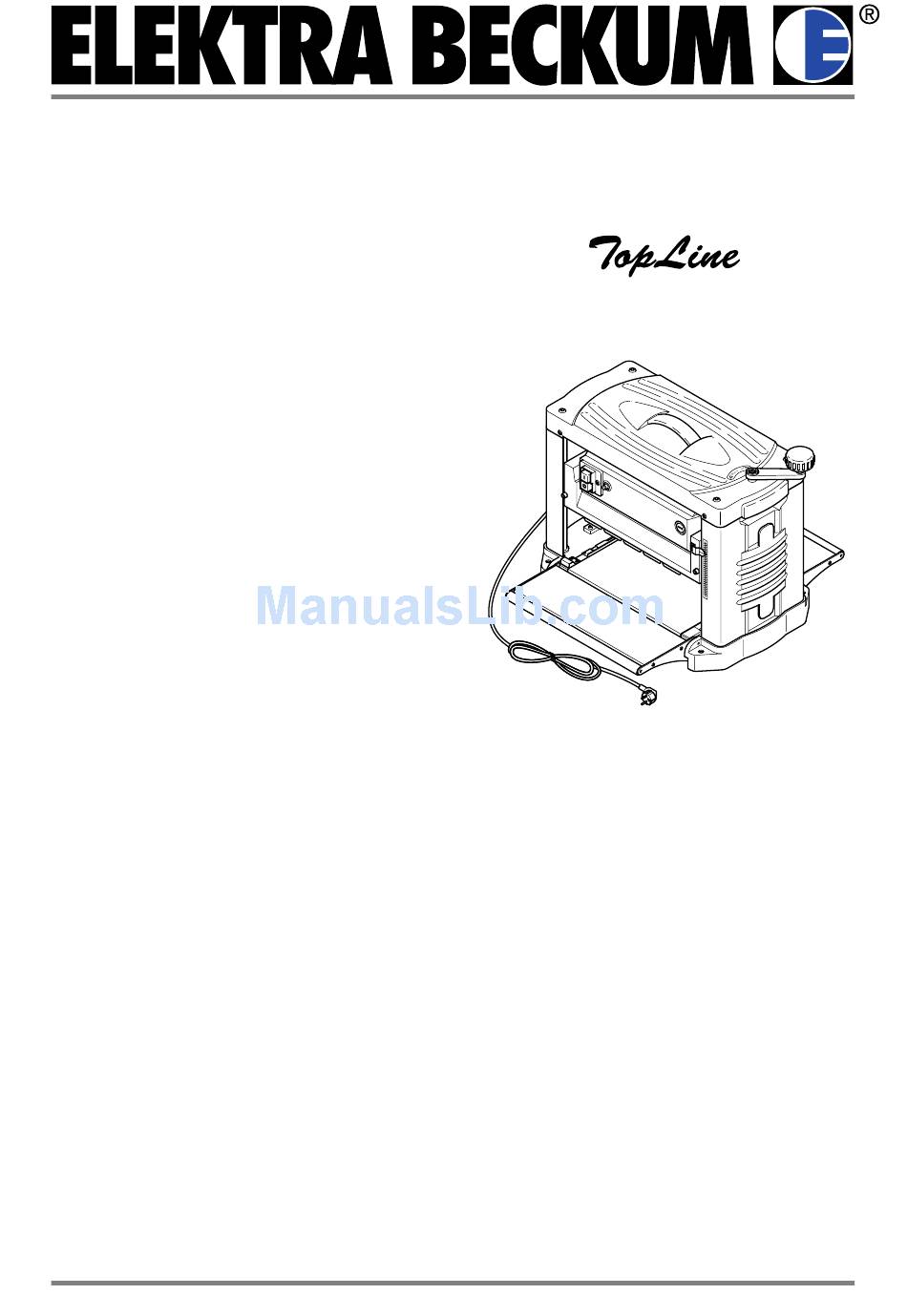

- Page 1 Operating Instruction Planer DH 315...
-
Page 2: Great Britain
Please return the enclosed warranty card to us. Retain proof of purchase! You are only entitled to claim warranty against Great Britain proof of purchase. Please see back cover for manufacturer representative´s address near- est you. Redaktion: Zindel • Technische Dokumentation und Multimedia • D-22417 Hamburg... - Page 3 Anti-kickback lock Reset button On/off switch Cutterblock cover Feed rollers Cable holder Power supply cable Outfeed table DH 315 Components inside the planer/thicknesser: Infeed roller Cutter knife Cutterblock Outfeed roller Standard accessories supplied: Mounting bolts for fixing the machine base...
-
Page 4: Read First
- electric shock as little as possible. Please note in particular: A planer is a dangerous tool which can, due to ope- rator carelessness, cause serious personal injury. It is therefore recommended you follow the safety information given below, and know and follow the legal regulations pertaining to the operation of pla- ners. -
Page 5: Safety Devices
Instead of the cutterblock cover a dust extraction adaptor can be installed. DH 315 Operating controls On/off switch · To switch ON = press green switch button. To switch OFF = press red switch button. -
Page 6: Installation And Connection
If the planer/thicknesser is to be used mobile: - screw the planer to a sheet of 19 mm ply- wood. This plywood sheet should on all sides project approx. 100 mm over the machine base. -
Page 7: Operation
Do not pull on power supply cable to unplug. · After the machine with all safety devices has been assembled, plug the power cable in. DH 315 Operation · Check the following for proper operation before starting work: - On/off switch;... -
Page 8: Care And Maintenance
Planing workpieces The planer can remove max. 3 mm material in one pass. This capacity, however, shall only be utilized: - with very sharp planer knives; - with soft timber; - if the max. planing width is not utilized. Otherwise there is a risk of overloading the machine.It is best to make several passes,... - Page 9 6. Unscrew the cutter knife lock bar screws. The cutter knives are being pushed up by springs when the screws are loosened. DH 315 7. Remove both cutter knife and lock bar. 8. Clean surfaces of cutterblock and lock bar.
- Page 10 Machine storage Danger! Store the machine so that - it can not be started by unauthorized per- sons, and that - nobody can get hurt by the stored machine. Caution! Do not store unprotected outdoors or in damp environment. DH 315...
-
Page 11: Machine Transportation
No-voltage relay trip- Switch on again. ped by a temporary power failure. No supply voltage Check cables, plug, outlet and mains fuse. DH 315 Motor does not run Motor overheated, Remove cause for e.g. by overheating, let cool - dull cutter knives... -
Page 12: Technical Specifications
230 V 50 Hz m/min dB (A) dB (A) FR : 9A C o r e F i l t e r ~ 230 V 50 Hz 1,5 kW 230 ~ 50 Hz 1500 10.000 31.5 230 V DH 315... -
Page 13: Spare Parts List
Spare parts list DH 315 Item Description Handle Chain set Cutterblock bearing block Rubber roller Lock bar with screws Pressure springs (4-pc. set) Drive belt with belt disc Crank assembly, rise and fall mechanism Cutter knives, pair Cutter knife setting gauge Stock-no. - Page 14 Switch c/w switch cap 138 864 9182 Carbon brushes (2-pc. set) 138 8649 174 Motor c/w gear case 138 5649 165 138 564 9157 811 664 9145 Description Stock-no. 101 164 9137 138 864 9123 101 164 9110 DH 315...
- Page 15 Technischer Leiter - Technical Manager - Le responsable technique - Chef techniek - Teknisk leder - Teknikansvarig Teknisk leder - Tekninen johtaja - Direttore teccnico - Director técnico - O director técnico D/GB/F/NL/DK/S/N/SF/I/E/P Dickenhobelmaschine DH 315 020 0031 504 89/392/EWG 93/68/EWG 89/336/EWG Directriz para baja tensión-UE - Directiva CE sobre baixa tensão...
- Page 16 Belgium Elektra Beckum Belgium N.V.S.A. Industriezone Hofte te Bollebeeklaan B-1730 Asse-Mollem Tel.: 0032-24540454 Fax: 0032-24540450 Deutschland Elektra Beckum AG Daimlerstraße 1 D-49716 Meppen Tel.: 01803-333 456 Fax: 01803-333 457 Danmark Elektra Beckum Danmark Lundeborgvej 9 Postbox 8113 DK-9220 Aalborg OE Tel.: 0045-98-151300...
