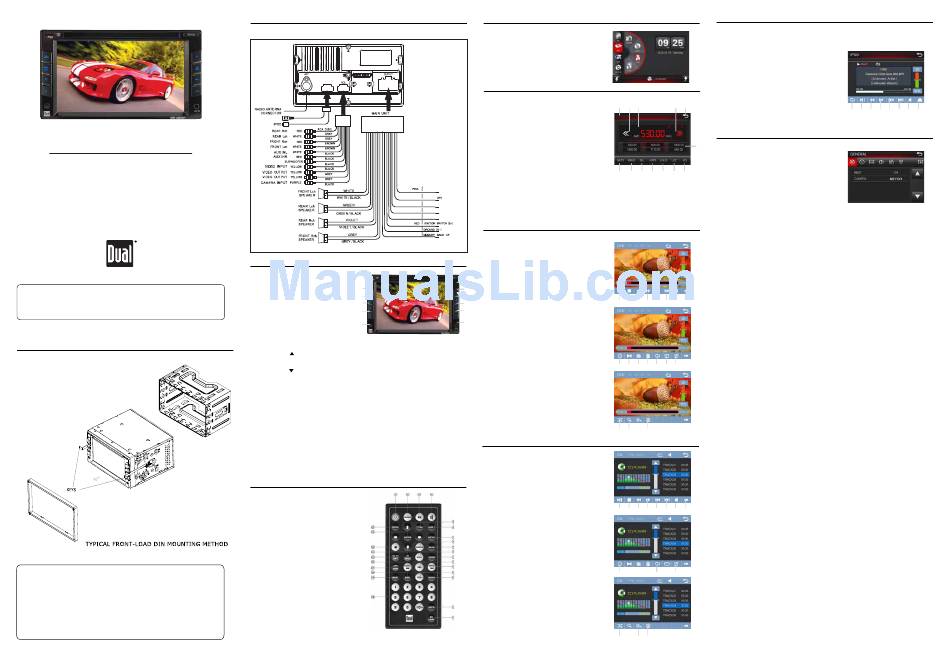

Dual XDVD1262 Quick Start Manual

XDVD1262
QUICK START GUIDE
DVD Multimedia Receiver with 6.2" Touch Screen Display
This Quick Start Guide gives you the basics to start using your XDVD1262.
Please visit www.dualav.com/support/manuals/XDVD1262.pdf
to download a complete Owner's Manual or call customer service at
1-866-382-5476.
Customer Service Toll Free: 1-866-382-5476
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.

Installation

Copyright and Trademark Notes

This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited. Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DVD Logo is a
trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.
microSD Logo is a trademark of SD-3C, LLC. iPod and iPhone are trademarks of Apple Inc., registered in the U.S.
and other countries. Dual Electronics Corporation is not affiliated with Apple, Inc. Other trademarks and
trade names are those of their respective owners.
Wiring Diagram – Inputs/Outputs
A
C B
C
USB
B
A
( (
( (
( (
( (
( (
( (
( (
( (
( (
( (
BRAKE
ORANGE CAMERA
BLUE/BLACK AMP CONTROL
BLUE POWER ANTENNA
ORANGE/BLACK ILLUMINATION CONTROL
BLACK
YELLOW

Control Locations

1. Micro SD Card Slot
1
2. Power/Mode
2
-Press to turn on the unit
3
-When in playback, press to select mode.
4
-When the unit is on, press and hold to
turn off unit. 5
3. Mute/TFT Standby
6
-When unit on, press and hold to turn off
the TFT.
4. Volume UP
-Press the VOL button to increase the volume.
5. Volume Down
-Press the VOL button to decrease the volume.
6. Infrared Sensor
7. Reset
-Press and hold to switch back to the original factory settings.
-Keep in mind this will erase all your preset radio stations.
8. Eject
-Press to eject disc.
10. DVD
-Press to change to DVD mode.
11. Tuner
-Press to change to Tuner mode.
12. Auxiliary A/V Input

Remote Control

1. Power 15. Audio
2. Mode 16. GOTO
3. Play/Pause
17. EQ/LOUD
4. Mute
18. Number keys
5. Title
19. Root
6. Subtitle 20. OSD
7. Setup 21. Local
/Random
8. Angle
22. Seek Down
9. Slow
/Previous Track
10. Volume UP
23. AS/PS/Repeat
11. Zoom
24. Stereo/Program
12. Select
25. Stop
13. Seek UP
26. Enter
/Next Track
27. Band
14. Volume Down

Main Menu

In the Menu mode, press the desired icon
to enter the corresponding mode: Tuner, Disc,
USB, iPod,SD Card, AV1, AV2 or Setup.

Tuner Operation

Select the Tuner icon from the Main Menu screen or press MODE until Tuner
is selected.
1 2 3
1. Current Mode Indicator
TUNER
2. Frequency Down
3. Information Display
4. Frequency Up
5. Back to Main Menu
6. Preset Station Display
13 12 11
7. EQ Switch
11. Select Audio/Video Setup
8. Local On/Off
12. Band Selection
9. Loud On/Off
13. Mute On/Off
10. Automatically Store/Preset Scan

DVD Operation

Insert a DVD in the disc slot for playback.
1. Play/Pause
2. Stop
3. Rewind
4. Fast Forward
7
8
5. Previous Track
9
6. Next Track 1 2 3
10
11
7. Volume Adjustment
8. Next Menu
12
9. Playback/Remaining Time
10. Language Options for Sound
11. Return to Playlists/Previous Folder
12. Return to Title Menu
9 10 11
13. Repeat Play
14. Language Options for Subtitle
15. Numeric Keyboard
16. Invalid Key
17. Picture Zoom In/Out
18. TFT Screen Off
16 17

CD Operations

Insert a CD in the disc slot, and the unit will
read the disc.
1. Play/Pause
2. Stop
3. Rewind
4. Fast Forward
1 2 3
5. Previous Track
6. Next Track
7. Volume Adjustment
8. Next Menu
9. Playback/Remaining Time
10. Repeat Play
9
11. Numeric Keyboard
12. Random Play
13. Info
14. TFT Screen Off
12 13
iPod Operation
®
Select iPod on the Main Menu
1. Repeat
2. Play/Pause
3. Rewind
4. Fast Forward
5. Previous Track
6. Next Track
7. Source Volume Adjustment
4 5
8. Back to Main Menu

General Operations

Setup Menu

6
From the Main Menu screen, press Setup to
enter the Setup Menu. The first 7 setup
options will be displayed on the screen.
10 9 8 7
