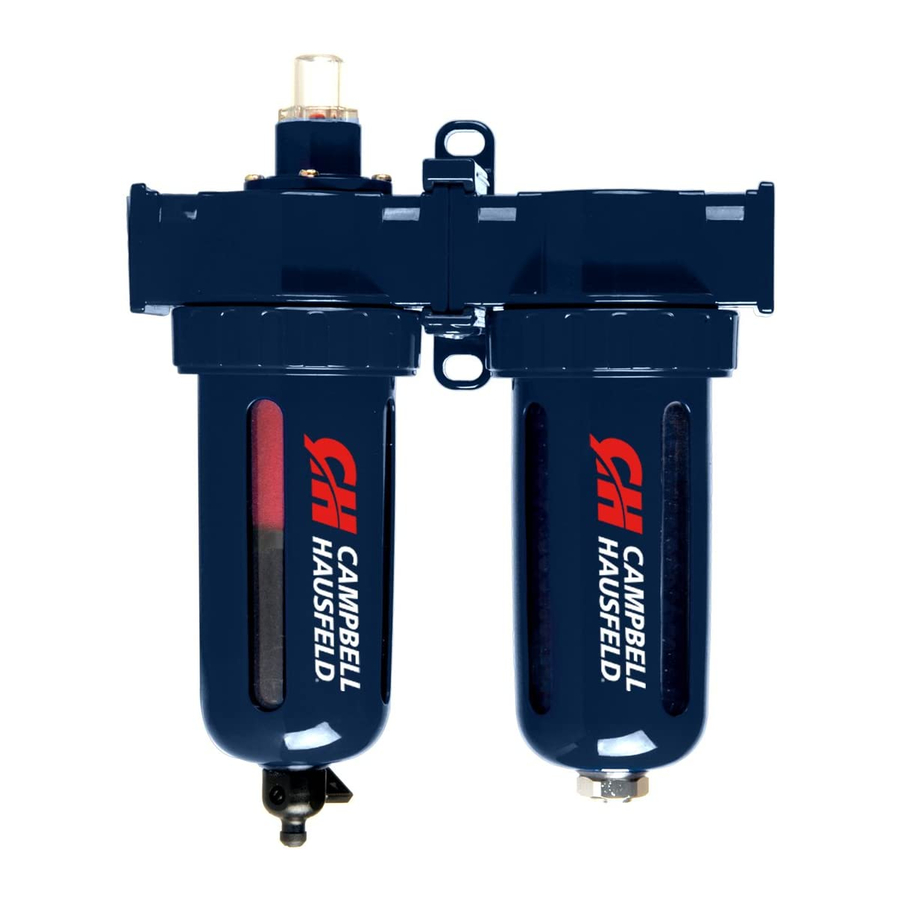

Campbell Hausfeld PA208503 Operating Instructions And Parts Manual

Air Cleaner / Dryer
Nettoyeur / Sécheur à Air
Purificador de Aire / Secador
For Replacement Parts, Call 1-800-543-6400
Please provide following information:
-Model number
-Serial number (if any)
-Part description and number as shown in parts list
Pour Pièces De Rechange, Appeler 1-800-543-6400
S'il vous plaît fournir l'information suivante :
-Numéro du modèle
-Numéro de série (si applicable)
-Description de la pièce et son numéro sur la liste de pièces
Para Ordenar Repuestos, Sírvase Ilamer al Concesionario
más Cercano a su Domicilio
Sírvase darnos la siguiente iinformación:
-Número del modelo
-Número de Serie (de haberlo)
-Descripción y número del repuesto según la lista de repuestos

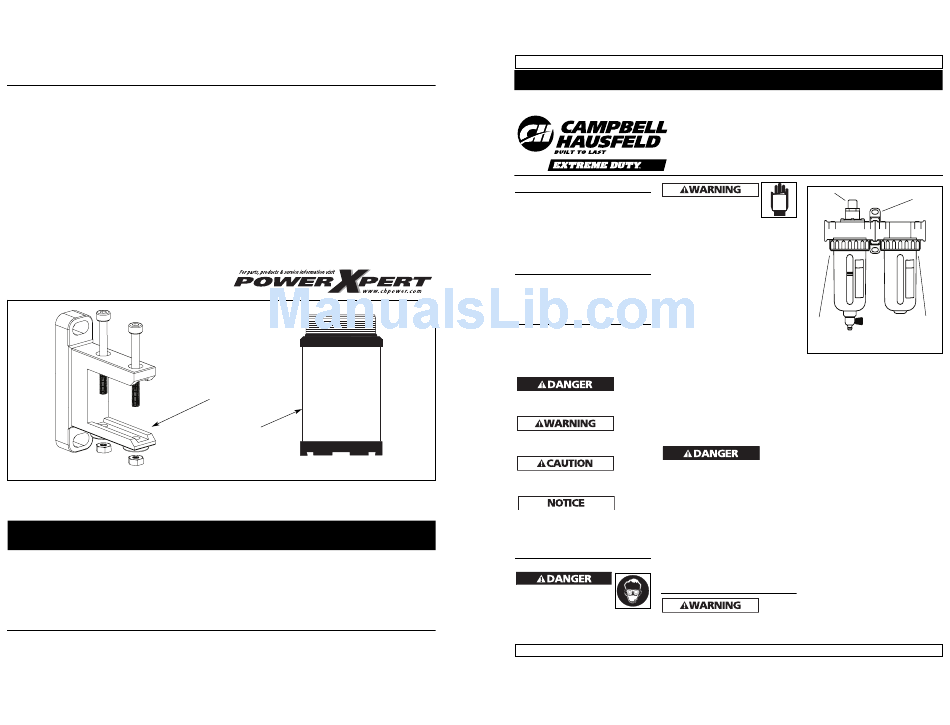

Figure 2 / Figure 2 / Figura 2
Replacement Parts List
Liste de Pièces de Rechange
Lista de Repuestos
Ref. No.
No. Ref.
No. de Ref. Description Description
1 Modular Fixation
bracket modulaire
2 Replacement Siccatif de
desiccant rechange
(Not shown) (Pas indiqué)
3 Coalescing Filter Cartouche filtrante
Element combinaison
www.chpower.com
Model PA208503
Modéle PA208503
Modelo PA208503
Address parts correspondence to:
Campbell Hausfeld / Attn: Parts Dept.
100 Production Drive
Harrison, OH 45030 U.S.A.
Correspondance :
Campbell Hausfeld / Attn: Parts Department
100 Production Drive
Harrison, OH 45030 U.S.A.
Puede escribirnos a:
Campbell Hausfeld / Attn: Parts Department
100 Production Drive
Harrison, OH 45030 U.S.A.
1
3
Part Number
Numero de Piéce
Descripción Número del repuesto
Ménsula SX139600AV
modular
Desecante de PA2086
repuesto
(No se muestra)
Elemento del PA208703AV
filtro de fusión
12
See Warranty on page 3 for important information about commercial use of this product.
Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description
The Campbell Hausfeld Air Cleaner /
Dryer is designed to remove dirt, most
contaminants, oil vapors and water from
compressed air. It is a two part system
consisting of a coalescing filter which
removes most contaminants, oil vapors
and condensed water and a desiccant
dryer which removes water vapor.
Unpacking
After unpacking the air cleaner / dryer,
carefully inspect for any damage that
may have occurred during transit. Check
for loose, missing or damaged parts.
Safety Guidelines
This manual contains information that is
very important to know and understand.
This information is provided for SAFETY
and to PREVENT EQUIPMENT PROBLEMS.
To help recognize this information,
observe the following symbols.
an imminently hazardous situation
which, if not avoided, will result in
death or serious injury.
a potentially hazardous situation
which, if not avoided, could result in
death or serious injury.
a potentially hazardous situation
which, if not avoided, MAY result in
minor or moderate injury.
important information, that if not
followed, may cause damage to
Qty. equipment.
Qte.
General Safety
Ctd.
Information
1
CALIFORNIA PROPOSITION 65
1
You can create dust when you
cut, sand, drill or grind
materials such as wood, paint,
metal, concrete, cement, or
1
other masonry. This dust often contains
chemicals known to cause cancer, birth
defects, or other reproductive harm. Wear
protective gear.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
© 2007 Campbell Hausfeld/Scott Fetzer
Air Cleaner / Dryer
This product or its power
MANUAL
cord contains chemicals
known to the State of
California to cause cancer
and birth defects or other reproductive
harm. Wash hands after handling.
This product is a part of a high pressure
system and the following safety
precautions must be followed at all
times along with any other existing
safety rules.
1. Read this instruction manual before
installing this device on a compressed
air system. Be thoroughly familiar
with the controls and the proper use
of the equipment.
2. Safety glasses must be worn during
operation. Always work in a well
ventilated area.
3. Do not exceed any pressure rating of
any component in the system.
4. Protect air lines from damage and
Danger
puncture.
indicates
5. Check air hoses for weak or worn
condition before each use. Make sure
all connections are secure.
6. Keep all nuts, bolts and screws tight
Warning
indicates
and ensure equipment is in safe
working condition.
This
product is
Caution
specifically designed for compressed air
indicates
service ONLY. Use with any other fluid
(liquid or gas) is a misapplication and
not permitted. For example, use with or
injection of certain hazardous liquids or
gases in the system (such as alcohol or
Notice
liquid petroleum gas) could be harmful
indicates
to the unit or result in a combustable
condition or hazardous external
leakage. Campbell Hausfeld's
warranties are void in the event of
misapplication and assumes no
responsibility for any resulting loss.
Specifications
Maximum pressure: 150 PSIG (10 bar).
Maximum temperature: 125˚F (52˚C).
Installation
Disconnect
power and
release all pressure from the system
before attempting to install, service,
relocate or perform any maintenance.
For parts, product & service information
visit www.chpower.com
Model PA208503
Service
Mounting Bracket
Indicator
Dryer
Coalescing
Filter
Figure 1
1. The air cleaner/dryer should be
located as close as possible to the air
tool or spray gun.
2. A shutoff valve should be installed
before the air cleaner/dryer so the
unit can be easily depressurized for
servicing. Securely mount the air
cleaner/dryer in a vertical position
using the mounting bracket supplied
with the unit.
3. Install a Campbell Hausfeld 3/8" Filter
(PA212103) before and after the
coalescing filter/dryer for optimum
performance. Connect the piping or
hose with airflow in the direction of
the arrows cast into the top of the
unit. Avoid using unnecessary
fittings, couplings, etc., that restrict
air flow.
4. Remove the bowl from the dryer
housing by loosening the lock ring.
Pull bowl down to remove from
housing.
5. Open bag of desiccant and pour into
bowl. Shake or tap bowl periodically
to settle desiccant. Fill to within 1/2"
from top of bowl. Do not allow
desiccant to get into center tube.
6. Reinstall bowl on housing. Be sure
the lock ring is tightened before
pressurizing the unit.
IN245503AV 3/07
