Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Description
The Campbell Hausfeld Air Cleaner /
Dryer is designed to remove dirt, most
contaminants, oil and water from
compressed air. It is a two part system
consisting of a coalescing filter which
removes most contaminants, oils and
condensed water and a desiccant dryer
which removes water vapor.
Unpacking
After unpacking the air cleaner / dryer,
carefully inspect for any damage that
may have occurred during transit.
Check for loose, missing or damaged
parts.
Safety Guidelines
This manual contains information that is
very important to know and understand.
This information is provided for SAFETY
and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following
symbols.
Danger indicates
an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
Warning indicates
a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Caution indicates a
potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Notice indicates
NOTICE
!
important
information, that if not followed, may
cause damage to equipment.
General Safety
Information
This product is a part of a high pressure
system and the following safety
precautions must be followed at all
times along with any other existing
safety rules.
© 1999 Campbell Hausfeld/Scott Fetzer
Air Cleaner / Dryer
1. Read this instruction
manual before installing
this device on a
compressed air system.
Be thoroughly familiar
with the controls and
the proper use of the equipment.
2. Safety glasses must be worn during
operation. Always work in a well
ventilated area.
3. Do not exceed any pressure rating of
any component in the system.
4. Protect air lines from damage and
puncture.
5. Check air hoses for weak or worn
condition before each use. Make
sure all connections are secure.
6. Keep all nuts, bolts and screws tight
and ensure equipment is in safe
working condition.
This product is
specifically
designed for compressed air service
ONLY. Use with any other fluid (liquid
or gas) is a misapplication and not
permitted. For example, use with or
injection of certain hazardous liquids
or gases in the system (such as alcohol
or liquid petroleum gas) could be
harmful to the unit or result in a
combustable condition or hazardous
external leakage. Campbell Hausfeld's
warranties are void in the event of
misapplication and assumes no
responsibility for any resulting loss.
Specifications
Maximum pressure: 150 PSIG (10 bar).
Maximum temperature: 125˚F (52˚C).
Installation
Disconnect power
and release all
pressure from the system before
attempting to install, service, relocate
or perform any maintenance.
1. The air cleaner/dryer should be
located as close as possible to the air
tool or spray gun.
2. A shutoff valve should be installed
before the air cleaner/dryer so the
unit can be easily depressurized for
servicing. Securely mount the air
cleaner/dryer in a vertical position
using the mounting bracket supplied
with the unit.
For parts, product & service information
visit www.campbellhausfeld.com

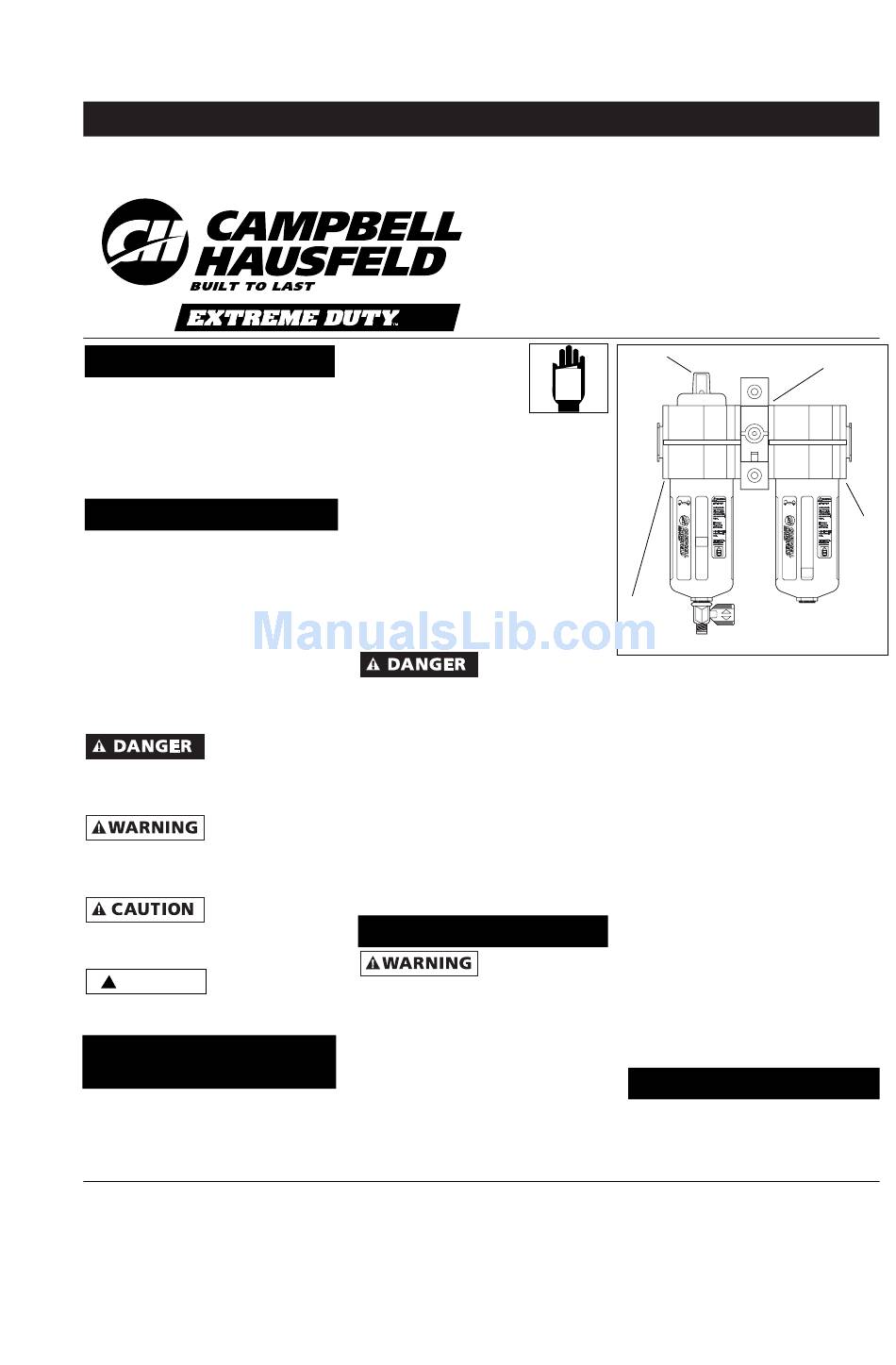

Model PA208501
Service
Indicator
MANUAL
Coalescing
Filter
Figure 1
3. Install a Campbell Hausfeld 3/8"
Filter (PA2121) before and after the
coalescing filter/dryer for optimum
performance. Connect the piping or
hose with airflow in the direction of
the arrows cast into the top of the
unit. Avoid using unnecessary
fittings, couplings, etc., that restrict
air flow.
4. Remove the bowl from the dryer
housing by pushing the bowl toward
the body and rotating bowl. Pull
bowl down to remove from housing.
5. Open bag of desiccant and pour into
bowl. Shake or tap bowl periodically
to settle desiccant. Fill to within 1/2"
from top of bowl. Do not allow
desiccant to get into center tube.
6. Reinstall bowl on housing. Be sure it
is securely locked in place before
pressurizing the unit.
7. The coalescing filter is supplied with
the filter element preinstalled.
8. Be sure to use a clean air hose to
prevent contamination of the
cleaned air.
9. Pressurize system and check for any
air leaks.
Operation
Before turning on the air pressure
supply, make certain the bowls are
securely locked in place and all fittings
are tight.
Mounting Bracket
Dryer
IN245501AV 5/99
