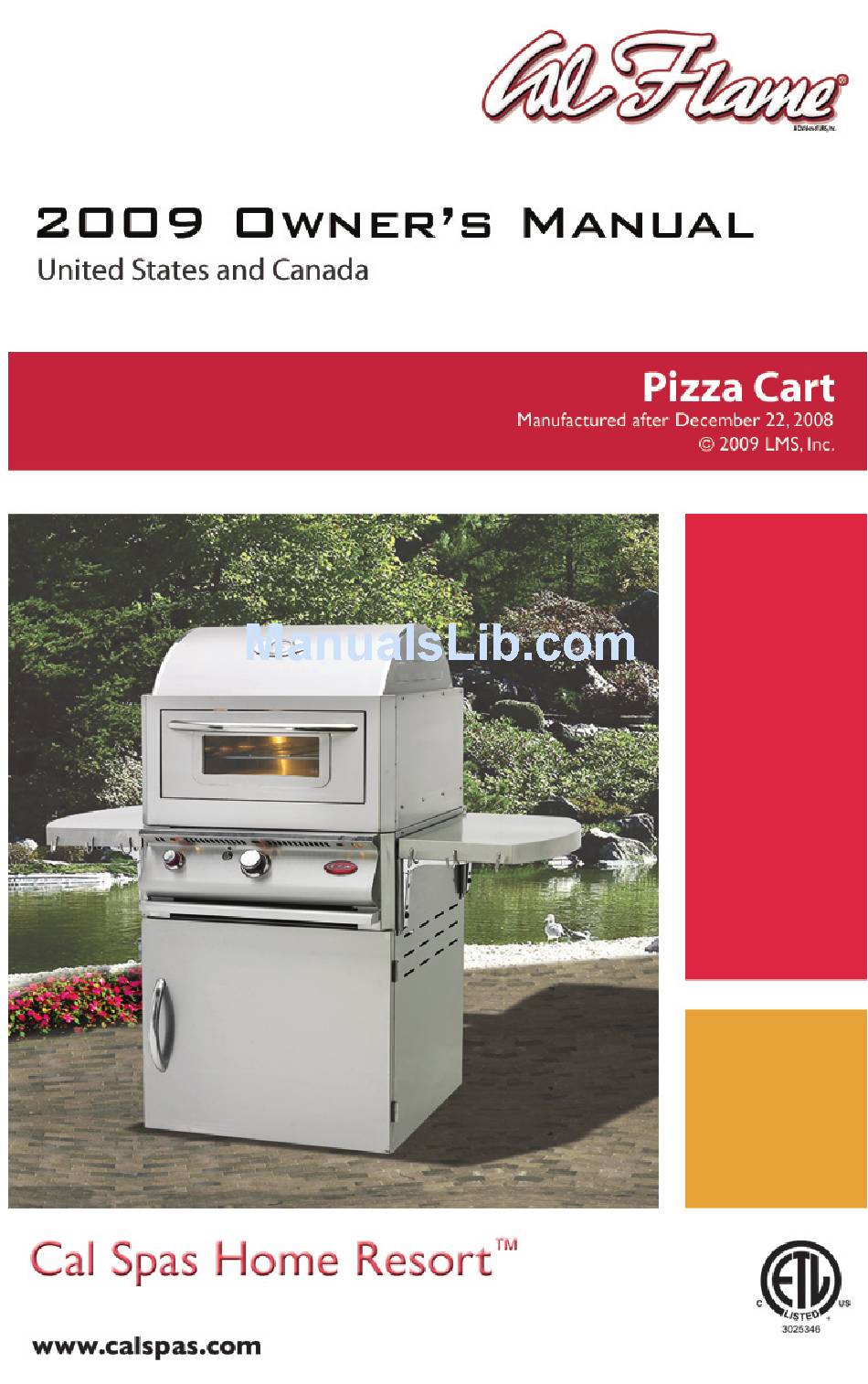

Cal Flame LTR20091039 Owner's Manual

Pizza cart
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LTR20091039 and is the answer not in the manual?

Questions and answers

Related Manuals for Cal Flame LTR20091039

Summary of Contents for Cal Flame LTR20091039

  • Page 2: Table Of Contents

    Duplication without written consent is strictly prohibited. your authorized dealer immediately. If you need additional information and/or Cal Flame ® is a registered trademark. assistance, please contact: Due to continuous improvement programs, Customer Service Department all models, operation, and/or specifications 1462 East Ninth Street are subject to change without prior notice.

  • Page 3: Safety Instructions

    Do not place the pizza oven under or near windows or vents that can be opened into your home. • The Cal Flame pizza oven is not intended for installation in or on recreational vehicles or boats. • Maintain sufficient distance as to not overheat any overhead com- bustible material such as a patio cover.
  • Page 4 • In the event that the burner goes out, turn the burner knob to the full OFF position, fully open the oven door and let it air out. Do not attempt to use the pizza oven until the gas has had time to dissipate.
  • Page 5 • Never put combustible material such as paper, cloth, or flammable liquids inside or on your pizza oven at any time. Do not use the pizza oven to store flammable materials. • Never allow temperature to ex ceed 500° F. Maintenance and Repair •...

  • Page 6: Installation / Assembly

    LMS qualified installers and service techni- cians to ensure proper operation and prevent accidents. When planning the location of your Cal Flame pizza oven, consider ac- cess to gas lines. The location with the shortest gas line run is recom- mended.

  • Page 7: Leak Testing Procedure

    Leak Testing Procedure Perform a leak test at least once a year whether the gas supply cyl- inder has been disconnected or not. In addition, whenever the gas cylinder is connected to the regulator or whenever any part of the gas system is disconnected or replaced, perform a leak test.

  • Page 8: Gas Requirements And Connection

    If you do not have an updated filler valve on your existing propane tank, you will need to purchase one at your local hardware store. Without it you will not be able to attach your tank to your Cal Flame™ pizza oven or refill the tank at your local propane refill station.
  • Page 9 LP Gas Hook Up Vent the enclosure for an LP gas cylindar with openings at the level of the cylinder valve and at the floor level. Ensure one side of the enclosure is completely open. For enclosures that have four sides, complete with a top and bottom: •...

  • Page 10: Natural Gas

    Your pizza oven for use with natural gas comes equipped with its own regulator that MUST NOT be removed. If this regulator needs to be re- placed, use only the type specified by Cal Flame™ for this appliance. Connection Remove the rear panel from the pizza oven to gain access to the regulator and gas connection point.

  • Page 11: Installing The Transformer

    Installing the Transformer grills with electrical components such as lights or a convection fan will require the transformer to be installed and plugged in before you can use it. This needs to be done before the grill is inserted in the island or modular cart. When transformer attached to the grill chassis,...

  • Page 12: Installing The Bricks And Rack

    Installing the Bricks and Rack The pizza oven uses three white bricks for diffusing heat from the burners. After you have removed the pizza oven from the box and removed all packing materials, place the three racks lengthwise on the left and right ledge above the burner.

  • Page 13: Operating Your Pizza Oven

    Operating Your Pizza Oven Read all instructions before use. We recommend you wash your entire pizza oven with soap and water prior to lighting it for the first time. Oils are used during the manufac- turing process and some residual oil may still be on the stainless steel parts of your pizza oven.

  • Page 14: Manually Lighting The Oven

    Manually Lighting the Oven Use the match extender that comes with the pizza oven for manu- ally lighting. Do not use standard matches or cigarette lighters to perform match lighting procedures. Serious burns can occur and lighters can explode. If you have just attempted to light the burner, allow five minutes for any accumulated gas to dissipate.

  • Page 15: Basic Operation

    The ON / OFF switch controlling your halogen light is located at the control panel on the front lower left side. Certain models of the Cal Flame grill are equipped with either one or two halogen light. Your grill is equipped with a grounded...

  • Page 16: Safety Considerations

    Safety Considerations Each time you light the pizza oven, check the following: • Inspect the hose before using the pizza oven. If there is exces- sive abrasion or wear, or if the hose is cut, it must be replaced prior to use. If you need a replacement hose, contact your Cal Flame dealer.

  • Page 17: Cleaning And Maintenance

    Cleaning and Maintenance To ensure safe and proper maintenance, we recommend you follow these directions carefully. Clean internal parts regularly as determined by the amount of use and foods cooked. The entire pizza oven should be cleaned at least once a year. In addition, keep the area around your pizza oven clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

  • Page 18: Burner

    Covering Your Pizza Oven When not in use and after cooling, cover your pizza oven with our full length, zippered side canvas cover. (See your local Cal Flame dealer for details.) The cover will help protect your pizza oven from detrimental effects of weather and environmental pollutants.

  • Page 19: Appendix

    Appendix Troubleshooting Problem: Smell of gas is present Solution: Check for loose connections in the gas line. Perform a leak test following the procedure described in this man- ual. Problem: Burner does not ignite Solution: Use the following procedure with the figure below. Check the position of the sparker tip.
  • Page 20 Replace all cotter pins. • Replace cooking components and grease collectors. If an obstruction is suspected in the control valve, con- tact your local Cal Flame dealer for assistance. Problem: Burner tube is misaligned over the orifice Solution: Reposition the burner tube so that it is properly seated over the orifice.

  • Page 21: Replacement Cover

    Problem: Misalignment of Igniter on Burner Solution: • Check for proper position of the electrode tip, which should be pointing forward towards the front of the burner and free of grease to allow proper sparking. • The ignition wire should be connected firmly to the valve ignition device and electrode.

  • Page 22: Warranty

    Extent of Warranty This limited warranty is only valid on Cal Flame models delivered in the United States or Canada and extends through the selling dealer to the original purchaser at the original site of installation.

  • Page 23: Warranty Limitations

    This limited warranty gives you specific legal rights. You may have other rights, which may vary from state to state. See your Cal Flame barbecue dealer for a copy of the applicable warranty, details and any questions you may have regarding the warranty coverage on your pizza cart.
  • Page 24 LMS Customer Service Department 1462 East Ninth Street Pomona, CA 91766 Toll Free: 1-800-CAL-SPAS Fax: 1-909-629-3890 www.calspas.com LTR20091039, Rev. A 3/16/09...
