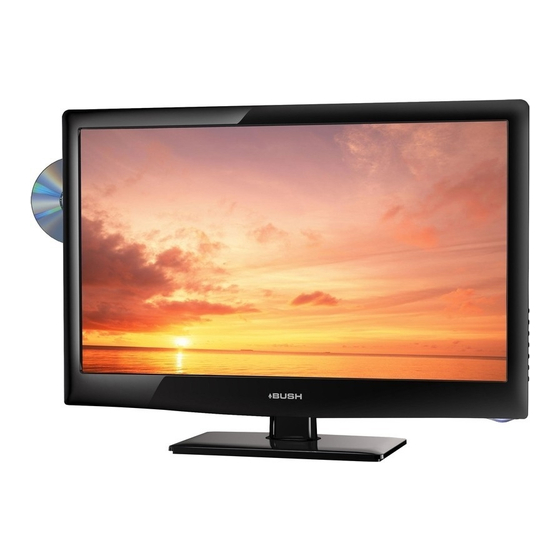

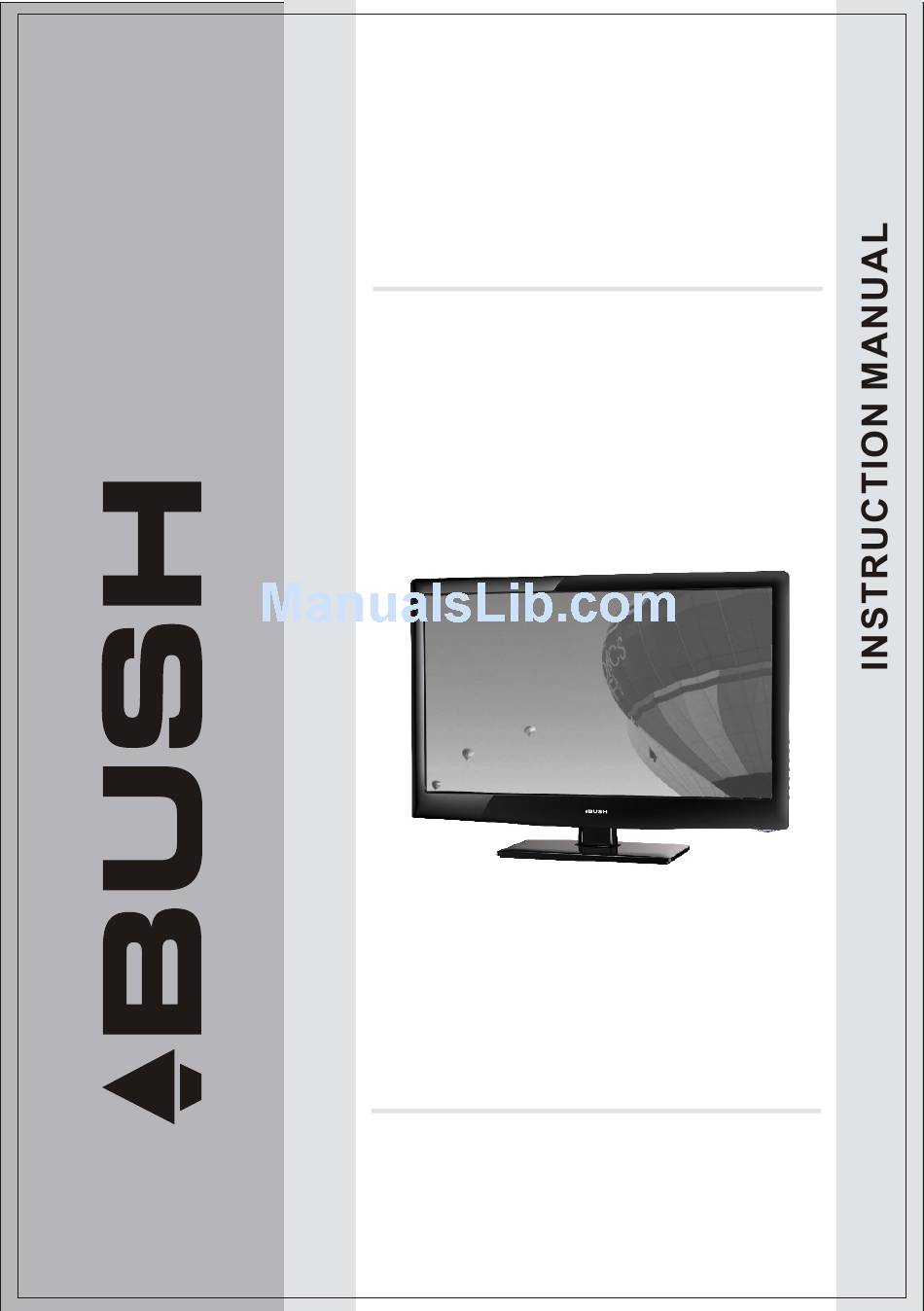

- Page 1 LED LCD TV/DVD Combo IDLED2202DVD IDLED2402DVD The Gold Technical Support Line: 1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
INTRODUCTION Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit s m any f eatures and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
Contents INTRODUCTION................1 SAFETY INSTRUCTIONS.............. 3-4 BASE STAND INSTALLATION ............5 WALL MOUNTING INSTALLATION ............ 6 INSTALLATION................7-10 REMOTE CONTROL..............11-12 OPERATION................13-18 DVD OPERATION..............19-23 DVD TROUBLESHOOTING............. 24 TROUBLESHOOTING..............25 TECHNICAL SPECIFICATIONS..........26-27 WARRANTY................... 28... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS 1. Do not use this TV near dripping or splashing water. Do not use any liquids near this TV. 2. Clean witha dry cloth only. 3. Do not block any ventilation openings and install in accordance with the manufacturers instructions. - Page 5 SAFETY AND WARNINGS Important Safety Instructions Warning: To reduce the risk of electric shock, do not remove the cover or back as there are no user-serviceable parts inside. Refer all servicing to a qualified technician. Warning: To prevent fire or electric shock hazard, do not expose the unit to any liquids or moisture.
-
Page 6: Base Stand Installation
INSTALLATION ACCESSORIES Remote Control x 1 User s M anual x1 Battery(AAA) x 2 Base Stand Assembly Instruction 1. Place the TV with the display side down 2. Fix the bottom with turning the screw on a flat surface.Use a cloth to protect. tightly on the stand. - Page 7 INSTALLATION WALL MOUNTING INSTALLATION GUIDELINES This television can be wall mounted as follows: 1.Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage. 2.Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand (put the stand somewhere safe for future use).
- Page 8 INSTALLATION Front panel Remote Control Sensor. Indicator LCD LED: BLUE POWER ON. STANDBY. Side buttons (refer to image below) Side Buttons SOURCE MENU OPEN/CLOSE VOL+ PLAY/PAUSE VOL- STANDBY 1 SOURCE Press the SOURCE Button to display the Input Source list. 2 MENU Press the MENU Button to display the Main Menu.
- Page 9 INSTALLATION Rear Sockets DC 12V/3A HDMI2 Outlined below is the Rear Sockets provided - AV Input, R/L Audio Input, DC Power Source Input, YPbPr Input and HDMI2 Input. Note: 1. The AV Input and YPbPr Input share one audio channel. When HDMI 2 is connected with DVI video source, the R/L of AV will be used for audio source input.
- Page 10 INSTALLATION DC 12V/3A HDMI2 PRESET MODE V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 800*600 35.156 800*600 37.88 800*600 48.08 1024*768 48.36 1024*768 56.48...
- Page 11 INSTALLATION AV EQUIPMENT Please follow one of the below instructions when connecting your TV to other devices. AV OUTPUT HDMI1 PC AUDIO VIDEO EQUIPMIENT TO VIDEO INPUTS HDMI TO AUDIO INPUTS VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) DC 12V/3A...
-
Page 12: Remote Control
REMOTE CONTROL Remote Control - TV section 1:POWER:Press to turn the unit on or off. 2:NUMERIC KEY:Press for direct access to channels. 3:TV MENU:Press to display TV Main Menu. 4:CURSOR:Press to scroll through the Menu. 6:VOL+/- :Press to adjust the sound level. 7:PIC:Press to switch between picture modes. - Page 13 REMOTE CONTROL TELETEXT Teletext is an information system broadcasted by certain channels which will provide detailed program information. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.) Press: You will obtain : This is used to access and/or exit the Teletext mode.A summary will...
-
Page 14: Operation
OPERATION Installation Guide Please select an OSD Language Cesky English Magyar Polski Fran ais Espanol Dansk Hrvatski Nederlands Portugues Deutsch Italiano Norsk Pycck Country Australia Bulgaria Denmark Germany Italy Austria Croatia Finland Greece Luxembourg Belgium Czech France Hungary Netherlands This will appear during the first time installation and when you reset the TV. You can choose any of the above languages or countries. - Page 15 OPERATION 2)DTV Manual Tuning - Select the DTV Manual Tune option in the Channel Menu, to conduct a Manual scan. Use the Buttons manually scan through the DTV Manual Tune channels, then press OK to search. DTV Manual Tuning VHF CH Press OK to search Nomal Good...
-
Page 16: Sound Menu
OPERATION Favourite Use the Buttons to select the program you wish to set to your favourites list and press the FAV Button to set. The favourite Icon will then be displayed next to the program. Press the FAV Button again to cancel setting. -
Page 17: Option Menu
OPERATION 5.OPTION MENU To enter the Option Menu, press MENU button and the press buttons to select the Option Menu. Once in Option Menu, press buttons to select the settings you wish to adjust. Press MENU button to return to the Main Menu. OSD Language English Audio Languages Subtitle Languages... -
Page 18: Lock Menu
OPERATION FACTORY RESET NOTE: If you wish to reset your TV, please select the Restore Factory Default option, this will clear all settings. 6.LOCK MENU To enter the LOCK Menu, press MENU button and then press buttons to select the LOCK Menu. The default password is 6666. -
Page 19: Operation
OPERATION Sample1.ts Resolution: 720x576 AudioTrack: ½ Subtitle: Size: 30574 KBytes Close 8.EPG Menu(Electronic Program Guide). The EPG Menu is used to look at what is being broadcasted in DTV or Radio modes. Press the EPG Button to access the EPG Menu. You will receive detailed program information of the channel you are currently watching as well as the 7 Day Program guide. -
Page 20: Dvd Operation
DVD OPERATION DVD SIDE PANEL OPEN/CLOSE PLAY/PAUSE Caution This DVD Player has a Class 1 laser which may be harmful. Do not attempt to disassemble the cabinet or make any adjustments. Please refer all servicing to a qualified professional. DVD OPERATION Disc Formats Supported by this DVD Player: Multi-angle Dolby Digital... - Page 21 DVD OPERATION Remote Control - DVD section 2:Numeric keys:Press to set the time, select title, chapter or track you wish to play. Press the ENTER/OK Button to confirm. When a VCD is playing (with PBC off), press the Numeric keys to select a track directly.
- Page 22 DVD OPERATION MENU OPERATION Press the Setup Button on the remote control to display the DVD Setup Menu. Once in the Setup Menu use the Cursor Buttons to select your desired Settings. Then press the ENTER/OK Button to confirm. To exit the Setup Menu, press the Setup Button again. In the Setup Menu, you may choose any of the following options: LANGUAGE SETUP Use the Cursor Buttons in the Setup Menu to select the Language option and display the Language...
- Page 23 DVD OPERATION RATING SETUP The Rating set up allows you to lock play of certain rated movies/DVDs. Use the Cursor Buttons to select the Rating option in the Setup menu and to display the Rating submenu: Parental Control The Parental Control Setting allows you to lock the DVD Player. You must enter the default password (6666) before setting your own password.
-
Page 24: Dvd Operation
DVD OPERATION When playing an MP3, WMA, JPEG or MPEG4 disc the above screen will appear. To navigate this menu, use the Buttons to scroll through the directory options or to select tracks or files you wish to play. Press Enter/OK Buttons to confirm any selections. Filter:This option allows you to filter and categories your file list in the directory menu. -
Page 25: Troubleshooting
Troubleshooting If you have any questions, please consult the troubleshooting guide below: NO PICTURE OR SOUND Ensure the power button is on. Ensure the power outlet is operational. Ensure the power cord is not damaged. Ensure the power plug is connected firmly to the outlet. PICTURE BUT NO SOUND Ensure the audio is not set to mute. - Page 26 TROUBLESHOOTING Potential Issues Inspection Check Picture Audio Check the Antenna Position Snow Noise and that it is connected Check Antenna Position and Ghost Normal audio that it is connected correctly Check for electrical Interference Noise interference Check if mute function is on. Normal Picture Check AV cables are Mute...
- Page 27 INTRODUCTION Model: IDLED2202DVD LED LCD Screen Size: 21.6 inch Resolution 1366x768 Aspect Ratio 16:9 Display colours 16.2M Brightness 250 CD/M Contrast ratio 1000:1 Response time 10 ms View angle 160(H)/160(V) Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM...
- Page 28 INTRODUCTION Model: IDLED2402DVD LED LCD Screen Size: 23.6 inch Resolution 1920x1080 Aspect Ratio 16:9 Display colours 16.2M Brightness 250 CD/M Contrast ratio 1000:1 Response time 8 ms View angle 160(H)/160(V) Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM...
-
Page 29: Warranty
In the unlikely event that your product fails to work normally, please contact the Bush Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. - Page 30 PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com...
