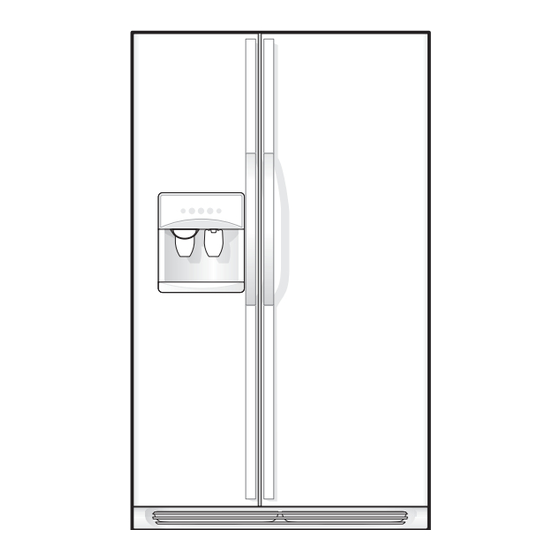

Frigidaire FRS3R5E Factory Parts Catalog
Side by side refrigerator
Hide thumbs
Also See for FRS3R5E:
- Factory parts catalog (22 pages) ,
- Factory parts catalog (24 pages) ,
- Factory parts catalog (24 pages)
Table of Contents
Advertisement
Quick Links
N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps
N58SJCAAB15.eps N58TAAAAA7.eps N58CAAAAA5.eps N58XDAAAA1.eps
N58YBAAAA4.eps N58I1151.eps W241708401.eps W241725001.eps S241708401.eps
S241725001.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FRS3R5EMBA FRS3R5EMB8 FRS3R5ESB1
Series
R134a
Color
silver mist
Volts
115
Wiring Diagram
241708401
Owner's Guide
241856000
Market
North America North America North America
Energy Guide
241585988
Service Data Sheet 240389629
Publication No.
5995494696
07/07/06
(EN/SERVICE/KHB)
137
R134a
R134a
silver mist
stainless
115
115
241708401
241725001
241695301
241856000
241585988
241615439
240389629
240389633
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS3R5E
©
Copyright
All rights reserved.
Advertisement
Table of Contents
Related Manuals for Frigidaire FRS3R5E
Summary of Contents for Frigidaire FRS3R5E
- Page 1 Product No. FRS3R5EMBA FRS3R5EMB8 FRS3R5ESB1 Series R134a R134a R134a Color silver mist silver mist stainless Volts Wiring Diagram 241708401 241708401 241725001 Owner's Guide 241856000 241695301 241856000 Market North America North America North America Energy Guide 241585988 241585988 241615439 Service Data Sheet 240389629 240389629 240389633 SIDE-BY-SIDE...
-
Page 2: Freezer Door
Publication No: 5995494696 FRS3R5E FREEZER DOOR N58FCCBBB2 07/07... - Page 3 FRS3R5E Publication No: 5995494696 FREEZER DOOR Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 241674808 A B C Gasket-frzr door, black, magnetic 240367301 A B C Bin-door, frzr-upper 240359001 A B C Bin-door 241668506 A B -...
-
Page 4: Refrigerator Door
Publication No: 5995494696 FRS3R5E REFRIGERATOR DOOR N58RCCBBB11 07/07... - Page 5 FRS3R5E Publication No: 5995494696 REFRIGERATOR DOOR Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 241674807 A B C Gasket-refr door, black, magnetic 240363701 A B C Bin-door, 2-liter 240338303 A B C Door, dairy, clear 240581905 A B C...
- Page 6 Publication No: 5995494696 FRS3R5E CABINET 07/07...
- Page 7 FRS3R5E Publication No: 5995494696 CABINET Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 240435911 A B C Cover-air duct 240475910 A B C Cover-evap coil, lower 5303208309 A B C Plug-hole, factory test 14 # 240505801 A B C...
- Page 8 Publication No: 5995494696 FRS3R5E SHELVES N58SJCAAB15 07/07...
- Page 9 FRS3R5E Publication No: 5995494696 SHELVES Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 241657601 A B C Shelf, flip up, wire 241657501 A B C Shelf, fixed, freezer 241657503 A B C Shelf, fixed upper, freezer 5304455658 A B C...
- Page 10 Publication No: 5995494696 FRS3R5E CONTROLS N58TAAAAA7 07/07...
- Page 11 FRS3R5E Publication No: 5995494696 CONTROLS Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 5308000010 A B C Fan Blade, red, evaporator fan 215474201 A B C Washer, "slinger", nylon, evap fan shaft 241563601 A B C Bushing-motor mtg, (2)
- Page 12 Publication No: 5995494696 FRS3R5E SYSTEM N58CAAAAA5 07/07...
- Page 13 FRS3R5E Publication No: 5995494696 SYSTEM Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 240333602 A B C Condenser 218679606 A B C Block-evap coil, styrofoam, (2) 218944001 A B C Drier-filter, R134a System 241586801 A B C Harness-wiring, machine compt...
-
Page 14: Ice And Water Dispenser
Publication No: 5995494696 FRS3R5E ICE & WATER DISPENSER 07/07... - Page 15 FRS3R5E Publication No: 5995494696 ICE & WATER DISPENSER Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 218976409 A B C Tube, water, door 218976915 A - C Tube-water inlet, inlet valve, to filter 218976901 - B - Tube, water inlet, valve to IM...
-
Page 16: Ice Container
Publication No: 5995494696 FRS3R5E ICE CONTAINER 37A 34 34 33 N58YBAAAA4 07/07... - Page 17 FRS3R5E Publication No: 5995494696 ICE CONTAINER Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 241716101 A B C Auger-ice 241685201 A B C Cam-drive 241734001 A B C Container-ice, bucket only 241685101 A B C Drum-ice disp 241734201...
-
Page 18: Ice Maker
Publication No: 5995494696 FRS3R5E ICE MAKER 07/07... - Page 19 FRS3R5E Publication No: 5995494696 ICE MAKER Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 218976409 A B C Tube, water, door 218976915 A - C Tube-water inlet, inlet valve, to filter 218976901 - B - Tube, water inlet, valve to IM 218976420...
- Page 20 Publication No: 5995494696 FRS3R5E ICE MAKER 07/07...
- Page 21 FRS3R5E Publication No: 5995494696 ICE MAKER Model Index: A FRS3R5E (FRS3R5EMBA) B FRS3R5E (FRS3R5EMB8) C FRS3R5E (FRS3R5ESB1) POS. NO PART NO. DESCRIPTION 241796401 A B C Tube-water fill, extension 55 # 241734301 A - C Valve-water, triple solenoid 55 # 240531101 - B - Valve-water, triple solenoid...
-
Page 22: Wiring Schematic
Publication No: 5995494696 FRS3R5E WIRING SCHEMATIC 07/07... - Page 23 FRS3R5E Publication No: 5995494696 WIRING SCHEMATIC AIR FILTER B E T A C O N T R O L FF THERMISTOR FRZ THERMISTOR 07/07 # Functional Parts * Non-Illustrated Parts...
-
Page 24: Wiring Diagram
Publication No: 5995494696 FRS3R5E WIRING DIAGRAM 07/07... - Page 25 FRS3R5E Publication No: 5995494696 WIRING DIAGRAM WHITE WHITE GRAY GRAY 07/07 # Functional Parts * Non-Illustrated Parts...
