Bunn DUAL GPR-DBC Programming Manual

With smart funnel
Hide thumbs Also See for DUAL GPR-DBC:
Table of Contents

Advertisement

Quick Links

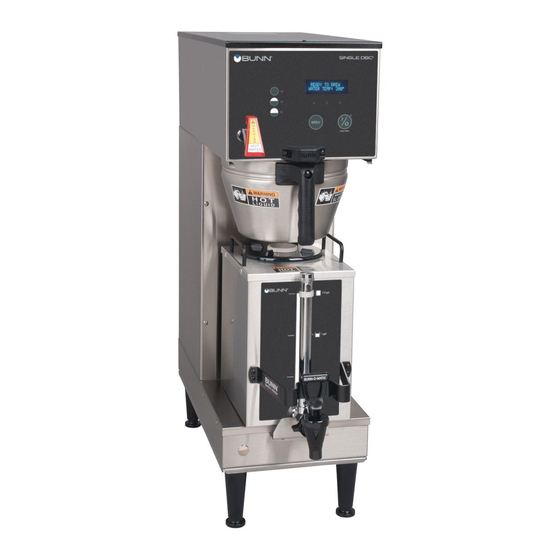

SINGLE
®
WITH SMART FUNNEL
Dual Voltage Model
41343.0000D 4/12 ©2010 Bunn-O-Matic Corporation
GPR DBC-DV
PROGRAMMING MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
DUAL
WITH SMART FUNNEL
®
GPR-DBC
®
