N58L00003.eps F58FSDBBB0.eps F58RSDACA0.eps E58BAAAAE0.eps
F58SKDIBK10.eps F58TEBCAE0.eps N58CAAAAC14.eps F58XFAAAA0.eps
N58YDAAAC4.eps N58I115TServo.eps W241912901.eps S241912901.eps
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FPHS2687KF0
Series
Professional
Color
stainless
Volts
115
Wiring Diagram
241912901
Owner's Guide
241979200
Market
North America
Energy Guide
241935557
Service Data Sheet 240389638
Publication No.
5995535696
09/03/18
(EN/SERVICE/DCS)
137
Copyright

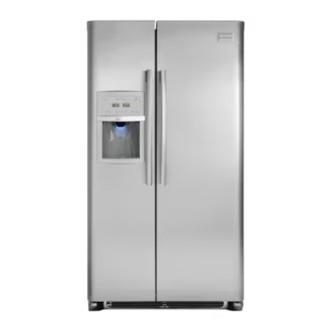

SIDE-BY-SIDE
REFRIGERATOR
Model No.
FPHS2687K
©
All rights reserved.
Advertisement
Table of Contents
Related Manuals for Frigidaire FPHS2687K
Summary of Contents for Frigidaire FPHS2687K
- Page 1 Product No. FPHS2687KF0 Series Professional Color stainless Volts Wiring Diagram 241912901 Owner's Guide 241979200 Market North America Energy Guide 241935557 Service Data Sheet 240389638 SIDE-BY-SIDE N58L00003.eps F58FSDBBB0.eps F58RSDACA0.eps E58BAAAAE0.eps REFRIGERATOR F58SKDIBK10.eps F58TEBCAE0.eps N58CAAAAC14.eps F58XFAAAA0.eps N58YDAAAC4.eps N58I115TServo.eps W241912901.eps S241912901.eps P.O. BOX 212378 Model No.
-
Page 2: Freezer Door
Publication No: 5995535696 FPHS2687KF0 FREEZER DOOR F58FSDBBB0 03/09... - Page 3 FPHS2687KF0 Publication No: 5995535696 FREEZER DOOR POS. NO PART NO. DESCRIPTION 241786002 Gasket-frzr door, white, magnetic 240334201 Bin-door, frzr-upper 240351601 Bin-door 241837185 Door-frzr, stainless, complete assy 241942604 Door Stop, black, frzr 241972501 Handle-door, stainless 240442706 Screw-#10-32 X 3/4, zinc 241990302 Bearing-hinge(frz), closer 241760401 Bearing, hinge, top...
-
Page 4: Refrigerator Door
Publication No: 5995535696 FPHS2687KF0 REFRIGERATOR DOOR F58RSDACA0 03/09... - Page 5 FPHS2687KF0 Publication No: 5995535696 REFRIGERATOR DOOR POS. NO PART NO. DESCRIPTION 241786001 Gasket-refr door, white, magnetic 240323002 Bin-door, pseudo, bottom 240326203 Door-dairy 242015101 Label-nameplate 241942603 Door Stop, black, ref 241837260 Door-refr, stainless, complete assy 241972501 Handle-door, stainless 240442706 Screw-#10-32 X 3/4, zinc 241990301 Bearing-hinge, gray 241760403...
- Page 6 Publication No: 5995535696 FPHS2687KF0 CABINET E58BAAAAE0 03/09...
- Page 7 FPHS2687KF0 Publication No: 5995535696 CABINET POS. NO PART NO. DESCRIPTION 240435914 Cover-air duct 241719711 Cover-evap coil, lower 5303208309 Plug-hole, factory test 14A# 241547901 Switch-light/lamp, frzr door 218252201 Screw, #8 truss hd, 10-32CA x 0.500 241548003 Screw, 10-32 x 3/8 241917801 Plate-door closer 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special...
- Page 8 Publication No: 5995535696 FPHS2687KF0 SHELVES 108A 107B F58SKDIBK10 03/09...
- Page 9 FPHS2687KF0 Publication No: 5995535696 SHELVES POS. NO PART NO. DESCRIPTION 241510607 Trim-basket 240350604 Shelf-freezer, glass, upper 240324101 Shelf-pizza 240350605 Shelf-freezer, glass, lower 241552801 Light Bulb 241622802 Socket-light, frz light 16*# 241797601 Harness-wiring 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625 240350136 Shelf-"Spill-Safe", cantilever, sliding 240599302...
- Page 10 Publication No: 5995535696 FPHS2687KF0 CONTROLS 210A F58TEBCAE0 03/09...
- Page 11 FPHS2687KF0 Publication No: 5995535696 CONTROLS POS. NO PART NO. DESCRIPTION 5308000010 Fan Blade, red, evaporator fan 215474201 Washer, "slinger", nylon, evap fan shaft 241563601 Bushing-motor mtg 241845301 Bushing-motor mtg 241509402 Motor, evaporator fan 241517701 Clip, evap fan motor 240597203 Sensor 241845401 Housing-sensor 242000406...
- Page 12 Publication No: 5995535696 FPHS2687KF0 SYSTEM N58CAAAAC14 03/09...
- Page 13 FPHS2687KF0 Publication No: 5995535696 SYSTEM POS. NO PART NO. DESCRIPTION 240333603 Condenser 218679607 Block-evap coil, styrofoam, (2) 218944001 Drier-filter, R134a System 241516901 Cord-service 241834802 Harness-wiring, machine compt 6* # 241519902 Harness-wiring 14 # 240316107 Heater-defrost 15 # 5303918284 Evaporator Kit 5308000110 Strap-evap/heater, aluminum, (2) 21 #...
-
Page 14: Ice And Water Dispenser
Publication No: 5995535696 FPHS2687KF0 ICE & WATER DISPENSER F58XFAAAA0 03/09... - Page 15 FPHS2687KF0 Publication No: 5995535696 ICE & WATER DISPENSER POS. NO PART NO. DESCRIPTION 218976419 Tube-water inlet, valve to door 218976429 Tube-water inlet, 97.50", brown/tan 218976915 Tube-water inlet, inlet valve, to filter 240561703 Seal-water inlet, inlet valve, to ice maker 241973815 Switch Assembly, overlay, silver 241946804 Cover-module...
-
Page 16: Ice Container
Publication No: 5995535696 FPHS2687KF0 ICE CONTAINER 37A 34 34 33 N58YDAAAC4 03/09... - Page 17 FPHS2687KF0 Publication No: 5995535696 ICE CONTAINER POS. NO PART NO. DESCRIPTION 241716101 Auger-ice 241685201 Cam-drive 241561302 Container-ice, bucket only 241685101 Drum-ice disp 241561402 Front-ice container 241726501 Bar-drive 241685301 Gate 241555401 Light Bulb 241559801 Socket-light 241684501 Drive Blade 18 # 241676201 Motor-auger 241522901 Harness-wiring, icmkr/container...
-
Page 18: Ice Maker
Publication No: 5995535696 FPHS2687KF0 ICE MAKER INSTALLATION PARTS N58I115TServo 03/09... - Page 19 FPHS2687KF0 Publication No: 5995535696 ICE MAKER POS. NO PART NO. DESCRIPTION 218976419 Tube-water inlet, valve to door 218976429 Tube-water inlet, 97.50", brown/tan 218976915 Tube-water inlet, inlet valve, to filter 240561703 Seal-water inlet, inlet valve, to ice maker 5304456650 Spring-shutoff arm, ice maker 5304458380 Gear 5304458383...
-
Page 20: Wiring Schematic
Publication No: 5995535696 FPHS2687KF0 WIRING SCHEMATIC 03/09... -
Page 21: Wiring Diagram
FPHS2687KF0 Publication No: 5995535696 WIRING DIAGRAM 03/09 # Functional Parts * Non-Illustrated Parts...
