PRODUCT NO.
FDB641RJB0
FDB641RJS0
MARKET
North America
SERVICE DATA SHEET # - 154374101
OWNER'S GUIDE # - 154374201
WIRING DIAGRAM # - 154374101
101 Masters Blvd.
Anderson, SC 29624
BASE MODEL NO.
COLOR
FDB641RJ
black
FDB641RJ
white
Publication No.
5995337390
-EN/SERVICE /ECL
FACTORY PARTS CATALOG
000504
821
©2000 White Consolidated Industries, Inc.
All rights reserved

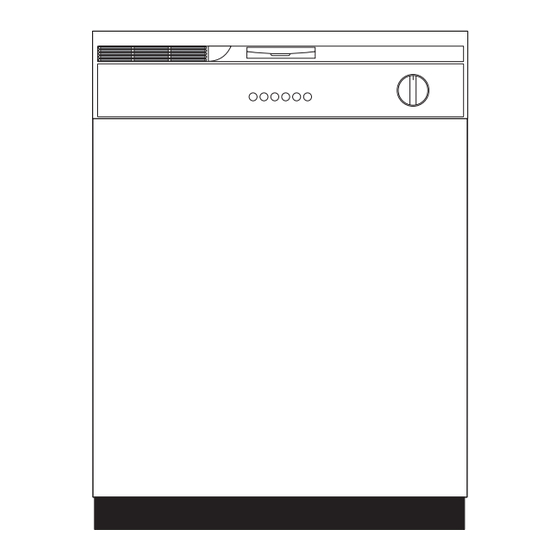

DISHWASHER
24" BUILT IN
DISHWASHER
Model No.
FDB641RJ
Advertisement
Related Manuals for Frigidaire FDB641RJ
Summary of Contents for Frigidaire FDB641RJ
- Page 1 FACTORY PARTS CATALOG DISHWASHER PRODUCT NO. BASE MODEL NO. COLOR FDB641RJB0 FDB641RJ black FDB641RJS0 FDB641RJ white MARKET North America SERVICE DATA SHEET # - 154374101 OWNER’S GUIDE # - 154374201 WIRING DIAGRAM # - 154374101 24" BUILT IN DISHWASHER Model No. 101 Masters Blvd.
-
Page 2: Control Panel
Publication No. FDB641RJ 5995337390 CONTROL PANEL 05/00... - Page 3 FDB641RJ Publication No. 5995337390 CONTROL PANEL A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0) POS. NO PART NO DESCRIPTION 154368203 Panel-control,black 154368201 Panel-control,white 154372103 Insert-control pnl,black 154372101 Insert-control pnl,white 154351102 Timer 154373701 Switch-selector,6 button 154248601 Shield-switch 5303318719 Screw,mtg. 154239503 Knob-timer 154239501 Knob-timer,white 154283701...
- Page 4 Publication No. FDB641RJ 5995337390 DOOR 05/00...
- Page 5 FDB641RJ Publication No. 5995337390 DOOR A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0) POS. NO PART NO DESCRIPTION 154345902 Spring-door,(2) 154325201 Spring linkage,(2) 154093301 Screw-arm assy,(4) 154325304 Arm Assy,LH 154325303 Arm Assy,RH 154211501 Pin-arm 154079601 Nut-arm assy,(4) 154299002 Door-inner assy 154226601 Liner grate 154230101...
- Page 6 Publication No. FDB641RJ 5995337390 05/00...
- Page 7 FDB641RJ Publication No. 5995337390 A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0) POS. NO PART NO DESCRIPTION 154209301 Tub assy,w/frame parts 154211601 Strike-door 154211801 Gasket-tub 154200602 Screw,10-16 x 3/8 ,hex 154333901 Roller-tub 5303943103 Screw w/washer,(8) 154239801 Tubing-water inlet 5303318539 Clamp-tubing,(2) 24 # 154225602 Hose-drain...
-
Page 8: Motor & Pump
Publication No. FDB641RJ 5995337390 MOTOR & PUMP 05/00... - Page 9 FDB641RJ Publication No. 5995337390 MOTOR & PUMP A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0) POS. NO PART NO DESCRIPTION 154247601 Heater 154106201 Nut-heater,(2) 154289801 Shield-heater terminal 154359701 Bracket-heater,(2) 154245501 Cover-volute 154246801 Gasket-sump 154365902 Housing-sump 154246502 Retainer,sump 154250801 Spray arm-lower 154313601 Spray arm-center 24A*...
- Page 10 Publication No. FDB641RJ 5995337390 FRAME 05/00...
- Page 11 FDB641RJ Publication No. 5995337390 FRAME A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0) POS. NO PART NO DESCRIPTION 154359801 Valve-water 154208701 Brace-front 154322903 Toeplate-adjustable 154370703 Kickplate/Baffle Assy,black 5300808658 Screw,#8A x .375" 154200601 Screw-#10-16 x 3/8 154210901 Screw-leveling 154209601 Cover-junction box 154041001 Screw,plask #1 ,10-10 x 9/16 154200602...
- Page 12 Publication No. FDB641RJ 5995337390 RACKS 05/00...
- Page 13 FDB641RJ Publication No. 5995337390 RACKS A = FDB641RJ (FDB641RJB0) B = FDB641RJ (FDB641RJS0) POS. NO PART NO DESCRIPTION 154320903 Rack assy-lower 154295201 Basket-Silverware 154321107 Rack assy-upper 5300809974 • Wheel & bracket assy,upper rack 5300809927 Cap-slide,(4) 154232701 Slide-rack,(2) 154174501 Wheel & bracket assy,lower rack 154304001 Base-funnel 154251801...
