NOTE: Read the entire instruction manual before starting the
installation.
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury, or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory-authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Use quenching cloth for brazing operations.
Have fire extinguisher available. Read these instructions thor-
oughly and follow all warnings or cautions included in literature
and attached to the unit. Consult local building codes and National
Electrical Code (NEC) for special requirements.
Recognize safety information. This is the safety-alert symbol
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury.
Understand the signal words DANGER, WARNING, and CAU-
TION. These words are used with the safety-alert symbol. DAN-
GER identifies the most serious hazards which will result in severe
personal injury or death.
WARNING signifies hazards which could result in personal injury
or death. CAUTION is used to identify unsafe practices which
would result in minor personal injury or product and property
damage. NOTE is used to highlight suggestions which will result
in enhanced installation, reliability, or operation.
WARNING: Before installing, modifying, or servicing
system, main electrical disconnect switch must be in the
OFF position. There may be more than 1 disconnect
switch. Lock out and tag switch with a suitable warning
label. Electrical shock can cause personal injury or death.
CAUTION: Puron® (R-410A) systems operate at higher
pressures than standard R-22 systems. Be certain that
service equipment is rated for R-410A. Some R-22
service equipment may not be acceptable. Check with
your distributor.
INSTALLATION RECOMMENDATIONS
NOTE: In some cases noise in the living area has been traced to
gas pulsations from improper installation of equipment.
1. Locate unit away from windows, patios, decks, etc. where
unit operation sound may disturb customer.
2. Ensure that vapor and liquid tube diameters are appropriate
to capacity of unit.
3. Run refrigerant tubes as directly as possible by avoiding
unnecessary turns and bends.
installation and
start-up instructions
TWO-SPEED PURON® PLUS HEAT PUMP
WITH PURON® REFRIGERANT
.
—1—
Cancels: II 698B-24-3

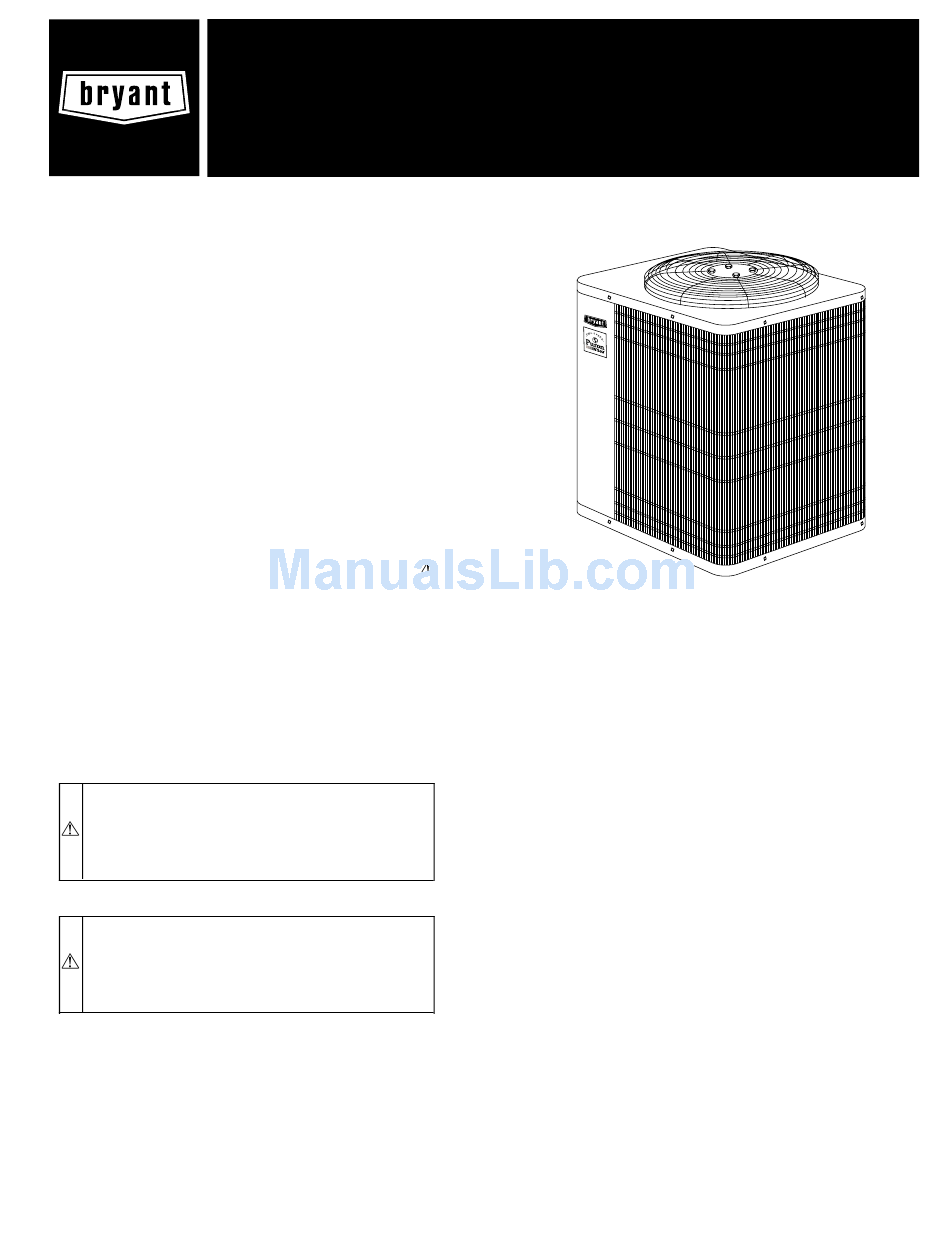

Fig. 1—Model 698B
4. Leave some slack between structure and unit to absorb
vibration.
5. When passing refrigerant tubes through the wall, seal
opening with RTV or other pliable silicon-based caulk. (See
Fig. 2.)
6. Avoid direct tubing contact with water pipes, duct work,
floor joists, wall studs, floors, and walls.
7. Do not suspend refrigerant tubing from joists and studs with
a rigid wire or strap which comes in direct contact with
tubing. (See Fig. 2.)
8. Ensure that tubing insulation is pliable and completely
surrounds vapor tube.
9. When necessary, use hanger straps which are 1 in. wide and
conform to shape of tubing insulation. (See Fig. 2.)
10. Isolate hanger straps from insulation by using metal sleeves
bent to conform to shape of insulation.
When outdoor unit is connected to factory-approved indoor unit,
outdoor unit contains system refrigerant charge for operation with
indoor unit of the same size when connected by 15 ft of
field-supplied or factory accessory tubing. For proper unit opera-
tion, check refrigerant charge using charging information located
on control box cover or in the Check Charge section of this
instruction.
IMPORTANT: Maximum liquid-line size is 3/8–in O.D. for all
residential applications.
IMPORTANT: Always install the factory-supplied Puron® heat
pump (bi-flow) liquid line filter drier. Obtain replacement filter
driers from your distributor or branch.
698B
II 698B-24-4
2-03
A01050

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 698B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bryant 698B

  • Page 1 installation and 698B start-up instructions TWO-SPEED PURON® PLUS HEAT PUMP WITH PURON® REFRIGERANT Cancels: II 698B-24-3 II 698B-24-4 2-03 NOTE: Read the entire instruction manual before starting the installation. SAFETY CONSIDERATIONS Improper installation, adjustment, alteration, service, maintenance, or use can cause explosion, fire, electrical shock, or other conditions which may cause death, personal injury, or property damage.
  • Page 2 NOTE: Avoid contact between tubing and structure OUTDOOR WALL INDOOR WALL CAULK LIQUID TUBE VAPOR TUBE INSULATION THROUGH THE WALL JOIST HANGER STRAP (AROUND VAPOR INSULATION TUBE ONLY) VAPOR TUBE ⁄ ⁄ IN. DIA TIEDOWN KNOCKOUTS (2) PLACES IN BASEPAN A97375 1 MIN.
  • Page 3: Fan Coils

    8. Install vapor elbow (See Fig. 6B) with equalizer adapter to suction tube of line set and suction connection to indoor coil. Adapter has a 1/4-in. male flare connector for attaching equalizer tube. COIL 9. Connect equalizer tube of TXV to 1/4-in. equalizer fitting SENSING on vapor line adapter.
  • Page 4: Make Piping Connections

    INLET COIL BULB INSULATION TAPE A01418 Fig. 6—TXV Kit Contents TABLE 1—REFRIGERANT CONNECTIONS AND of the Long-Line Guideline section in the Application Guideline RECOMMENDED LIQUID AND VAPOR TUBE and Service Manual for Residential Split-System Air Conditioners DIAMETERS (IN.) and Heat Pumps Using Puron® Refrigerant. If required by Long-Line Application Guideline, install LSV kit Part No.
  • Page 5 TABLE 2—ACCESSORY USAGE REQUIRED FOR LONG-LINE REQUIRED FOR SEA-COAST ACCESSORY APPLICATIONS APPLICATIONS (OVER 50 FT) (WITHIN 2 MILES) Coastal Filter Support Feet Recommended Puron® Hard Shutoff TXV Yes† Yes† Puron® Liquid-Line Solenoid Valve for Heating LHALS0401LLS * For tubing line sets between 50 and 175 ft, or more than 20 ft vertical differential refer to Application Guideline and Service Manual for Residential Split-System Air Conditioners and Heat Pumps using Puron®...
  • Page 6 SWEAT/FLARE 5000 ADAPTER 4500 4000 LEAK IN TEFLON 3500 SYSTEM SEAL 3000 2500 2000 VACUUM TIGHT 1500 TOO WET 1000 PISTON TIGHT DRY SYSTEM PISTON BODY A95424 MINUTES A95424 LIQUID SERVICE VALVE Fig. 10—Deep Vacuum Graph EVACUATE A97556 BREAK VACUUM WITH DRY NITROGEN Fig.
  • Page 7 recommended airflow and for adjustments to the manual switches DISCONNECT labeled SW1, A/C and CF on the control board refer to the furnace PER N. E. C. AND/ OR LOCAL CODES Installation, Start-Up, Operating Instructions. CONTACTOR 315AAV/315JAV utilizes a control center that allows the install- ing technician to select the proper airflows.
  • Page 8 PROGRAMMABLE THERMIDISTAT TWO-SPEED THERMOSTAT TWO-SPEED CONTROL SINGLE-STAGE HEAT PUMP MODEL 2S FAN COIL HEAT PUMP MODEL RH FURNACE RVS COOLING O/ W2 JUMPER COOL/HEAT 24 VAC HOT Y1/W2 STAGE 1 W/W1 HEAT STAGE 3 COOL/HEAT COOL/HEAT Y/Y2 Y1/W2 STAGE 2 STAGE 1 RVS COOLING O/W2...
  • Page 9 THERMIDISTAT VARIABLE-SPEED PROGRAMMABLE VARIABLE CONTROL DUAL FUEL CONDENSING TWO-SPEED SPEED MODEL RH FURNACE HEAT PUMP THERMOSTAT CONDENSING TWO-SPEED MODEL DF HEAT PUMP FURNACE O/W2 RVS COOLING 24 VAC HOT COOL/HEAT Y1/W2 STAGE 1 W/W1 HEAT STAGE 3 W/W1 HEAT STAGE 3 W/ W1 W/ W1 (FURNACE)
  • Page 10: Wiring Diagram Notes

    AUTO or ON as desired. Wait for appropriate time delay(s). Operate unit for 15 minutes. Check refrigerant charge. NOTE: Bryant electronic thermostats are equipped with a 15 minute staging timer. This timer prevents the dual capacity system A. UNIT CHARGE from operating at high capacity until unit has been operating in low Factory charge is shown on unit rating plate.
  • Page 11: System Functions And Sequence Of Op- Eration

    NOTE: In heating mode, check refrigerant charge only when Adjust charge in both heating and cooling by following procedure shown on charging tables located on pink charging label on back pressures are stable. If accessory vapor pressure switch is applied side of access panel.
  • Page 12 NOTE: When two-speed unit is operating in low-capacity cool- D. STATUS FUNCTION LIGHTS ing, system vapor (suction) pressure will be higher than a standard A system control STATUS function light is located on the outdoor single-speed system or high-speed operation. This normal opera- unit control board.
  • Page 13 After termination of a defrost cycle, the outdoor fan delays come 3. Display the appropriate error code on the status light (see on for 20 sec. This allows refrigerant system to recover outdoor Table 4). coil heat and minimize the “steam cloud” effect. 4.
  • Page 14: Final Checks

    XIV. FINAL CHECKS 2. Tighten service valve stem caps to 1/12-turn past finger tight. IMPORTANT: Before leaving job, be sure to do the following: 3. Leave User’s Manual with owner. Explain system operation 1. Ensure that all wiring and tubing is secure in unit before and periodic maintenance requirements outlined in manual.
  • Page 15 A03030 Fig. 18—Wiring Diagram—024, 036, 048 —15—...
  • Page 16 TIME (MIN) START RELAY COMM STATUS FAN CAP A B C D TO INDOOR UNIT A03031 Fig. 19—Wiring Diagram—060 © 2003 Bryant Heating & Cooling Systems 7310 W. Morris St. Indianapolis, IN 46231 —16— Printed in U.S.A. 698b244 Catalog No. 5369-812...
