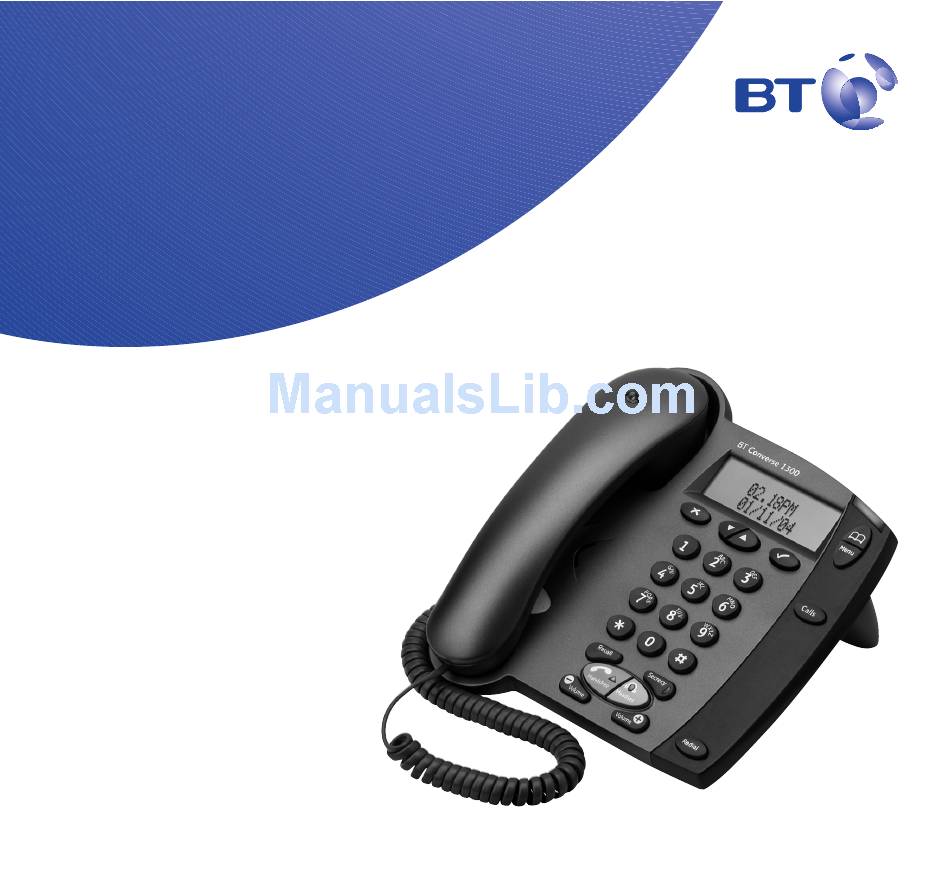

Page 1: User Guide
User Guide BT CONVERSE 1300... - Page 2 BT Converse 1300 corded telephone 200 Name and number directory. ■ Nine pre-set BT Calling Feature numbers giving easy ■ access to, directory enquiries, Call Diversion, Call Waiting and the 1571 BT answering service. Headset socket lets you make and receive calls privately ■...
- Page 3 Stand for desk-mounting ■ simple instructions in ‘Getting Started’, (fitted) on the next few pages. Wall mounting plugs ■ and screws Hearing aid friendly ■ The BT Converse 1300 is fitted with an inductive coupler so it is compatible with hearing aids.
-
Page 4: Table Of Contents
Handsfree ..... .11 BT Answer 1571 ....23 Volume . -
Page 5: Getting Started
POWER LINE 1 Optional 2. Your BT Converse 1300 is designed to run from a power supply or batteries. Batteries are not supplied with the unit, but if you want to fit them follow the instructions below. - Page 6 Getting started If you are not using the power supply provided, batteries are required for the message waiting feature to work. Turn the phone over and remove the battery compartment cover. Insert 4 x AA batteries as shown and replace the cover. Battery low indicator If you have batteries fitted and they need replacing, the...
- Page 7 If you are not sure which setting to use, please contact your service provider or switchboard manager. 7. Your BT Converse 1300 has a data socket so you can connect another product such as a modem. If required, connect the device to the DATA port on the side of the phone.
-
Page 8: Getting To Know Your Phone
Calls (X) Clear Deletes characters and numbers from the directory and redial list. Recall For use with a switchboard and some BT Calling Features, page 14. Handsfree Make and receive calls via the built-in loudspeaker, page 11. Redial Volume + –... -
Page 9: Display Icons
Opens the directory, page 15. call from the icon displayed same number if you have Menu displayed. batteries fitted Use the access BT Services and set-up options. and they need replacing. 12.18PM (TICK) Select Selects and confirms displayed options and entries. Handset Ringer’s 01/01/05 Dials the number entered. -
Page 10: Using The Phone
1. When the phone rings the call indicator light will also flash. Simply pick up the handset. Headset Headsets are not supplied with your BT Converse 1300. However, you can buy headsets (with RJ11 jack plug) by calling 0870 240 522 or online at www.withandwithoutwires.com... -
Page 11: Handsfree
Using the phone Receiving a headset call 1. When the phone rings and the headset is plugged in, press to answer. 2. When the call is finished, press to end the call. Handsfree Make and receive calls without lifting the handset. Transferring the call to the handset or headset During a handsfree conversation... -
Page 12: Volume
Using the phone Volume Default volume levels Handset – Level 1 Whether using the handset, headset or handsfree, you Handsfree – Level 3 Headset – Level ? can adjust the volume of your caller’s voice. 1. During a call, press to adjust the volume. -
Page 13: Secrecy
Using the phone Save a number from the redial list to the directory When reviewing the redial list you can store a number to the directory. Numbers can be no longer than 28 digits and can include pause, 1. While reviewing the redial list, press then (When you store your very first entry in the directory you will not need to press... -
Page 14: Message Waiting
If you are not using the power 1. If you subscribe to your network’s answering service (e.g. supply provided, you will need to fit batteries (page 6) to use the BT’s 1571) and you have new messages, your Message message waiting feature. Waiting indicator will flash. -
Page 15: Directory
Directory Store your 200 most frequently used names and You can store a number during a call or while the phone is in standby. numbers in the directory for easy dialling. Each name can Entries are automatically stored in be up to 16 characters long and each number up to 28 alphabetical order. -
Page 16: Edit A Directory Entry
Directory Edit a directory entry 1. To change a directory entry, press 2. Scroll to the entry you want and press 3. Scroll to display Edit Entry and press 4. Edit the name and press 5. Edit the number and press to confirm. -
Page 17: Menu
Menu Use the menu to adjust your phone’s settings to your preference. Ringer volume There are 4 volume settings. 1, 2, 3 and Off. = ringer off = ringer volume 3 1. Press and scroll to display Ringer Volume 2. Press 3. -
Page 18: Time & Date
Display shows 7. Press to return to standby. Contrast You can adjust the display contrast to suit your preference. There are 5 levels and your BT Converse 1300 is pre-set to level 2. Contrast 1. Press and scroll to display 2. -
Page 19: Bt Calling Features
Calls list. With some incoming calls, the telephone number of the caller is not available and cannot therefore be displayed. In this case your BT Converse 1300 provides you with some explanatory information. UNAVAILABLE –... -
Page 20: Calls List
BT Calling Features Calls list Your BT Converse 1300 lets you view details of the last 30 callers. Entries are stored in the order they were received. When a new call is received, the icon will flash on the display. If a new number is received when the list is full, the oldest entry is replaced. -
Page 21: Save An Entry From The Calls List To The Directory
BT Calling Features Save an entry from the calls list to the directory 1. Press . Display shows details of the most recently Calls received call. 2. Press to scroll through to the entry you want to save. 3. Press . -
Page 22: Delete All Entries In The Calls List
Display shows Entry Deleted Calling Features Your BT Converse 1300 gives you easy access to a range There is a tenth entry available so you can store another of BT Calling Features. Nine codes have been pre-stored name/number entry. -
Page 23: Menu Options
Call Waiting On Call Waiting Off Call Waiting Check BT Answer 1571 This calls BT’s answering service to access any voicemail messages you may have. Details on using the service are provided when you subscribe. 118500/118707 Calls BT’s residential or business directory enquiry service. -
Page 24: Call Divert
2. Scroll Call Diversion Off and press Wait for the number to be dialled and listen for confirmation. 3. Press For further information, see the BT Calling Features User Guide supplied when you subscribe to the services of your choice. -
Page 25: Reset Your Phone
BT Calling Features Reset If you change the pre-stored BT Calling Features numbers, you can reinstate the original numbers at any time by re-setting your phone to its original settings. These are: Ringer tone Tone 2 Ringer volume Level 3... - Page 26 BT Calling Features With some switchboards you may also need to switch your BT Converse 1300 from TONE dialling to PULSE dialling. Check with your switchboard manager or supplier to see if this is necessary. To set the access code 1.
-
Page 27: Help
Help No dial tone Is the line cord plugged into the phone socket? ■ Nothing happens when you dial Check the dialling mode switch is set to the correct position. Page 8. ■ Phone does not ring Is the ringer volume set to Off? Page 17. ■... -
Page 28: General Information
General information Safety information Do not open the handset or base. This could expose you to high voltages or other risks. ■ Never dispose of batteries in a fire. There is a serious risk of explosion and/or the release ■ of highly toxic chemicals. -
Page 29: Guarantee
Your BT Converse 1300 is guaranteed for a period of 12 months from the date of purchase. Subject to the terms listed below, the guarantee will provide for the repair of, or at BT’s or its agent’s discretion the option to replace the BT Converse 1300 or any component thereof, (other than batteries), which is identified as faulty or below standard, or as a result of inferior workmanship of materials. -
Page 30: Returning Your Phone
Your BT Converse 1300 has a REN of 1. A total REN of 4 is allowed. If the total REN of 4 is exceeded, the telephone may not ring. -
Page 31: Switchboard Compatibility
Hereby, TMX, declares that this BT Converse 1300 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformance for the BT Converse 1300 is available from TMX, Alpha Business Park, 28 White House Road, Ipswich, IP1 5LT. -
Page 32: Wall Mounting Your Phone
1. Unclip stand from the base of the phone and remove it. WARNING Before you wall-mount your Re-route the telephone line cord towards the bottom of BT Converse 1300, check that you are not drilling into any hidden the phone. wiring or pipes. - Page 33 Nothing in this publication forms any part of any contract. © British Telecommunications plc 2005. Registered Office: 81 Newgate Street, London EC1A 7AJ. Registered in England No. 1800000. BT Converse 1300 (03/05) 6 Designed and produced by The Art & Design Partnership Ltd. Printed in China...
