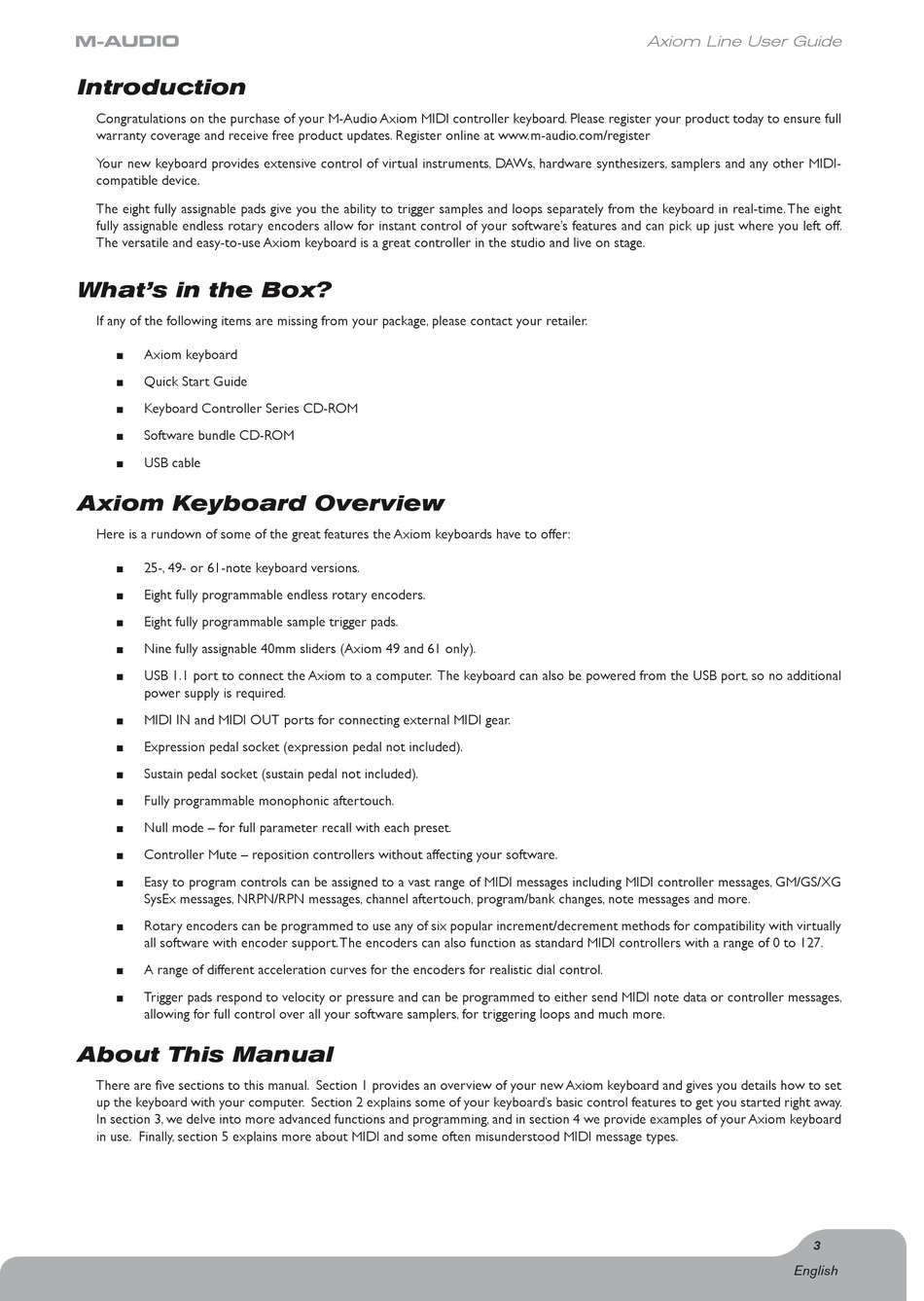

English; Introduction; What's In The Box; Axiom Keyboard Overview - M-Audio Axiom Line User Manual

Introduction

Congratulations on the purchase of your M-Audio Axiom MIDI controller keyboard. Please register your product today to ensure full
warranty coverage and receive free product updates. Register online at www.m-audio.com/register
Your new keyboard provides extensive control of virtual instruments, DAWs, hardware synthesizers, samplers and any other MIDI-
compatible device.
The eight fully assignable pads give you the ability to trigger samples and loops separately from the keyboard in real-time. The eight
fully assignable endless rotary encoders allow for instant control of your software's features and can pick up just where you left off.
The versatile and easy-to-use Axiom keyboard is a great controller in the studio and live on stage.

What's in the Box?

If any of the following items are missing from your package, please contact your retailer.
Axiom keyboard
<
Quick Start Guide
<
Keyboard Controller Series CD-ROM
<
Software bundle CD-ROM
<
USB cable
<

Axiom Keyboard Overview

Here is a rundown of some of the great features the Axiom keyboards have to offer:
25-, 49- or 61-note keyboard versions.
<
Eight fully programmable endless rotary encoders.
<
Eight fully programmable sample trigger pads.
<
Nine fully assignable 40mm sliders (Axiom 49 and 61 only).
<
USB 1.1 port to connect the Axiom to a computer. The keyboard can also be powered from the USB port, so no additional
<
power supply is required.
MIDI IN and MIDI OUT ports for connecting external MIDI gear.
<
Expression pedal socket (expression pedal not included).
<
Sustain pedal socket (sustain pedal not included).
<
Fully programmable monophonic aftertouch.
<
Null mode – for full parameter recall with each preset.
<
Controller Mute – reposition controllers without affecting your software.
<
Easy to program controls can be assigned to a vast range of MIDI messages including MIDI controller messages, GM/GS/XG
<
SysEx messages, NRPN/RPN messages, channel aftertouch, program/bank changes, note messages and more.
Rotary encoders can be programmed to use any of six popular increment/decrement methods for compatibility with virtually
<
all software with encoder support. The encoders can also function as standard MIDI controllers with a range of 0 to 127.
A range of different acceleration curves for the encoders for realistic dial control.
<
Trigger pads respond to velocity or pressure and can be programmed to either send MIDI note data or controller messages,
<
allowing for full control over all your software samplers, for triggering loops and much more.

About This Manual

There are five sections to this manual. Section 1 provides an overview of your new Axiom keyboard and gives you details how to set
up the keyboard with your computer. Section 2 explains some of your keyboard's basic control features to get you started right away.
In section 3, we delve into more advanced functions and programming, and in section 4 we provide examples of your Axiom keyboard
in use. Finally, section 5 explains more about MIDI and some often misunderstood MIDI message types.
