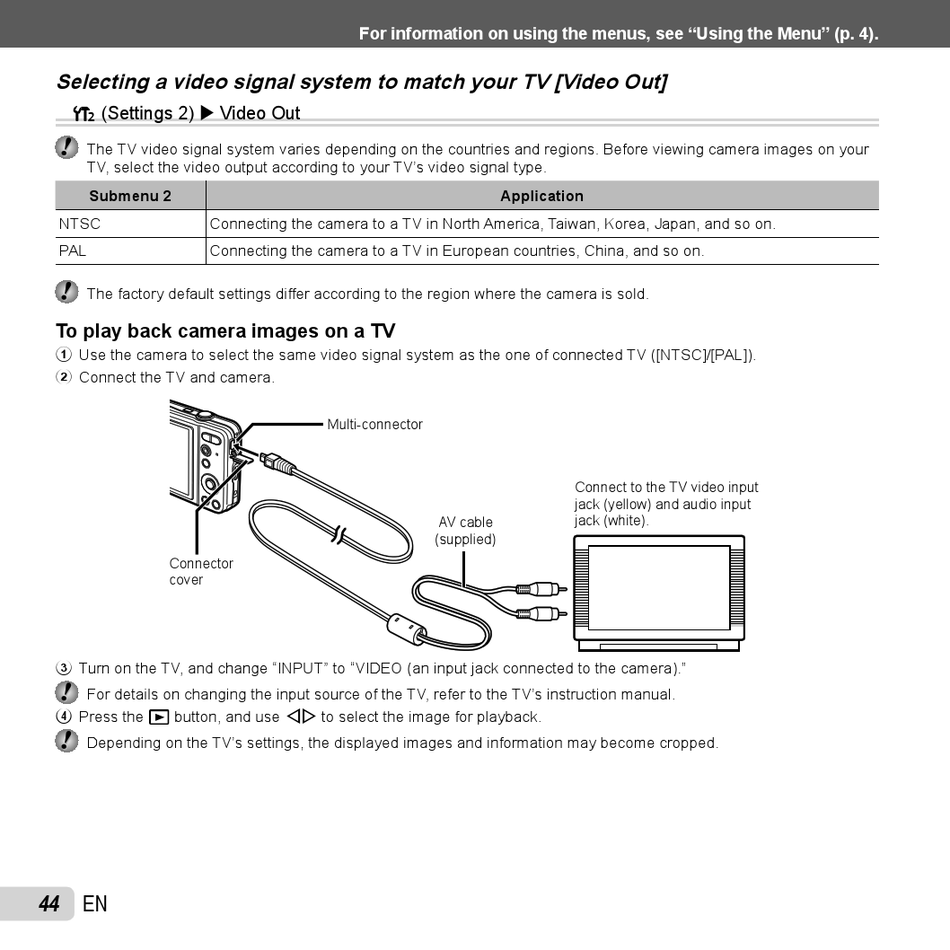

Selecting a video signal system to match your TV [Video Out] Selecting a video signal system to match your TV [Video Out]
s (Settings 2)
The TV video signal system varies depending on the countries and regions. Before viewing camera images on your
TV, select the video output according to your TV's video signal type.
Submenu 2
NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on.
PAL Connecting the camera to a TV in European countries, China, and so on.
The factory default settings differ according to the region where the camera is sold.
To play back camera images on a TV To play back camera images on a TV
1 Use the camera to select the same video signal system as the one of connected TV ([NTSC]/[PAL]).
2 Connect the TV and camera.
Connector
cover
3 Turn on the TV, and change "INPUT" to "VIDEO (an input jack connected to the camera)."
For details on changing the input source of the TV, refer to the TV's instruction manual.
4 Press the q button, and use HI to select the image for playback.
Depending on the TV's settings, the displayed images and information may become cropped.
44 EN
For information on using the menus, see "Using the Menu" (p. 4).

Video Out

Multi-connector
Application
Connect to the TV video input
jack (yellow) and audio input
jack (white).
AV cable
(supplied)
