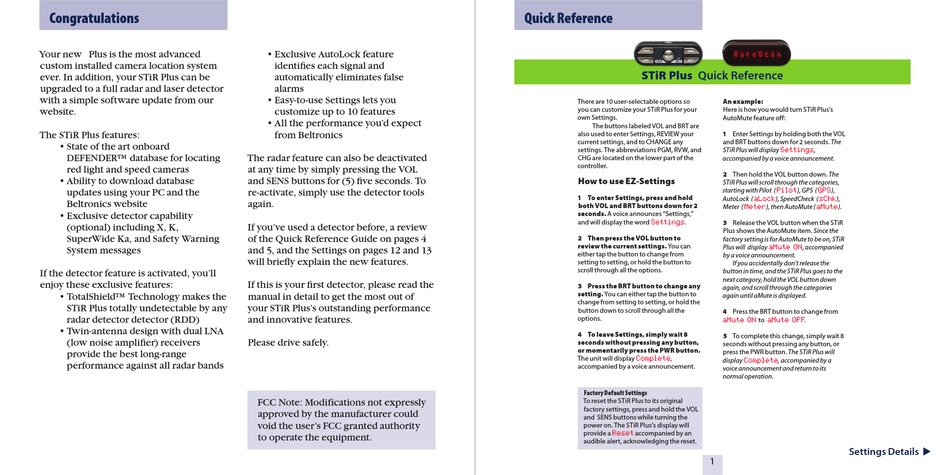

Beltronics STiR Plus Owner's Manual page 2

Congratulations
Your new Plus is the most advanced
custom installed camera location system
ever. In addition, your STiR Plus can be
upgraded to a full radar and laser detector
with a simple software update from our
website.
The STiR Plus features:
• State of the art onboard
DEFENDER™ database for locating
red light and speed cameras
• Ability to download database
updates using your PC and the
Beltronics website
• Exclusive detector capability
(optional) including X, K,
SuperWide Ka, and Safety Warning
System messages
If the detector feature is activated, you'll
enjoy these exclusive features:
• TotalShield™ Technology makes the
STiR Plus totally undetectable by any
radar detector detector (RDD)
• Twin-antenna design with dual LNA
(low noise amplifier) receivers
provide the best long-range
performance against all radar bands
• Exclusive AutoLock feature
identifies each signal and
automatically eliminates false
alarms
• Easy-to-use Settings lets you
customize up to 10 features
• All the performance you'd expect
from Beltronics
The radar feature can also be deactivated
at any time by simply pressing the VOL
and SENS buttons for (5) five seconds. To
re-activate, simply use the detector tools
again.
If you've used a detector before, a review
of the Quick Reference Guide on pages 4
and 5, and the Settings on pages 12 and 13
will briefly explain the new features.
If this is your first detector, please read the
manual in detail to get the most out of
your STiR Plus's outstanding performance
and innovative features.
Please drive safely.
FCC Note: Modifications not expressly
approved by the manufacturer could
void the user's FCC granted authority
to operate the equipment.
Quick Reference
STiR Plus Quick Reference
There are 10 user-selectable options so
you can customize your STiR Plus for your
own Settings.
The buttons labeled VOL and BRT are
also used to enter Settings, REVIEW your
current settings, and to CHANGE any
settings. The abbreviations PGM, RVW, and
CHG are located on the lower part of the
controller.
How to use EZ-Settings
1 To enter Settings, press and hold
both VOL and BRT buttons down for 2
seconds. A voice announces "Settings,"
Settings
and will display the word .
2 Then press the VOL button to
review the current settings. You can
either tap the button to change from
setting to setting, or hold the button to
scroll through all the options.
3 Press the BRT button to change any
setting. You can either tap the button to
change from setting to setting, or hold the
button down to scroll through all the
options.
4 To leave Settings, simply wait 8
seconds without pressing any button,
or momentarily press the PWR button.
The unit will display Complete ,
accompanied by a voice announcement.
Factory Default Settings
To reset the STiR Plus to its original
factory settings, press and hold the VOL
and SENS buttons while turning the
power on. The STiR Plus's display will
provide a Reset accompanied by an
audible alert, acknowledging the reset.
An example:
Here is how you would turn STiR Plus's
AutoMute feature off:
1 Enter Settings by holding both the VOL
and BRT buttons down for 2 seconds. The
STiR Plus will display Settings ,
accompanied by a voice announcement.
2 Then hold the VOL button down. The
STiR Plus will scroll through the categories,
Pilot GPS
starting with Pilot ( ), GPS ( ),
aLock sChk
AutoLock ( ), SpeedCheck ( ),
Meter aMute
Meter ( ), then AutoMute ( ).
3 Release the VOL button when the STiR
Plus shows the AutoMute item. Since the
factory setting is for AutoMute to be on, STiR
Plus will display aMute ON , accompanied
by a voice announcement.
If you accidentally don't release the
button in time, and the STiR Plus goes to the
next category, hold the VOL button down
again, and scroll through the categories
again until aMute is displayed.
4 Press the BRT button to change from
aMute ON aMute OFF
to .
5 To complete this change, simply wait 8
seconds without pressing any button, or
press the PWR button. The STiR Plus will
display Complete , accompanied by a
voice announcement and return to its
normal operation.
Settings Details 
