Beltronics Sti-R Installation Manual

R O T C E T E D Y T E F A S
STi-R Comes Complete
Front Radar Receiver Miniature Controller
• Weather-proof Front Radar and • Controller mounts easily to console for
Laser Receiver easy to reach access

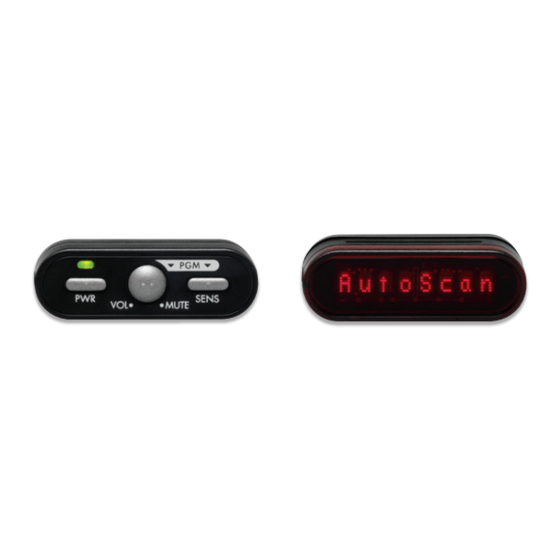

Miniature Display
• Mounting bracket with stainless
steel hardware
• Miniature Display easily mounts to
• Built-in 6 foot shielded cable with water instrument pod,dashboard or console
proof connector
• In-Dash trim bezel allows custom in-dash
• 13 foot shielded cable with in-line installation
waterproof connector
Interface
• Wire ties to secure cable
• Central module connects to switched
12-volt power and ground
• All components plug directly in using
modular connections
• 3M connector taps into existing vehicle
wiring
Beltronics
5442 West Chester Road
West Chester OH 45069
©2007 BELTRONICS, STi-R, TotalShield Technology and AutoScan are trademarks of BELTRONICS USA Inc.
Safety Warning System is a registered trademark of Safety Warning System L.L.C.
Manual Installation
• •
R E S A L R A D A R L A
Documentation
• Comprehensive Owner's Manual
• Installation Manual
Built-in Diagnostics
• Confirms all components are operational
Customer Service 800-341-2288
www.beltronics.com

Read This First
T I G I D
Important Installation
Warnings
Performance
Warning
Important Notes
Please read both sides of these
instructions before starting your
installation.
1 A professional installer must 3 If your vehicle is damaged
install your new STi-R. during installation,its safety
Installation of this system requires systems may be compromised,
experience and expertise in which could cause personal injury
automotive electronics.Car Audio or property damage.
specialists and many car dealers
4 Improper installation may void
can install STi-R for you.
STi-R's warranty.
2 Attempting to install this
product without expertise in
automotive electronics
installation can cause personal
injury,or damage to your vehicle.
To get the best performance
possible,the mounting location of
the front Radar and Laser Receiver
is critical. Although radar signals
will pass through some types of
plastic,it is critical that this
receiver be mounted level,and
have an unobstructed"view"of
the road.
