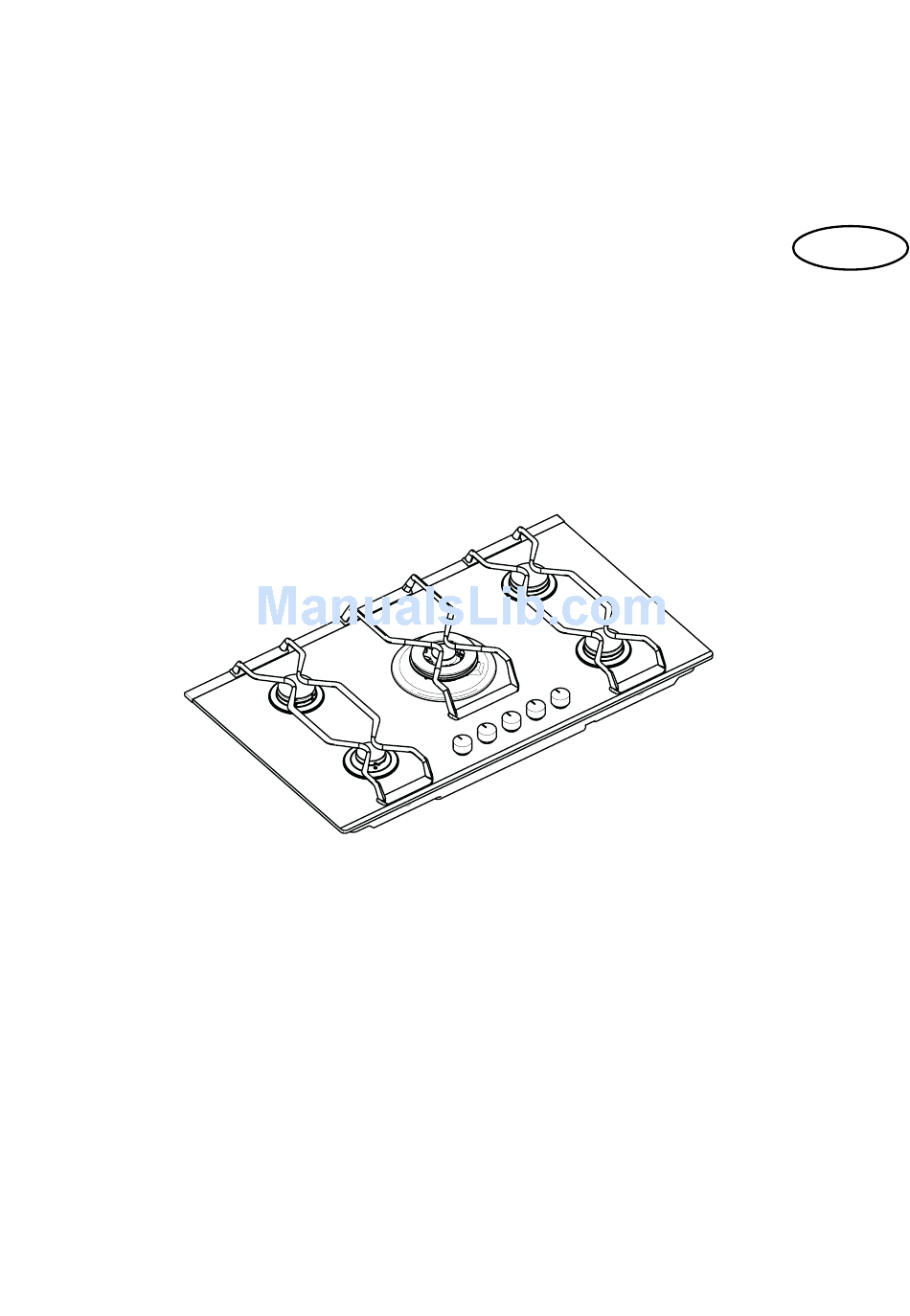

- Page 1 99852 G Gas Hob Operating Instructions PERFECT IN FORM AND FUNCTION...
-
Page 2: Important Safety Information
Important Safety Information You MUST read these warnings carefully before installing or using the hob. If you need assistance, contact our Customer Care Department on 08705 350350 Installation This hob must be installed by qualified personnel, according to the manufacturer’s instructions and to the relevant British Standards. - Page 3 Do not use this hob if it is in contact with water. Do not operate the hob with wet hands. Ensure the control knobs are in the ‘OFF’ position when not in use. When using other electrical appliances, ensure the cable does not come into contact with the hot surfaces of the cooking appliance.
-
Page 4: Table Of Contents
Contents Instructions for the User Important Safety Information Description of the Hob Operation Maintenance and Cleaning Something Not Working? Service and Spare Parts Customer Care Guarantee Conditions Instructions for the Installer Important safety requirements Installation Building In Electrical connections Wiring diagram Fault Finding Commissioning Conversion from Natural Gas to LPG... -
Page 5: Description Of The Hob
Description of the Hob Hob Top Semi-rapid Burners Auxiliary Burner Ultra-rapid Burner (triple crown) Control knobs INSTALLATION Any gas installation must be carried out by a registered CORGI installer, and in accordance with existing rules and regulations. The relevant instructions are to be found in the second section of this manual. Please, ensure that, once the hob is installed, it is easily accessible for the engineer in the event of a breakdown. -
Page 6: Operation
Operation Hob burners To light a burner: Push in the relevant control knob and turn it to maximum position. Upon ignition, keep the knob pushed down about 5 seconds. This will allow the "thermocouple" (fig. 1 - letter C) to be heated and the safety device to be switched off, otherwise the gas supply would be interrupted. -
Page 7: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning can be carried out, you must DISCONNECT the hob from the electricity supply. The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool. The Hob Top Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a little wasing... -
Page 8: Something Not Working
using hot soapy water, and remove marks with a mild paste cleaner. A well moistened soap impregnated steel wool pad can be used with caution, if the marks are particularly difficult to remove. After cleaning, be sure to wipe dry with a soft cloth. Ignition electrode The electric ignition is obtained through a ceramic "electrode"... -
Page 9: Service And Spare Parts
Service and Spare Parts If you require spare parts or an engineer contact your local Service Force Centre by telephoning: 0870 5 929 929 Your call will be routed to your local Service Force Centre. For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk When you contact the Service Centre, they will need the following information: 1. -
Page 10: Guarantee Conditions
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products. • This guarantee relates to you and cannot be transferred to another user. -
Page 11: Instructions For The Installer
Instructions for the Installer Engineers technical data Overall dimensions Width: Depth: Cut out dimensions Width: Depth: Supply Connections Gas: RC 1/2 inch (1/2 inch male) Rear right hand corner Electric: 230-240V 50Hz supply, 3 core flexible cable with non rewireable plug fitted with a 3 amp cartridge fuse. -
Page 12: Important Safety Requirements
Instructions for the Installer Important safety requirements This hob must be installed in accordance with the Gas Safety (Installation and Use) Regulations (Current Edition) and the IEE Wiring Regulations (Current Edition). Detailed recommendations are contained in the following British Standards Codes Of Practice: B.S. -
Page 13: Installation
Installation Important This hob must be installed by qualified personnel to the relevant British Standards. Any gas installation must be carried out by a CORGI registered installer. The manufacturer will not accept liability, should the above instructions or any of the other safety instructions incorporated in this book be ignored. -
Page 14: Building In
Instructions for the Installer Cut Out Size The dimensions of the cut-out are given in the diagram. FO 2349 Building In Building over a cupboard or drawer If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat resistant board below the base of the hob on the underside of the work surface. -
Page 15: Building Over A Kitchen Unit With Door
ON/OFF SWITCH FLEX OUTLET FO 0763 Building over a kitchen unit with door Proper arrangements must be taken in designing the furniture unit, in order to avoid any contact with the bottom of the hob which can be heated when it is operated. The recommended solution is shown in diagram The panel fitted under the hob ("a") should be easily removable to allow easy access... -
Page 16: Fitting The Hob To The Worktop
Instructions for the Installer Fitting the hob to the worktop Before fitting the hob into the cut out, an adhesive seal must be fitted to the underside outside edge of the hob. It is essential that no gaps are left in this seal in order to prevent spillage near the hob seeping into the cabinet below. -
Page 17: Electrical Connections
Electrical connections Any electrical work required to install this hob should be carried out by a qualified electrician or competent person, in accordance with the current regulations. THIS HOB MUST BE EARTHED. The manufacturer declines any liability should these safety measures not be observed. This hob is designed to be connected to a 230-240V 50Hz AC electrical supply. -
Page 18: Wiring Diagram
Instructions for the Installer Permanent Connection In the case of a permanent connection, it is necessary that you install a double pole switch between the hob and the electricity supply (mains), with a minimum gap of 3 mm. between the switch contacts and of a type suitable for the required load in compliance with the current electric regulations. -
Page 19: Fault Finding
Fault Finding Preliminary Electrical Systems Check START Isolate appliance and carry out: A: Earth Continuity check. Has inlet fuse blown? Inlet wiring faulty. Rectify any fault. Isolate appliance and carry out: B: Insulation check. Rectify any fault including replacing fuses as necessary. Carry out: Carry out: D: Resistance to... - Page 20 Instructions for the Installer A. EARTH CONTINUITY CHECK Appliance must be electrically disconnected - meter set on Ω (Ohms) x 1 scale and adjust zero if necessary. — Test leads from any appliance earth point to earth pin on plug. Resistance should be less than 0.1 Ω...
- Page 21 Ignition System / Gas Ignition Ignitor does not spark Check plug top fuse and replace if necessary Check polarity and earth continuity of supply point Check earth continuity of appliance Check continuity from 'N' on the mains connector block and "O" on the ignitor unit Check continuity from 'L' on the mains connector block and the...
-
Page 22: Commissioning
Instructions for the Installer Commissioning When the hob has been fully installed it will be necessary to check the minimum flame setting. To do this, follow the procedure below. 1) Turn the gas tap to the MAX position and ignite. 2) Set the gas tap to the MIN flame position then turn the control knob from MIN to MAX several times. -
Page 23: Conversion From Natural Gas To Lpg
Conversion from Natural Gas to LPG It is important to note that this model is designed for use with natural gas but can be converted for use with butane or propane gas providing the correct injectors are fitted and the gas rate is adjusted to suit. Method 1) Ensure that the gas taps are in the 'OFF' position 2) Isolate the hob from the electricity supply... - Page 24 © Electrolux plc 2003 From the Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
