AWA PDVT-118HD User Manual

4.3” lcd tv

Advertisement

4.3" LCD TV
USER'S MANUAL
CH
CH
OK
OK
VOL
VOL
VOL
VOL
CH
CH
Before connecting, operating or adjusting this product,
please read this user's manual carefully and completely.
4.3" LCD TV

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDVT-118HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AWA PDVT-118HD

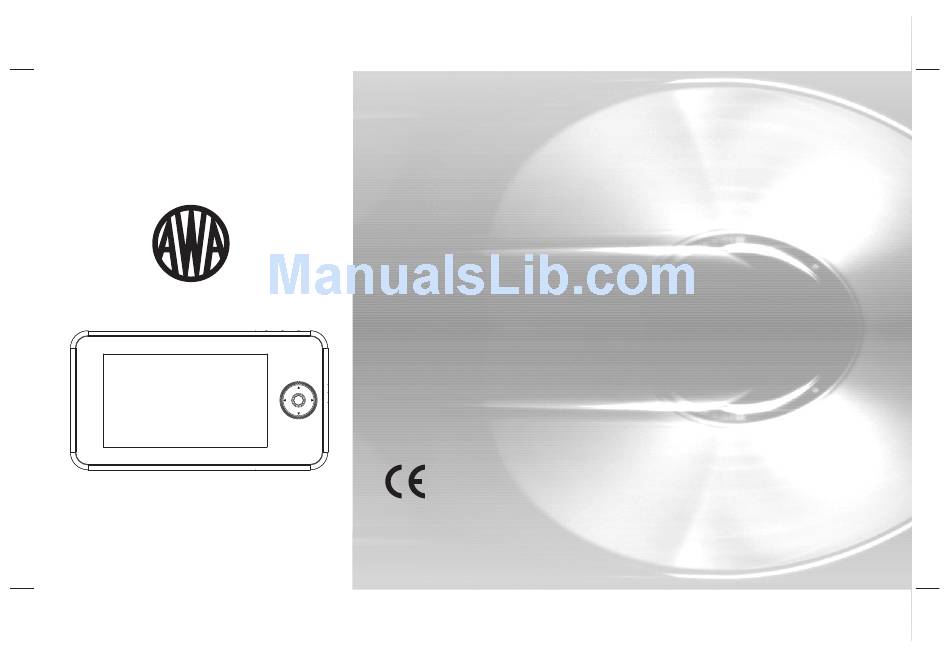

  • Page 1 4.3” LCD TV USER'S MANUAL 4.3” LCD TV Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.
  • Page 2: Safety Precautions

    Safety Precautions Before Use(Continued) Disclaimer Safety Precautions Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties Always read the safety instructions carefully (implied or otherwise) regarding the accuracy and completeness of Keep this User s Manual for future reference this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special,...
  • Page 3: Identification Of Controls

    Identification of Controls Main Unit 1.EXIT used to return to the previous screen or menu. 2.MENU Used to open the main menu window. Power on/off,Continuing press 2 seconds. 4..AV/OUT Headphone out jacks 6.USB mini USB jocks 7.DC in 5V 8.ANT Extra antenna connector 9.LED Display Full charged is green lanp,charging is red lanp.
  • Page 4: First Time Installation

    Identification of Controls First Time Installation Home Menu After all connections have been made properly, switch on TV and make Settings sure the receiver is connected to the Main Power. Press Power Button to Television switch receiver on. If you are using the receiver For the first time or restored to Factory Default, the Main Menu will appear on your TV screen.
  • Page 5 Identification of Controls OSD LANGUAGE:Select an OSD LANGUAGE Setup Installation COUNTRY:Select your country of residence. LCN:Set LCN on or off Installation TIME ZONE: a.TIME ZONE : Select Time zone of the country. b.SUMMER TIME: Select Summer timer on or off. SYSTEM INFORMATION:Show some information of the player.
  • Page 6: Troubleshooting

    Identification of Controls PVR (Personal video recorder) Troubleshooting 1.USB PVR has the following features: -Support one-channel TS recoding Problem Potential Reasons What to do -Support program playback Connect the power Power isn't connected The storage media supported : No picture -USB disk (depending on the read-write speed, 100mA) The power switch is not on Switch on the power -In order to delete recorded files on a USB stick then please...
  • Page 7: Technical Specifications

    Identification of Controls Technical Specifications Item Sub Item Parameter 170~230MHz Tuner Input Frequency 470~860MHz -25~-82dBm RF Input level IF Bandwidth 7MHz and 8MHz QPSK,16QAM,64QAM Modulation MPEG4 AVC/H.264 HP@L4 Video Decoder Format MPEG2 MP@ML.HL NTSC Output Format CVBS Output Port Decoder Format Audio MPEG-1 (layer1&2 &3...
