Summary of Contents for Haier HL19KN2

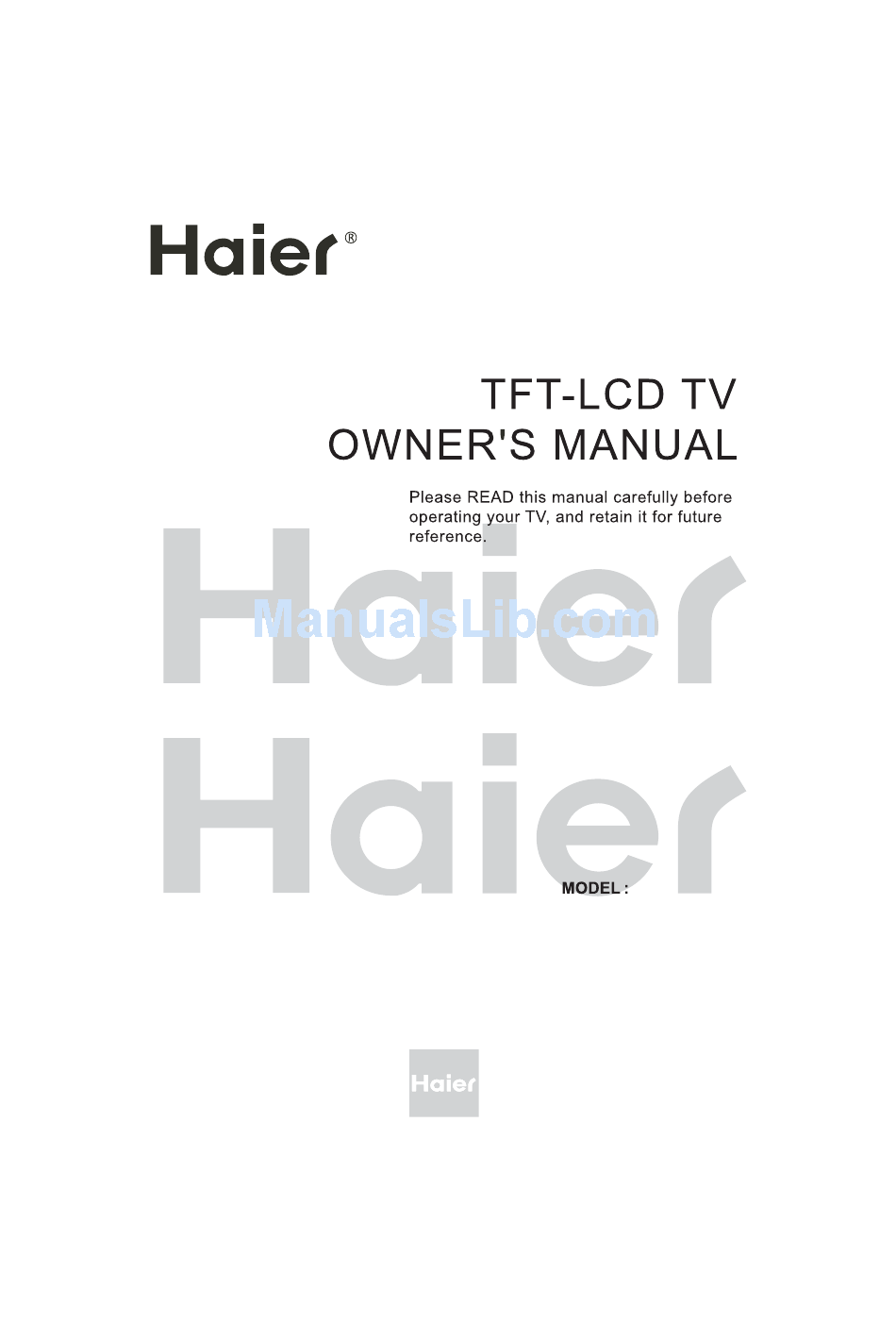

- Page 1 HL19KN2...
-
Page 2: Table Of Contents
Contents Safety and warnings..................2-3 Introduction....................4 Installation....................5-8 emote Control....................9 Operation.....................10-11 Trouble Shooting..................12 Warranty...................... 13... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. CAUTION 2) Keep these instructions. RISK OF ELECTRIC SHOCK DO NOT OPEN! 3) Heed all warnings. CAUTION 4) Follow all instructions. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO 5) Do not use this apparatus near water. NOT REMOVE COVER (OR BACK).NO USER 6) Clean only with dry cloth. -
Page 4: Safety And Warnings
SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel. -
Page 5: Introduction
INTRODUCTION Accessories Accessories Remote Control......... ’ User s Manual ......... Batteries (AAA)........ 2 Main parameter Viewing Picture Size(diagonal) 19 inch Resolution: 1366x768 Aspect Ratio: 16:9 TV System: NTSC Video Signal System: NTSC/PAL/SECAM Power consumption: Input Power Voltage: AC 100V-240V 50/60Hz Audio Output Power(THD 7%): 2x1.5W... -
Page 6: Installation
INSTALLATION Front panel Side buttons SOURCE MENU VOL+ VOL- POWER/STANDBY ． ： 1 SOURCE Display the input source menu. ． ： 2 MENU isplay the main MENU. ． 3 CH+/CH- ， “ ” “ ” In TV mode press CH+ or CH- to change the channel up and down. -
Page 7: Preset Mode
INSTALLATION STEPS: Both the TV and computer are off before making any connections. 1.Connect the VGA and the audio cable. 2.Connect the power cord. 3.Power on the TV, switch to VGA mode. 4.Power on the VGA. This sequence is very important. VGA INPUT HDMI AUDIO INPUT... - Page 8 INSTALLATION ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
- Page 9 INSTALLATION AV EQUIPMENT This TV provides one AV, and one YPbPr (component) input for convenient connection to VCR,DVD or other video equipment. Please refer to the owner s manual of the equipment to be connected as well. VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr)
-
Page 10: Remote Control
REMOTE CONTROL POWER REMOTE CONTROL TV on/off NUMBER KEY For direct access to program. For a 2 (3) digit program number, The second (third) digit must be entered before the dash disappears. POWER MUTE The number, the name (and the sound mode, in analogue mode) are displayed MTS/SAP for a few seconds. -
Page 11: Operation
OPERATION 1. PICTURE MENU 3.OSD MENU The first item of the MENU is the picture menu. The third item of the MENU is the OSD Menu. You can adjust picture settings here, such as Press to select, press to adjust. LANGUAGE: adjust the language by contrast, brightness, etc. - Page 12 OPERATION ： 5.CHANNEL MENU In PC mode, there are two special menu 1. PICTURE MENU The fifth item of the MENU is the channel menu You can adjust the PC picture, settings, such as (Only in TV mode).You can complete the channel contrast, brightness, etc scan and set TV channel settings here.
-
Page 13: Trouble Shooting
Trouble shooting Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost or connection Normal audio electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute... -
Page 14: Warranty
WARRANTY -13-... - Page 15 0090506421A...
