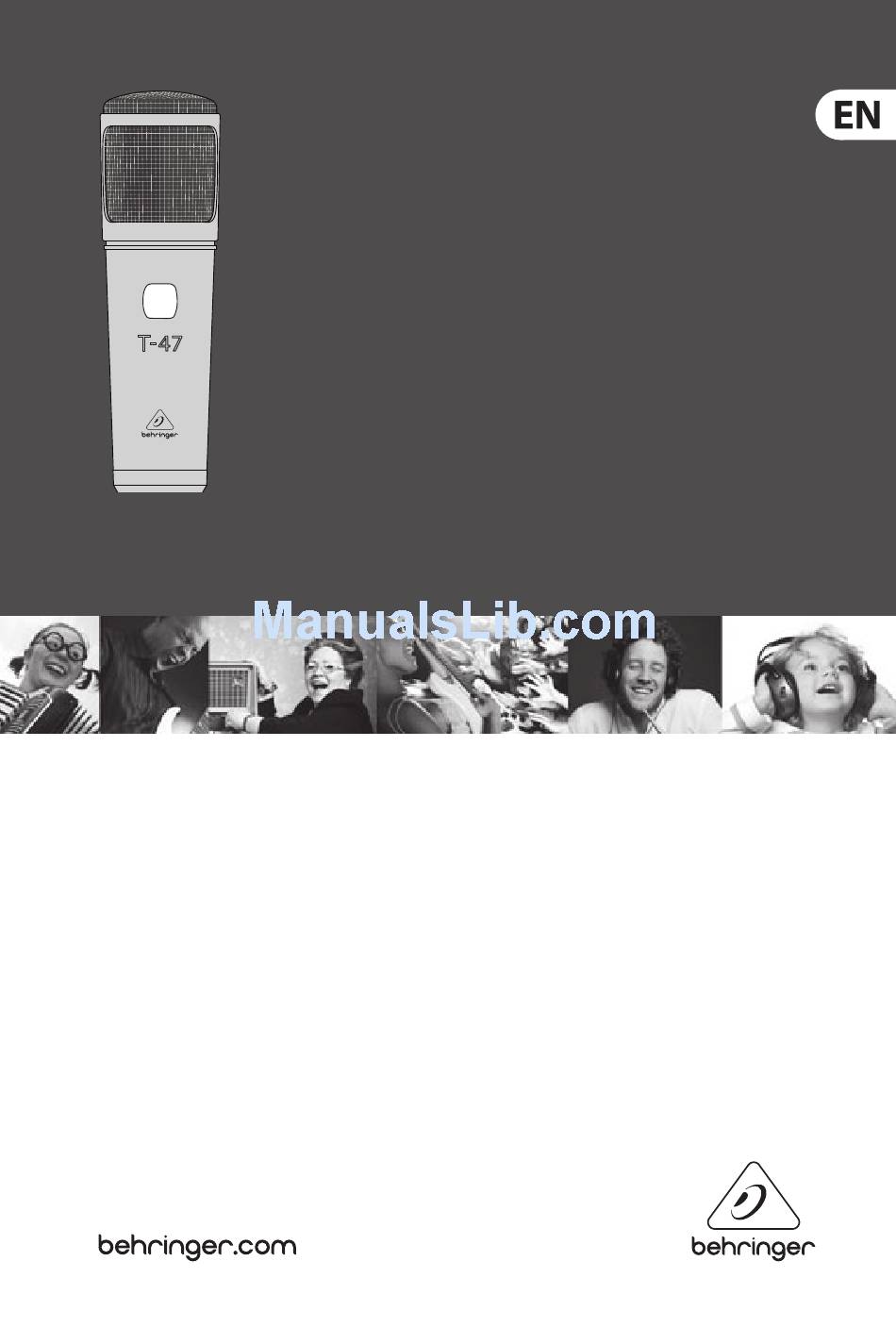

User Manual
TUBE CONDENSER
MICROPHONE T-47
Vacuum Tube Condenser Microphone

Advertisement

Table of Contents
loading

Related Manuals for Behringer T-47

Summary of Contents for Behringer T-47

  • Page 1 User Manual TUBE CONDENSER MICROPHONE T-47 Vacuum Tube Condenser Microphone...
  • Page 2 TUBE CONDENSER MICROPHONE T-47 User Manual Important Safety The T-47 is extremely sensitive to Instructions moisture. Both the microphone and the PSU-T power supply should not be used near water (for example, near a bathtub, washing machine, swimming pool,etc.). When doing voice recordings, always use the enclosed windscreen to protect the capsule from moisture.
  • Page 3 TUBE CONDENSER MICROPHONE T-47 User Manual At a Glance Mount the microphone Connect the microphoneto the PSU-T Connect the PSU-T to the mixer Connect the mains cable Switch on the PSU-T Allow the tube to warm up And you're good to go!

  • Page 4: Control Elements And Connections

    (PSU-T). Power supply The included BEHRINGER PSU-T not only provides the supply voltage for the tube preamplifier but also employs a circuit that reduces the low frequency response. This is activated on the front panel with the LOW CUT switch.

  • Page 5: Mounting The Microphone

    TUBE CONDENSER MICROPHONE T-47 User Manual Set-up Mounting the microphone The microphone comes with an elastic shockmount. The advantage to a conventional microphone stand mount is that mechanically induced noise is virtually absorbed. To mount the microphone, attach the shockmount to the microphone stand and, from above, slide the T-47 into the shockmount.
  • Page 6 It is often used in recording situations, since this directivity pattern tones down the pickup of sounds located to the back of the microphone. To place the microphone correctly, the BEHRINGER logo needs to face the sound source being recorded.

  • Page 7: Audio Connection

    TUBE CONDENSER MICROPHONE T-47 User Manual Audio connection To transmit a preamplified signal (OUTPUT connector on the PSU-T), use a balanced microphone cable with the following pin assignment: pin 1 = shielding; pin 2 = +; pin 3 = -. Since your PSU-T features gold-plated contact points, we recommend that you use only microphone cables with gold-plated connectors.

  • Page 8: Specifications

    TUBE CONDENSER MICROPHONE T-47 User Manual Specifications Transducer type condenser, 16 mm (0.63'') Polar pattern cardioid Preamplifier vacuum tube (12AX7) Output (PSU-T) gold-plated balanced XLR connector Open circuit sensitivity -40 dBV (0 dBV = 1 V/Pa) Frequency response 20 Hz to 20 kHz...
