GA-G41MT-S2PT
User's Manual
Rev. 1101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-G41MT-S2PT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte GA-G41MT-S2PT

Summary of Contents for Gigabyte GA-G41MT-S2PT

  • Page 1 GA-G41MT-S2PT User's Manual Rev. 1101...

  • Page 3: Identifying Motherboard Revision

    The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE with- out prior notice.

  • Page 4: Table Of Contents

    Table of Contents GA-G41MT-S2PT Motherboard Layout ................5 GA-G41MT-S2PT Motherboard Block Diagram ..............6 Chapter 1 Hardware Installation ..................7 Installation Precautions ................... 7 Product Specifications ..................8 Installing the CPU ..................10 Installing the Memory ..................11 Installing an Expansion Card ................11 Back Panel Connectors ................. 12 Internal Connectors ..................

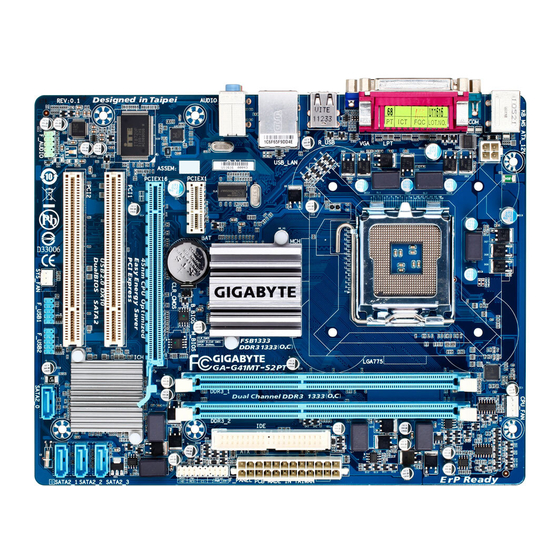

  • Page 5: Ga-G41Mt-S2Pt Motherboard Layout

    GA-G41MT-S2PT Motherboard Layout CPU_FAN KB_MS ATX_12V LGA775 R_USB USB_LAN Intel ® AUDIO PCIEX1 Realtek B_BIOS RTL8111E M_BIOS CLR_CMOS F_PANEL PCIEX16 IT8720/ PCI1 IT8718 Intel ® ICH7 SATA2_3 CODEC PCI2 SATA2_2 SATA2_0 SATA2_1 SYS_FAN F_AUDIO F_USB1 F_USB2 Box Contents GA-G41MT-S2PT motherboard Motherboard driver disk Two SATA cables User's Manual...

  • Page 6: Ga-G41Mt-S2Pt Motherboard Block Diagram

    GA-G41MT-S2PT Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- LGA775 (333/266/200 MHz) PCIe CLK (100 MHz) Host Interface DDR3 1333(O.C)/1066/800 MHz D-Sub Dual Channel Memory Intel ® GMCH CLK PCI Express x16 (333/266/200 MHz) 1 PCI Express x1 RJ45 Dual BIOS Realtek PCIe CLK...

  • Page 7: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 8: Product Specifications

    4 GB. Dual channel memory architecture Š Support for DDR3 1333 (O.C.)/1066/800 MHz memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard North Bridge: Š...
  • Page 9 Support for Microsoft Windows 7/Vista/XP Š ® System Form Factor Micro ATX Form Factor; 24.4cm x 19.4cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. - 9 -...

  • Page 10: Installing The Cpu

    Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. • (Go to GIGABYTE's website for the latest CPU support list.) Always turn off the computer and unplug the power cord from the power outlet before installing •...

  • Page 11: Installing The Memory

    Make sure that the motherboard supports the memory. It is recommended that memory of the • same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Always turn off the computer and unplug the power cord from the power outlet before installing •...

  • Page 12: Back Panel Connectors

    Back Panel Connectors PS/2 Keyboard and PS/2 Mouse Port Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard. Parallel Port Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also called a printer port.

  • Page 13: Internal Connectors

    Internal Connectors ATX_12V F_PANEL CPU_FAN F_AUDIO SYS_FAN F_USB1/F_USB2 CLR_CMOS SATA2_0/1/2/3 Read the following guidelines before connecting external devices: First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the •...
  • Page 14 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the com- ponents on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 15 3/4) CPU_FAN/SYS_FAN (Fan Headers) The motherboard has a 4-pin CPU fan header (CPU_FAN) and a 3-pin system fan header (SYS_FAN). Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The motherboard supports CPU fan speed control, which requires the use of a CPU fan with fan speed control design.
  • Page 16 PORT DEBUG PORT DEBUG PORT 6) SATA2_0/1/2/3 (SATA 3Gb/s Connectors) The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. SATA2_3 Pin No. Definition SATA2_2 SATA2_1 SATA2_0 Please connect the L-shaped end of the SATA cable to your SATA hard drive.
  • Page 17 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. SPEAK- PWR- Power LED...

  • Page 18: Front Panel Audio Header

    9) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module con- nector match the pin assignments of the motherboard header.
  • Page 19 11) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the CMOS values (e.g. date information and BIOS configurations) and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

  • Page 20: Chapter 2 Bios Setup

    To see more advanced BIOS Setup menu options, you can press <Ctrl> + <F1> in the main menu of the BIOS Setup program. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating •...

  • Page 21: Mb Intelligent Tweaker(M.i.t.)

    If you do not find the settings you want in the Main Menu or a submenu, press <Ctrl>+<F1> to • access more advanced options. When the system is not stable as usual, select the Load Optimized Defaults item to set your •...
  • Page 22 CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Item Help  Advanced Timing Control [Press Enter] Menu Level  ******** Mother Board Voltage Control ******** Voltage Types Normal Current ----------------------------------------------------------------------------- >>> CPU CPU Vcore 1.30000V [Auto] CPU Termination 1.200V [Auto] >>>...
  • Page 23 Memory Frequency (Mhz) The first memory frequency value is the normal operating frequency of the memory being used; the second is the memory frequency that is automatically adjusted according to the System Memory Multi- plier settings. DRAM Timing Selectable (SPD) Manual allows all DRAM timing control items below to be configurable.
  • Page 24 >>>>> Channel A/B Channel A/B Timing Settings CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Channel A/B Timing Settings Item Help x Static tRead Value Auto Menu Level  x tRD Phase0 Adjustment Auto x tRD Phase1 Adjustment Auto x tRD Phase2 Adjustment Auto x tRD Phase3 Adjustment Auto...
  • Page 25 DDR Write Training Allows you to determine whether to fine-tune memory parameters to enhance memory compatibility. Auto Lets the BIOS decide whether to enable this function. (Default) Disabled Disables this function. Enabled Enables this function to enhance memory compatibility. Channel A/B Driving Settings CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Channel A/B Driving Settings Item Help...

  • Page 26: Standard Cmos Features

    ******** Mother Board Voltage Control ******** >>> CPU CPU Vcore The default is Auto. CPU Termination The default is Auto. >>> DRAM DRAM Voltage The default is Auto. Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Standard CMOS Features Item Help Date (mm:dd:yy) Thu,...

  • Page 27: Advanced Bios Features

    Halt On Allows you to determine whether the system will stop for an error during the POST. Options are: "All Errors," "No Errors," "All, But Keyboard," (Default) "All, But Diskette," "All, But Disk/Key". Memory These fields are read-only and are determined by the BIOS POST. Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Advanced BIOS Features...
  • Page 28 Setup A password is only required for entering the BIOS Setup program. (Default) System A password is required for booting the system and for entering the BIOS Setup program. HDD S.M.A.R.T. Capability Enables or disables the S.M.A.R.T. (Self Monitoring and Reporting Technology) capability of your hard drive.

  • Page 29: Advanced Chipset Features

    Backup BIOS Image to HDD Allows the system to copy the BIOS image file to the hard drive. If the system BIOS is corrupted, it will be recovered from this image file. (Default: Disabled) Advanced Chipset Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Advanced Chipset Features Item Help ** VGA Setting **...

  • Page 30: Integrated Peripherals

    Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Integrated Peripherals Item Help Azalia Codec [Auto] Menu Level  Onboard H/W LAN [Enabled]  SMART LAN [Press Enter] Onboard LAN Boot ROM [Disabled] Onboard Serial Port 1 [3F8/IRQ4] Onboard Parallel Port [378/IRQ7] Parallel Port Mode [SPP]...

  • Page 31: Power Management Setup

    USB 2.0 Controller Enables or disables the integrated USB 2.0 controller. (Default: Enabled) USB Keyboard Function Allows USB keyboard to be used in MS-DOS. (Default: Disabled) USB Mouse Function Allows USB mouse to be used in MS-DOS. (Default: Disabled) USB Storage Function Determines whether to detect USB storage devices, including USB flash drives and USB hard drives during the POST.
  • Page 32 Power On by Ring Allows the system to be awakened from an ACPI sleep state by a wake-up signal from a modem that supports wake-up function. (Default: Enabled) Resume by Alarm Determines whether to power on the system at a desired time. (Default: Disabled) If enabled, set the date and time as following: Date (of Month) Alarm: Turn on the system at a specific time on each day or on a specific day in a month.

  • Page 33: Pnp/Pci Configurations

    2-9 PnP/PCI Configurations CMOS Setup Utility-Copyright (C) 1984-2011 Award Software PnP/PCI Configurations Item Help PCI1 IRQ Assignment [Auto] Menu Level  PCI2 IRQ Assignment [Auto] : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults PCI1/2 IRQ Assignment Auto...

  • Page 34: Load Fail-Safe Defaults

    CPU Warning Temperature Sets the warning threshold for CPU temperature. When CPU temperature exceeds the threshold, BIOS will emit warning sound. Options are: Disabled (default), 60 C/140 F, 70 C/158 F, 80 C/176 C/194 CPU/SYSTEM FAN Fail Warning Allows the system to emit warning sound if the CPU/system fan is not connected or fails. Check the fan condition or fan connection when this occurs.

  • Page 35: Set Supervisor/User Password

    2-13 Set Supervisor/User Password CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) PC Health Status   Standard CMOS Features Load Fail-Safe Defaults  Advanced BIOS Features Load Optimized Defaults  Advanced Chipset Features Set Supervisor Password  Integrated Peripherals Set User Password ...

  • Page 36: Exit Without Saving

    2-15 Exit Without Saving CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) PC Health Status   Standard CMOS Features Load Fail-Safe Defaults  Advanced BIOS Features Load Optimized Defaults  Quit Without Saving (Y/N)? N Advanced Chipset Features Set Supervisor Password ...

  • Page 37: Regulatory Statements

    Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 38 - 38 -...
  • Page 39 - 39 -...
  • Page 40 WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. • GIGABYTE Global Service System To submit a technical or non-technical (Sales/Market- ing) question, please link to: http://ggts.gigabyte.com.tw...
