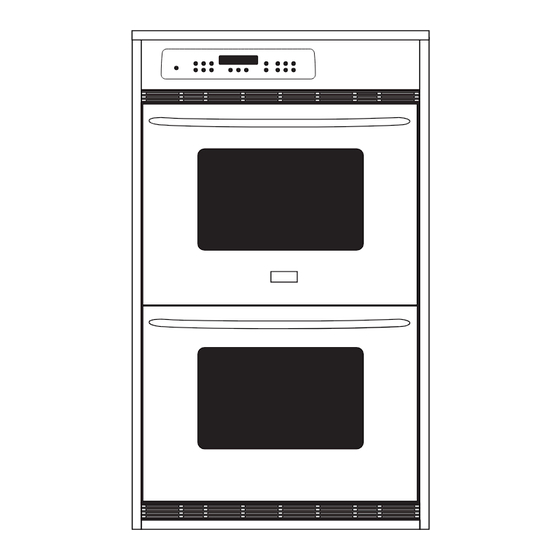

Electrolux PLEB30T8C Factory Parts Catalog

Electric wall oven
Hide thumbs


Advertisement

Quick Links

PRODUCT NO.
BASE MODEL NO.
PLEB30T8CCB
PLEB30T8C
WIRING DIAGRAM - # 318046110
OWNER'S GUIDE - # 318200919
TIMER INSTRUCTION SHEET - # 318200130
INSTALLATION INSTRUCTIONS - # 318201509
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
FACTORY PARTS CATALOG
FACTORY NO.
COLOR
37057393H30S2
stainless
Publication No.
5995386132
030219
-EN/SERVICE /ECL
377
RANGE
MARKET
North America
ELECTRIC
WALL OVEN
Model No.
PLEB30T8C
©2003 Electrolux Home Products, Inc.
All rights reserved
