T E C H N I C A L S P E C I F I C A T I O N S
INPUTS (6)
CD, Tuner, Aux 1, Aux 2/Phono, Tape, SSP
Tape, Power Amplifier, 1/4" Stereo Headphone Jack
OUTPUTS (4)
Input Select, Balance, Volume
CONTROLS (3)
SSP, Tape/EPL (External Processor Loop), Mono/Stereo, Mute/Operate,
SWITCHES (5)
Power On/Off
2 Hz to 130 kHz -0.5 dB; > 250 kHz -3.0 dB at 1VRMS output
FREQUENCY RESPONSE
< 0.1% from 20 Hz to 20 kHz
THD & N (Output at 1V RMS)
Selectable, 24, 16 & 8dB @ 1kHz
GAIN
40k ohms
INPUT IMPEDANCE
<135 ohms @ 1kHz, all gain settings.
OUTPUT IMPEDANCE
RATED OUTPUT
1 VRMS
30 VRMS at 1% THD
MAXIMUM OUTPUT VOLTA G E
NOISE
< 80µV unweighted wideband noise. Approx. 60µV IHF A-weighted noise
-92 dB A-weighted below a 1 VRMS output
> -60dB @ 1kHz relative to 1VRMS output
STEREO SEPARATION
(Crosstalk)
4 - 6922 (6DJ8 types)
TUBE COMPLEMENT
.8 A slow-blo, 5mm x 20mm (100-120VAC countries),
FUSE REQUIREMENTS (1)
.4A slow-blo (220-240VAC countries)
60VA Maximum, 100-120VAC 60Hz (Export 220-240VAC 50/60Hz)
POWER REQUIREMENTS
19" Wide x 11" Deep x 5.25" High (48 cm x 28 cm x 13 cm)
DIMENSIONS
We at Sonic Frontiers hope you will derive many years
of listening pleasure with your new Anthem Pre 2L. This
Operating Manual contains important information regarding
the operation and care of the Pre 2L. Be sure to read this
manual carefully and follow these instructions in order to
keep it performing and sounding its best. Please contact
Sonic Frontiers if you have any questions, a Customer
Service Representative will be pleased to assist you.
W H A T ' S
I N
T H E B O X ?
In addition to the Pre 2L, its covers, and the opera
manual you are presently reading (with associated in
and warranty card), there are a few more items to ta
inventory of before steps are taken to make the Anth
Pre 2L operational.

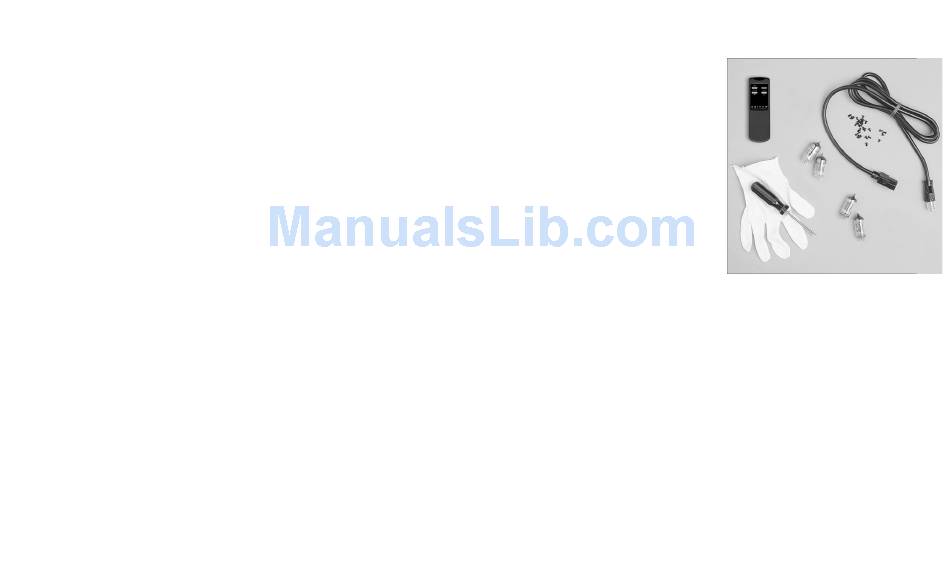

These items are:
• two matched pairs of 6922 tubes (or equivalen
totaling 4*
• remote handset
• a glove for handling the tubes
• a detachable AC power cord
• 18 screws
• 1 Philips #1 screwdriver
After completing an inventory of these items, procee
the next steps.
*These tubes are carefully measured and matched in
pairs. Take extra care to keep the pairs from being m
and mismatched which would degrade performance.
