- Page 1 CABINET PARTS REFRIGERATOR For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) 05−08 Printed In U.S.A. (jdc)(bay) Part No. W10204059 Rev. B...
-
Page 2: Cabinet Parts

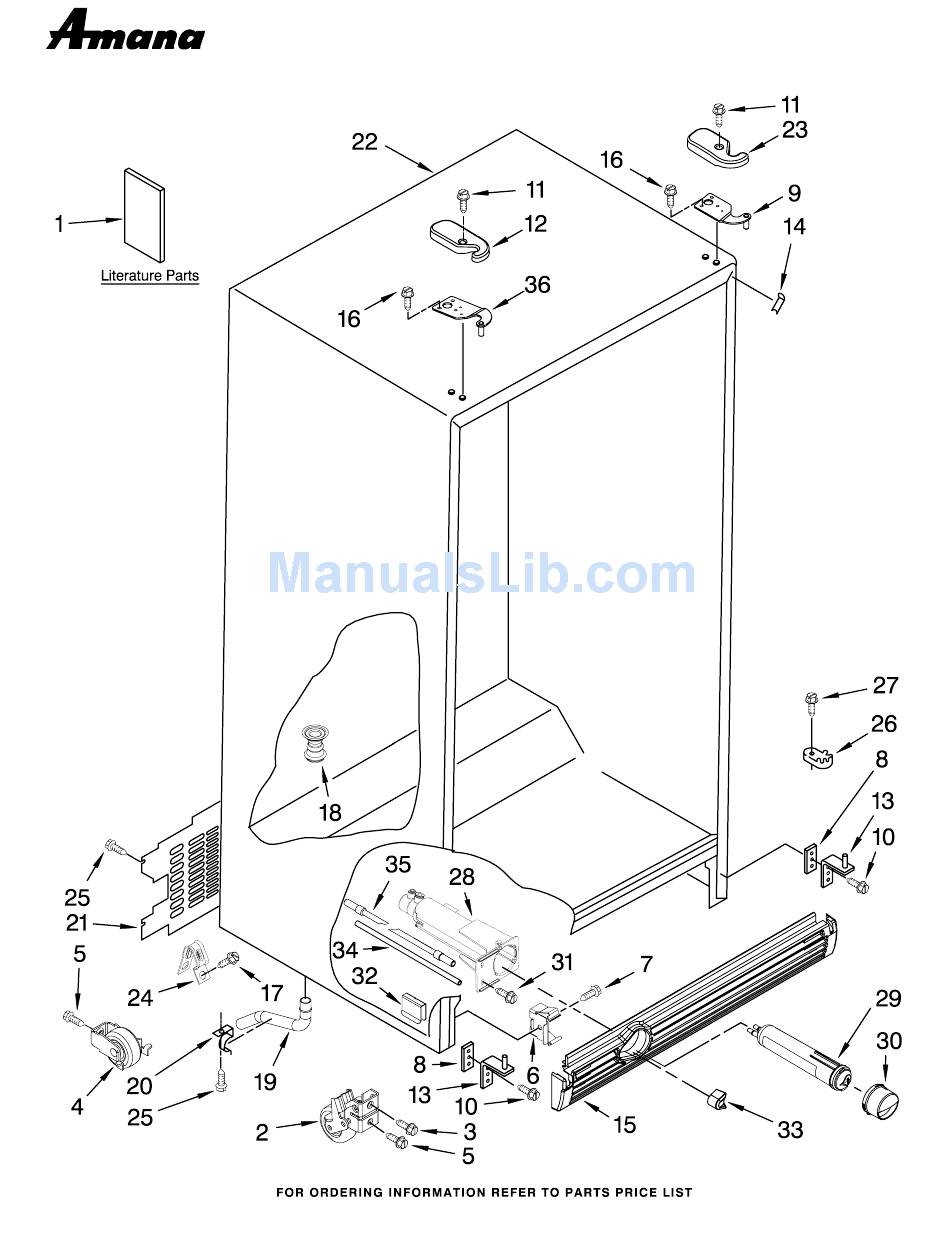

CABINET PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Hinge Bottom Door Closer W10194140 Energy Guide W10138965 RC 2155311 RC W10162456 Owner’s Manual 2303141 FC 2223751 FC W10180856 Service &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 W10175967 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2257741 Louver 2256035 Bracket, Dual Crisper Light 2311637 Wire Harness, Dual Crisper 2319866 Shelf Ladder 489478 Screw... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2196485 Stud Assembly 2188655 Snack Bin 2209698 Cover, Crisper 3400894 Screw 2196483 Stud Assembly 2179259 Glass, Meat Cover 7 W10141752 Glass, Cover 2311726 Cover, Meat Pan 8281158 Screw 2188652 Crisper Pan 2179343 Body, Humidity... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) W10204059... - Page 6 FREEZER LINER PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2171714K Shelf, Slide Out Upper Track, Basket−Dual 2261449 Right 2261448 Left 2174268K Shelf, Slide Out 2182971 Freezer Bin 3400893 Screw Shelf Track 2301289 Right Side 2301290 Left Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) W10204059... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2254587 Bracket, Motor 2 W10181208 Motor, Dispenser 2152713 Solenoid Assy 2149100 Guide, Solenoid 1115374 Clip, Wiring 2206501 Wire Assy, Disp 489399 Screw 8 W10140958 Coupling, Mtr 489478 Screw 2162085 Socket, Light 2196091 Container, Ice...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) W10204059... - Page 10 REFRIGERATOR DOOR PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes Item #6) W10173407 White W10173409 Black 2318542S Stainless Steel 2256101 Compartment Door 2304235K Shelf Bin (3) 3400012 Screw 2326016 Screw, Mounting Door Gasket, Magnetic 2221313 Black 2156022 Shelf Bin...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) W10204059... - Page 12 FREEZER DOOR PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) W10169442 White W10169443 Black W10169444 Stainless Steel Handle, Assy W10179171 White W10179169 Black W10136870 Stainless 2326016 Screw, Mounting 4 W10167528 Dispenser Harness 2154473 Connector Door Gasket,...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) W10204059... - Page 14 DISPENSER FRONT PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow 2206670W White 2206670B Black 2304317 Water Fitting...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer Fan Motor 2182146 Duct, I/M 2203593 Air Duct Freezer 2321799 Bi−Metal, Defrost 2315549 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator Cover (2) 2176759 Fan Grommet (2) 11 W10129815 Harness, Fan... -
Page 16: Control Parts
CONTROL PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2181738 Control Box 2161306 Pivot Arm 2161308 Connecting Rod 489214 Screw (2) 627068 Screw 489391 Fastner, Push−On 2149705 Switch, Light 2162085 Light Socket 22 W10176424 Escutcheon, 489398 Screw (2) -
Page 17: Unit Parts
UNIT PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) W10204059... - Page 18 UNIT PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Drier 2169104 Insulation, Sound W10177049 Production 12825802 Fan, Blade Following Parts Not Illustrated 2317845 Service 3 W10121484 Condenser Assembly and Optional Parts Not Included 25 W10120459 Compressor 489464 Screw (Includes Items...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) W10204059... - Page 20 ICEMAKER PARTS For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 489084 Screw 2209774 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315534 Filter Valve Asm 2208136 Clip, Tube 2174155 Cover 488649 Screw 9 W10122527 Mold & Heater Assembly (Also Order 542638 Silicone Grease)
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) PAINT, BULK (1 qt.) TORX SCREW WRENCH 350942 Primer, White 1117510 Torx Key 350939 Black 799340 Black 350930 White 799344 White...
