For Models: ADB1500AWB10, ADB1500AWW10, ADB1500AWQ10, ADB1500AWS10, ADB1500AWZ10
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10158012 Instructions,
Installation
99003434 Energy Guide
99003365 Guide, Use & Care
2
Bracket, Hinge
99002929 Left
99002930 Right
3
99001075 Screw
4
Y99002587 Pad, Foam
3−08 Litho In U.S.A. (ebk)

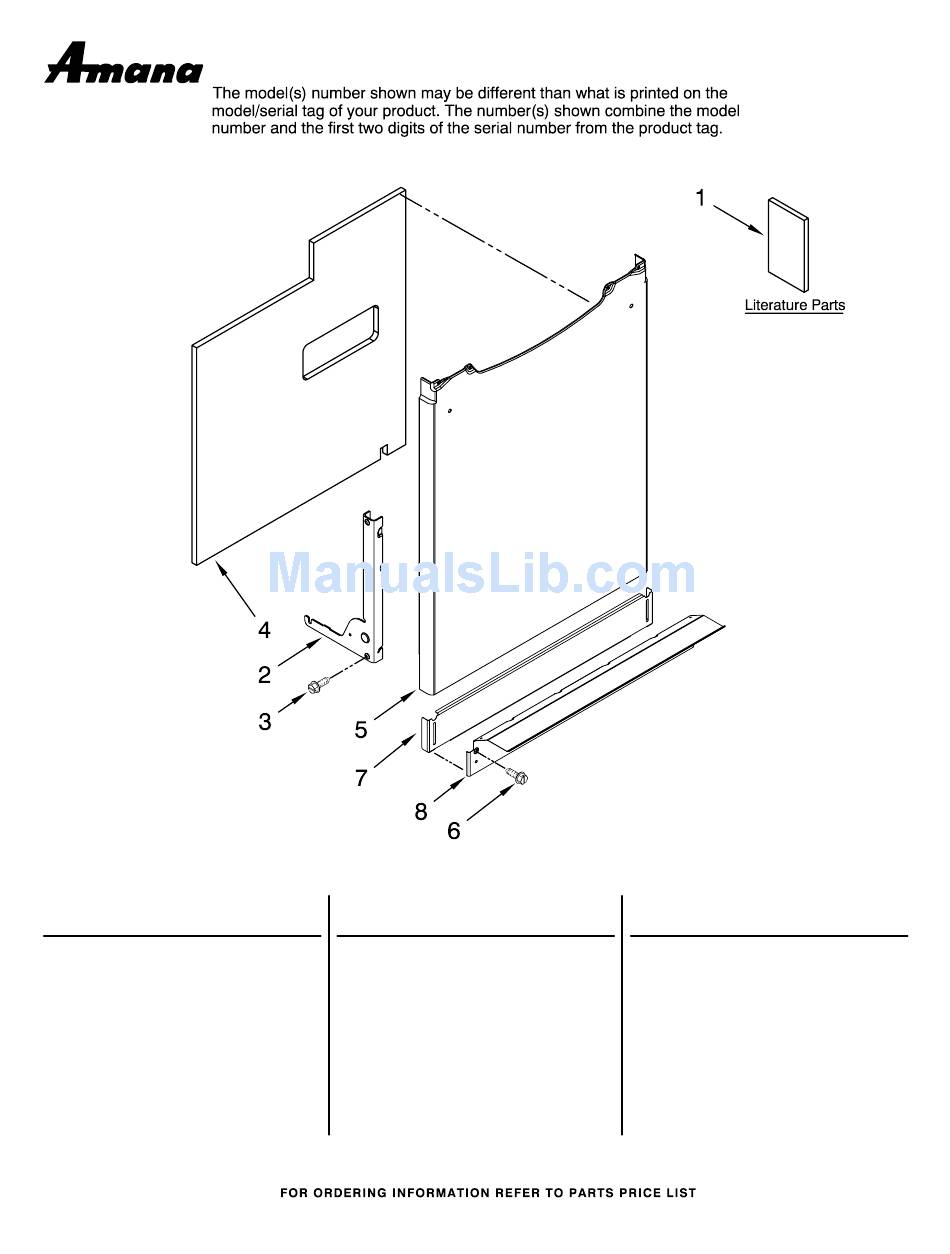

DOOR AND PANEL PARTS
(Black)
(White)
Illus.
Part
No.
No.
5
99002768 Black
99002770 White
99002769 Bisque
99002771 Stainless
99003425 Oiled Bronze
6
912366 Black
99001194 White
99002114 Bisque
(Bisque)
(Stainless)
Illus.
DESCRIPTION
No.
Panel, Front
Screw
1
(Oiled Bronze)
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
7
Panel, Toe
99002765 Black
99002766 White
99002767 Bisque
8
Support, Front
99002859 Black
99002860 White
99002861 Bisque
Part No. W10178035 Rev. B
