For Models: ADB1500AWB1, ADB1500AWW1, ADB1500AWQ1, ADB1500AWS1
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10158012 Instructions,
Installation
W10208025 Energy Guide
W10157793 Guide, Use & Care
2
Bracket, Hinge
W10202226 Left
W10202227 Right
3
99001075 Screw
4
Y99002587 Pad, Foam
10−09 Litho In U.S.A. (cre) (psw)

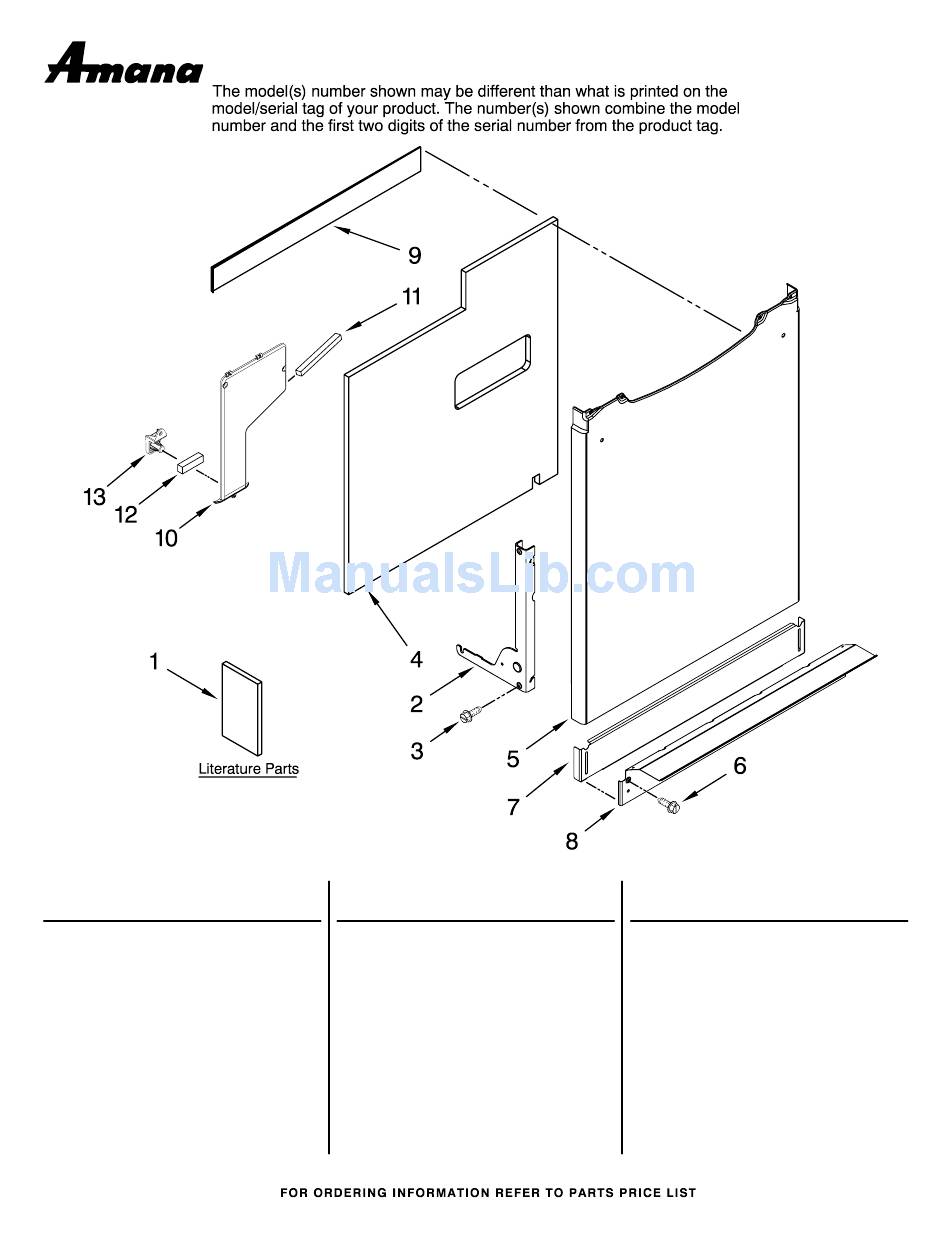

DOOR AND PANEL PARTS
(Black)
(White)
Illus.
Part
No.
No.
DESCRIPTION
5
Panel, Front
99002768 Black
99002770 White
99002769 Bisque
99002771 Stainless
6
Screw
912366 Black
99001194 White
99002114 Bisque
7
Panel, Toe
99002765 Black
99002766 White
99002767 Bisque
(Bisque)
Illus.
No.
8
9 W10117748 Insulation, Door
10 W10185633 Liner, Door
11
12
13
1
UNDERCOUNTER
DISHWASHER
(Stainless)
Part
No.
DESCRIPTION
Support, Front
99002591 Black
99002593 White
99002592 Bisque
Secondary
99003481 Foam Strip (Short)
99003482 Foam Strip (Long)
99003541 Bracket, Secondary
Door Liner
Part No. W10260589 Rev. A
