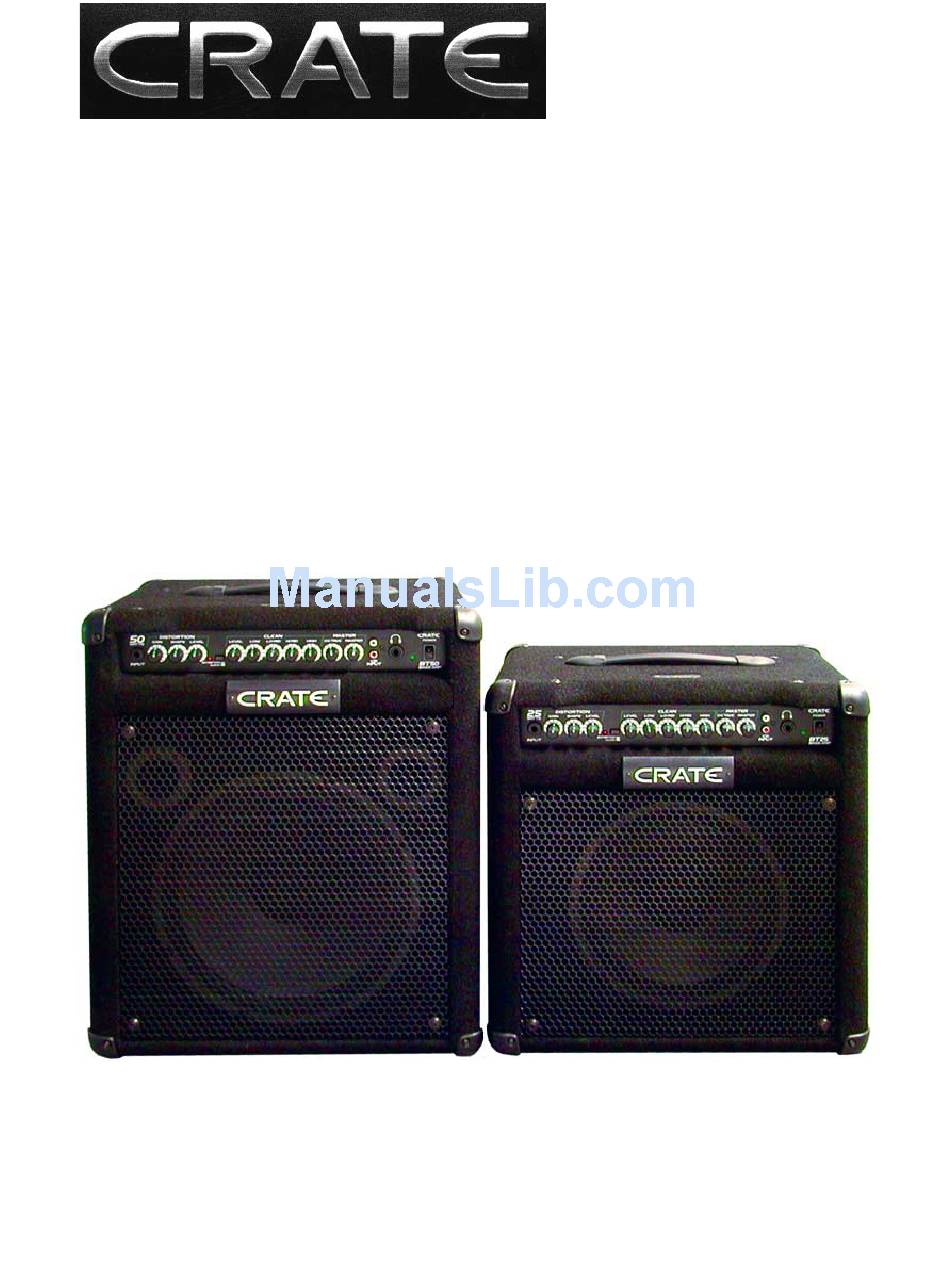

- Page 1 BT25/BT50 BASS AMPLIFIER USER’S GUIDE...
- Page 2 BT25/BT50 Bass Amplifier Table Of Contents: Introduction ....... . .3 The Front Panel .
- Page 3 BT25/BT50 Bass Amplifier Congratulations! You are now the proud owner of the compact but powerful Crate BT25/BT50 Bass Amplifier. The BT25/BT50 features two different chan- nels: a distortion channel, featuring Crate’s exclusive Shape control for quick and easy access to the tone you need, and a clean channel with a four-band rotary EQ.
-
Page 4: The Front Panel
BT25/BT50 Bass Amplifier The Front Panel: 1. INPUT: Use this 1/4” jack to connect your bass to the amplifier by means of a shielded instrument cable. 2. GAIN: Use this control to adjust the amount of distortion for the Distortion channel. As you rotate the control clockwise the amount of distortion increases. - Page 5 Do not attempt to defeat the safety ground connection. 18. FOOTSWITCH: Connect a two-button footswitch (such as the Crate CFP-2) here for remote control of the channel selection/“blend” (see #5) and octave on/off. (When the Channel Switch [#5] is depressed, the footswitch switches between the Clean channel and the Distortion channel;...
- Page 6 BT25/BT50 Bass Amplifier Suggested Starting Settings: Rock: Jazz: Country: Funk: Solo Fuzz: Super Fat Fuzz:...
-
Page 7: System Block Diagram
BT25/BT50 Bass Amplifier System Block Diagram: OCTAVE LEVEL TUNER FOOT SWITCH A BC D EF G BUFFER INPUT CHANNEL LEVEL HIGH HIGH SWITCH NOISE GATE SHAPE DISTORTION LEVEL GAIN POWER EXTERNAL SPEAKER MASTER SPEAKER ATTENUATOR INPUT HEAD PHONES... - Page 8 120 VAC, 60Hz, 85VA 100/115VAC, 50/60Hz, 45VA 100/115VAC, 50/60Hz, 85VA 230VAC, 50/60Hz, 45VA 230VAC, 50/60Hz, 85VA Internal Speaker Size 10” 12” Type Crate Custom Crate Custom Magnet 30 oz. 30 oz. Voice Coil 1” 1.5” RMS Rating 30 watts 50 watts...
