ClearSounds QLINK Operating Manual

Operating Manual
ClearSounds® QLINK
Bluetooth Stereo Transmitter
TABLE OF CONTENTS
PRIOR TO USE
Pg. Important Safety Instructions
Pg. Location of Controls
INTRODUCTION & SET UP
Pg. Parts checklist
Pg. Charging
Pg.Pairing to the ClearSounds® QUATTRO
Pg. Attaching to a Television
Pg.Attaching to MP3 or other Sound Output Device
RE-CONNECTING
Pg.Out of Range
Pg.Device Powered Off
OTHER FUNCTIONS
Pg.Power On and Off
Pg. Resetting
Pg.Power Saving Mode
Pg.Dual Connection
Troubleshooting
Technical Specifications
WARRANTY POLICY
PRIOR TO USE
Congratulations on your purchase of the QLINK Bluetooth
Transmitter from ClearSounds Communications®. Please read
this User Manual carefully in order to get the best use out of
your new accessory. Keep this manual safe for easy reference.
Please visit our website at www.clearsounds.com to register
your product, download additional manuals and review trouble-
shooting tips.
Be sure to save your sales receipt as your proof of purchase
should you need warranty service. The serial number for this
product is located on the backside of the unit.
Warranty Service – This product is designed to provide years
of quality service. However, if there is a malfunction and the
troubleshooting recommendations on page do not resolve the
problem, follow the warranty procedure on page. It is very
important to read the following section on handling the
connecting cable.
█

IMPORTANT SAFETY INSTRUCTIONS

This product is a mobile solution built on Bluetooth technology.
Please read and understand the Installation Guide and User
Manual before using your QLINK Transmitter.
QLINK Connecting Cable
The short cable from the QLINK to the 3.5mm stereo plug is
reinforced inside the QLINK but it is not indestructible. Always
unplug the 3.5mm plug by grasping the plug. DO NOT pull the
plug out by grasping the wire or the QLINK. You will put
excessive strain on the wire and can damage the wire and
internal connections and void your warranty.
Electromagnetic Interference/Compatibility: Nearly every
electronic device is susceptible to electromagnetic
interference (EMI) if inadequately shielded, designed, or
otherwise configured for electromagnetic compatibility.
Facilities: To avoid electromagnetic interference and/or
compatibility conflicts, turn off your QLINK in any facility where
posted notices instruct you to do so. Hospitals or health care
facilities may be using equipment that is sensitive to external
RF energy.
Aircraft: When instructed to do so, turn off your device when
on board an aircraft. Any use of a device must be in accordance
with applicable regulations per airline crew instructions.
WARNING: Use only the power supply indicated in the User's
Manual.
WARNING: To avoid the possibility of electrical shock, do not
use this product near water (For example, near a bathtub, wash
basin, kitchen sink or laundry tub, in a wet basement or near a
swimming pool) while in the bathtub or shower or when you are
wet.
WARNING: Avoid using the unit during electrical storms. There
may be a remote risk of electric shock from lightning. If the
electrical storm is present in your immediate area, possibility of
electrical shock exists.
WARNING: Occasionally a power surge can occur on electrical
lines without warning. With any electrical device that you plug
into an outlet, it is suggested you use a surge protector. A
surge protector will prevent power surges from damaging your
phone. Surge protectors are simple devices available at your
local hardware store.
The QLINK Bluetooth Transmitter has been designed to give
you years of dependable service. To ensure the utmost in
performance, follow these guidelines in caring for your
QLINK:
1.Avoid dropping or knocking the unit.
2.Always unplug the QLINK by grasping the 3.5mm plug.
Never unplug the QLINK by grasping and pulling on the
QLINK or the connecting wire.
3.Your QLINK comes with a built-in battery that never needs
to be replaced. Do not open the unit or attempt to remove or
replace the battery as this will damage the unit and void
your warranty.
4.Do not clean with harsh chemicals, cleaning solvents or
abrasive detergents. To clean, wipe with a soft cloth slightly
dampened in a mild soap-and-water solution.
IMPORTANT: YOUR RECEIPT IS PART OF YOUR WARRANTY AND
MUST BE RETAINED AND PRODUCED IN THE EVENT OF A
WARRANTY CLAIM.
PLEASE SAVE THESE INSTRUCTIONS
█

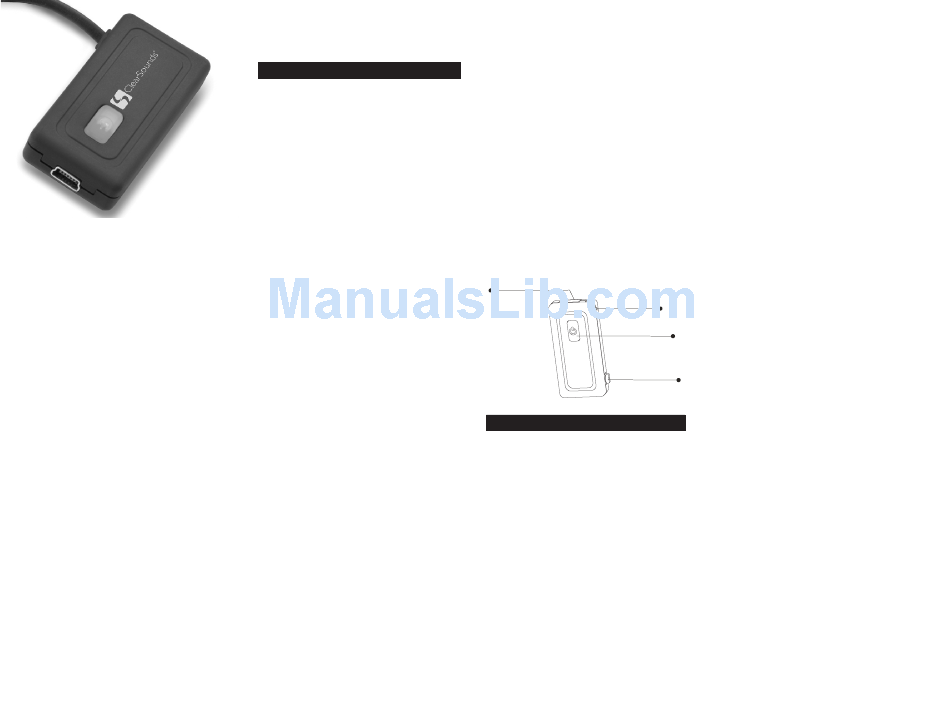

LOCATION OF CONTROLS

USB Connector for AC Adapter
Restoration Key
On/Off Button & Multi
Function Button (MFB)
Stereo Audio Input Outlet
(3.5mm)
INTRODUCTION & SET UP
Bluetooth is a specification for short-range radio links
between mobile computers, mobile phones, digital cameras
and other portable devices. The radio operates on the
globally available 2.45 GHz ISM 'free band', allowing users to
use "Bluetooth" equipment worldwide. The Bluetooth devices
communicate within a certain distance and do not need to be
in line of sight.
The QLINK is a Class 2 Bluetooth V2.1+EDR device. The
QLINK is only compatible with Bluetooth devices that support
A2DP. It is recommended that the QLINK be used with
v2.1+EDR Bluetooth devices.
Installation of your ClearSounds® QLINK Bluetooth Stereo
Transmitter is easy.
If at any time you have questions about your QLINK after
reading this manual, please contact our ClearSounds®
Customer Service Department at 1-800-965-9043.
█

PARTS CHECKLIST

Check the contents of the box - The QLINK should contain:
QLINK Transmitter, AC Charger, RCA Cable & User Manual
█

CHARGING THE QLINK

Before using your QLINK for the first time, you need to
charge its self-contained Li-Polymer battery for 3 hours.
Using the AC Power Supply
1. Connect the USB cable into the charging port of the
QLINK then connect the other end into a standard AC wall
outlet. When you plug the QLINK into the charger, the red
light will go on.
2. The QLINK is fully charged when the red light goes
out. After a full charge, remove the charger from the wall
outlet and detach the USB cable from the unit.
NOTE: DURING CHARGING, YOU CAN CONTINUE TO
USE THE QLINK.
When your QLINK is low on power, the red light will begin to
flash until it is plugged into the charger or has no power. The
QLINK will turn off automatically once power is drained.
Simply charge the unit by following the instructions above.
Intermittent sound may also be an indication of a low
battery.
█

PAIRING THE QLINK WITH THE QUATTRO

Execute this step immediately after charging the unit for
the first time.
1.Make sure the QLINK is fully charged and is turned OFF.
2.Make sure your QUATTRO is fully charged and is turned
OFF. Place your QUATTRO within 2-3 feet of the QLINK.
3.Press the On/Off Multi Function Button on the QLINK until
you see the Blue light and the Red light flashing at the
same time. This indicates the QLINK is in pairing mode.
4.Press the Multi Function Button on your QUATTRO and
hold for approx. 6 seconds until you see the Blue light and
the Red light flashing at the same time. This indicates the
QUATTRO is in pairing mode. (Refer to your QUATTRO
manual for additional pairing instructions.)
5.The QLINK will automatically search for the QUATTRO.
When the QLINK pairs successfully with the QUATTRO,
the Blue light on the QLINK will flash 5 times rapidly. Your
QUATTRO Blue light will also flash and you will hear a
beep.
6.Once the QLINK is paired to your QUATTRO, you can plug
the QLINK into the audio device such as your TV or MP3
player. See 'Connecting the QLINK' instructions below.
7.If pairing does not occur as expected, turn off both the
QLINK and the QUATTRO. Wait 10 seconds and repeat
the process.
Please Note: The QLINK can also pair to other Bluetooth
Compatible Headsets. Follow pairing instructions in
your headset operating manual.
